🔧 Tucson - Alternator Replacement

Replacing the alternator on your Tucson involves removing the serpentine belt, disconnecting the battery and alternator wiring, then unbolting the alternator from the engine. The alternator charges the battery while the engine runs, so a failing one can cause battery warning lights, dim lights, stalling, or a no-start condition.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching alternator wiring to prevent sparks or electrical shorts.
• ⚠️ Let the engine cool fully before working near the exhaust side and accessory drive area.
• ⚠️ Keep fingers clear of the belt tensioner. It is spring-loaded and can snap back quickly.
• ⚠️ If lifting the front of your Tucson for access, support it with jack stands. Never rely on a floor jack alone.
• ⚠️ Your Tucson uses an electronically controlled charging system. Do not test the alternator by disconnecting the battery while the engine is running.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 17mm wrench
• 3/8-inch drive ratchet
• 3/8-inch drive extension set
• Breaker bar 3/8-inch drive
• Serpentine belt tool (specialty)
• Flathead screwdriver
• Trim clip removal tool
• Torque wrench 3/8-inch drive
• Digital multimeter
• Floor jack rated 2-ton minimum
• Jack stands rated 2-ton minimum
• Wheel chocks
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator electrical terminal nut - Qty: 1

---

📋 Before You Begin

• 🅿️ Park your Tucson on level ground, shift to Park, and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels before lifting the front.
• 🔋 Open the hood and disconnect the negative battery cable using a 10mm socket.
• 🔎 Take a photo of the serpentine belt routing before removal. This helps you reinstall the belt correctly.
• 📘 A serpentine belt is the long rubber belt that drives accessories like the alternator, A/C compressor, and power steering system.
• 📘 A belt tensioner is a spring-loaded arm that keeps the belt tight while the engine runs.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Lift the cable off the battery post and tuck it away so it cannot spring back and touch the battery.
• Always disconnect negative first.

Step 2: Raise and Support the Front

• Place wheel chocks behind the rear wheels.
• Use a floor jack rated 2-ton minimum to raise the front of your Tucson at the front center jacking point.
• Place jack stands rated 2-ton minimum under the front side support points.
• Gently lower the vehicle onto the jack stands and lightly shake the vehicle to confirm it is stable.

Step 3: Remove the Lower Splash Shield

• Put on safety glasses before working underneath.
• Use a 10mm socket to remove the splash shield bolts under the front of the engine.
• Use a trim clip removal tool to remove any plastic push clips.
• Set the shield and fasteners aside in order.

Step 4: Locate the Belt Tensioner

• Look at the passenger side of the engine where the belt runs around the pulleys.
• Use a flashlight if needed to identify the spring-loaded belt tensioner arm.
• If the belt routing sticker is missing, use your phone photo from the preparation step.

Step 5: Remove the Serpentine Belt

• Install the serpentine belt tool or 17mm wrench onto the belt tensioner hex.
• Rotate the tensioner to release belt tension.
• Slide the belt off the alternator pulley first.
• Slowly release the tensioner back to its resting position. Do not let it snap back.
• Remove the belt from the remaining pulleys.
• Move slowly near the tensioner.

Step 6: Disconnect Alternator Wiring

• Use a flathead screwdriver gently to lift the locking tab on the small alternator electrical connector.
• Pull the connector straight off. Do not yank on the wires.
• Open the rubber cover on the large alternator output terminal.
• Use a 12mm socket to remove the terminal nut.
• Lift the cable off the alternator stud and move it aside.

Step 7: Remove the Alternator Mounting Bolts

• Use a 14mm socket, 3/8-inch drive ratchet, and 3/8-inch drive extension to remove the upper alternator mounting bolt.
• Use a 14mm socket and breaker bar 3/8-inch drive to loosen the lower alternator mounting bolt.
• Support the alternator with one hand while removing the last bolt.
• The alternator is heavier than it looks, so keep a firm grip.

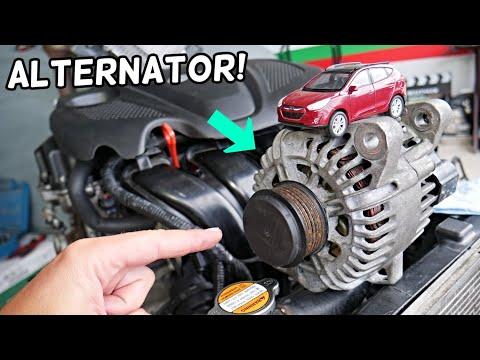

Step 8: Remove the Alternator from the Engine Bay

• Wiggle the alternator gently by hand to free it from the mounting bracket.
• If it is stuck, use a flathead screwdriver carefully as a light pry tool at the mounting ear only.
• Lift the alternator out through the best opening near the passenger side of the engine bay.
• Do not pry against the aluminum engine cover, wiring, or plastic connectors.

Step 9: Compare the New Alternator

• Place the old and new alternator side by side.
• Check that the pulley, electrical connector, output stud, and mounting ears match.
• Spin the new pulley by hand. It should rotate smoothly without grinding.

Step 10: Install the New Alternator

• Position the new alternator into the mounting bracket by hand.
• Start the lower mounting bolt by hand first to avoid cross-threading.
• Start the upper mounting bolt by hand next.
• Use a 14mm socket and torque wrench 3/8-inch drive to tighten the alternator mounting bolts to Torque to 45 Nm (33 ft-lbs).

Step 11: Reconnect Alternator Wiring

• Place the large output cable onto the alternator stud.
• Install the terminal nut using a 12mm socket.
• Tighten the output terminal nut to Torque to 10 Nm (89 in-lbs).
• Close the rubber protective cover over the terminal.
• Push the small electrical connector onto the alternator until it clicks.

Step 12: Install the New Serpentine Belt

• Route the new serpentine belt around the pulleys according to your belt routing photo.
• Leave the alternator pulley for last because it is easy to reach.
• Use the serpentine belt tool or 17mm wrench to rotate the tensioner and create slack.
• Slide the belt over the alternator pulley.
• Slowly release the tensioner.
• Check that the belt ribs sit fully in each pulley groove.
• One rib off can shred the belt.

Step 13: Reinstall the Lower Splash Shield

• Raise the splash shield into position by hand.
• Install the plastic clips using a trim clip removal tool by pressing them into place.
• Use a 10mm socket to reinstall the splash shield bolts.
• Tighten the small splash shield bolts snugly to Torque to 7 Nm (62 in-lbs).

Step 14: Lower the Vehicle

• Use the floor jack rated 2-ton minimum to lift the front slightly off the jack stands.
• Remove the jack stands rated 2-ton minimum.
• Lower your Tucson slowly to the ground.

Step 15: Reconnect the Battery

• Place the negative battery cable back onto the battery post.
• Use a 10mm socket to tighten the terminal clamp.
• Tighten the battery terminal clamp to Torque to 5 Nm (44 in-lbs).
• Do not overtighten. Battery terminals can crack.

Step 16: Test Charging Voltage

• Set the digital multimeter to DC volts.
• Touch the red meter lead to the positive battery post and the black lead to the negative battery post.
• With the engine off, a healthy charged battery should read around 12.4-12.7 volts.
• Start the engine and test again at the battery posts.
• With the engine running, charging voltage should typically read about 13.5-14.8 volts.

---

✅ After Repair

• ✅ Start the engine and make sure the battery warning light turns off.
• ✅ Listen for belt squeal, chirping, or grinding noises near the alternator.
• ✅ Turn on headlights, blower fan, rear defogger, and radio, then recheck charging voltage with the digital multimeter.
• ✅ Recheck the serpentine belt alignment after the engine has run for one minute.
• ✅ Reset the clock and radio presets if they were lost after disconnecting the battery.
• ✅ If the battery was deeply discharged, fully charge it with a battery charger before relying on the new alternator.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$750 (parts + labor)

DIY Cost: $180-$380 (parts only)

You Save: $270-$370 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
