🔧 Highlander - Alternator Replacement

Your alternator charges the battery and powers the electrical system while the engine runs. If it’s weak or failed, you’ll see warning lights, low voltage, or a dead battery even after a jump.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🔸 Disconnect the negative battery cable first to prevent a short.
• 🔸 Work on a cool engine; the radiator and exhaust area get very hot.
• 🔸 Keep fingers/tools clear of the belt path at all times.
• 🔸 Don’t let the alternator output wire touch ground (it’s direct battery power).

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 10mm wrench
• 14mm box wrench
• 3/8" drive ratchet
• 3/8" drive extension set
• Torque wrench (10–80 ft-lbs range)
• Flat trim tool
• Needle-nose pliers
• Multimeter
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt (recommended if worn/cracked) - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park your Highlander on level ground and set the parking brake.
• Open the hood and remove any loose jewelry (rings can cause shorts).
• If you’re reusing the belt, take a clear photo of the belt routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm wrench to loosen the negative (-) battery terminal clamp.
• Lift the cable off and move it aside so it cannot spring back onto the post.

Step 2: Remove the engine appearance cover (if equipped)

• Pull up gently to release the cover’s grommets (it’s held by rubber mounts).
• Use a flat trim tool if a corner is stubborn. Lift straight up; don’t twist.

Step 3: Remove the air intake ducting for access

• Use a 10mm socket and 3/8" ratchet to loosen the intake hose clamps.
• Unclip any air duct retainers using a flat trim tool.
• Move the duct/air box pieces out of the way enough to reach the alternator area.

Step 4: Release belt tension and remove the belt from the alternator

• Use a 14mm box wrench on the belt tensioner bolt head and rotate to relieve tension.
• The tensioner is a spring-loaded pulley that keeps the belt tight.
• Slip the belt off the alternator pulley first, then slowly let the tensioner return.

Step 5: Disconnect alternator electrical connections

• Unplug the alternator connector by pressing the tab and pulling straight off (use needle-nose pliers only if needed).
• Remove the rubber boot from the alternator B+ terminal.
• Use a 12mm socket to remove the B+ terminal nut and lift the wire off.
• On reassembly: Torque to 9 Nm (80 in-lbs) on the B+ terminal nut.

Step 6: Remove the alternator mounting bolts

• Use a 14mm socket, 3/8" ratchet, and 3/8" extensions to remove the alternator mounting bolts.
• Support the alternator with one hand as the last bolt comes out.
• On reassembly: Torque alternator mounting bolts to 43 Nm (32 ft-lbs).

Step 7: Remove the alternator from the engine bay

• Wiggle the alternator out carefully; rotate it as needed to clear hoses and brackets.
• Use a flat trim tool to gently move wiring looms aside (do not pry on connectors).

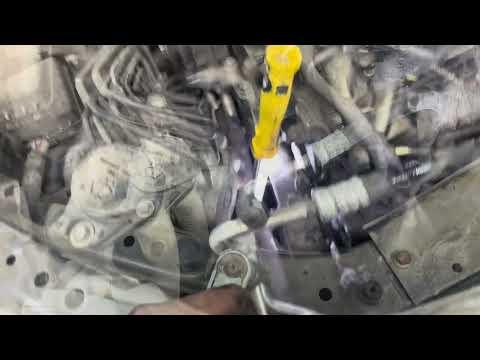

Step 8: Install the new alternator

• Position the new alternator into place by hand.
• Start all mounting bolts by hand first to avoid cross-threading.
• Use a 14mm socket to tighten, then use a torque wrench: Torque to 43 Nm (32 ft-lbs).

Step 9: Reconnect wiring and reinstall the belt

• Install the B+ cable and nut using a 12mm socket: Torque to 9 Nm (80 in-lbs).
• Add a small amount of dielectric grease to the connector seal, then reconnect the plug until it clicks.
• Route the belt correctly, then use the 14mm box wrench to rotate the tensioner and slip the belt onto the alternator pulley.
• Double-check the belt is seated fully in every pulley groove.

Step 10: Reinstall intake pieces and reconnect the battery

• Reinstall the intake ducting and clamps using a 10mm socket.
• Reconnect the negative battery terminal using a 10mm wrench.

---

✅ After Repair

• Start the engine and listen for belt squeal or rubbing.
• Use a multimeter at the battery: running voltage should typically be about 13.5–14.7V.
• Recheck the belt seating after a short 5–10 minute drive.
• If the battery light stays on, recheck the alternator connector and B+ nut tightness.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $220-$450 (parts only)

You Save: $430-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
