🔧 Corolla - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. On your Corolla, it’s belt-driven, so the job is mostly removing the serpentine belt, unplugging the wiring, and unbolting the alternator.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🔋 Disconnect the negative battery cable first to prevent a short at the alternator B+ terminal.
• 🧤 Let the engine cool; you’ll work near hot metal and the radiator area.
• 🧍 Use jack stands if you lift the car; never rely on a floor jack alone.
• ⚡ Do not allow tools to touch the alternator B+ terminal and metal at the same time.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive extension set (3" and 6")
• 10mm socket
• 12mm socket
• 14mm socket
• 10mm box wrench
• 12mm box wrench
• 14mm box wrench
• Serpentine belt tool or long-handled 14mm box wrench
• Flathead screwdriver
• Trim clip removal tool
• Torque wrench (10-150 ft-lbs)
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 Recommended if belt is cracked
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and install a fender cover to protect paint.
• If you’ll lift the front, loosen the right-front wheel lug nuts slightly before jacking.
• Tip: Take a photo of the belt routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (-) battery terminal clamp.
• Lift the cable off and tuck it aside so it cannot spring back onto the battery post.

Step 2: Get access to the alternator

• If needed for working room, remove the plastic engine cover (if equipped) by pulling upward by hand.
• If you prefer access from the wheel well: raise the front with a floor jack (rated 3-ton minimum), support with jack stands (rated 3-ton minimum), then remove the right-front wheel using the correct lug socket and breaker bar.
• Remove the right-front splash shield clips using a trim clip removal tool and flathead screwdriver.
• When reinstalling the wheel later: Torque to 103 Nm (76 ft-lbs).

Step 3: Release serpentine belt tension

• Locate the belt tensioner (spring-loaded arm with a pulley).
• Use a serpentine belt tool or long-handled 14mm box wrench on the tensioner hex/bolt head and rotate to relieve tension.
• Slip the belt off the alternator pulley, then slowly release the tensioner.
• Tip: Don’t let the tensioner snap back.

Step 4: Disconnect alternator electrical connections

• Unplug the alternator control connector by pressing the lock tab and pulling straight out. Use a flathead screwdriver gently if the tab is stuck.
• Remove the rubber boot on the B+ stud.
• Remove the B+ retaining nut using a 10mm socket or 12mm socket (use the one that fits), then lift off the cable.
• Move the wiring aside so it won’t get pinched during removal.

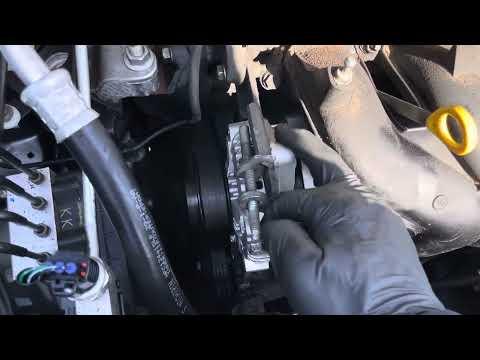

Step 5: Unbolt and remove the alternator

• Remove the alternator mounting bolts using a 12mm socket and/or 14mm socket (bolt heads can vary by alternator/bracket version).
• Support the alternator with one hand as you remove the last bolt.
• Work the alternator out of the engine bay (you may need to rotate it to clear the bracket).

Step 6: Install the new alternator

• Set the new alternator into position and hand-start all mounting bolts to avoid cross-threading.
• Tighten the alternator mounting bolts with a 12mm socket / 14mm socket.
• Torque: Toyota uses specific torque values for these bolts depending on the exact bracket/bolt location; torque to the Corolla factory specification for your mounting bolt positions.

Step 7: Reconnect alternator wiring

• Install the B+ cable and nut using a 10mm socket or 12mm socket (whichever fits).
• Torque: Torque to the Corolla factory specification for the B+ terminal nut to avoid damaging the stud.
• Reinstall the rubber boot over the B+ terminal.
• Apply a small amount of dielectric grease to the connector seal, then plug the control connector back in until it clicks.

Step 8: Reinstall the serpentine belt

• Route the belt according to the under-hood routing sticker (or your photo).
• Use a serpentine belt tool or long-handled 14mm box wrench to rotate the tensioner and slide the belt onto the alternator pulley.
• Slowly release the tensioner and visually confirm the belt is fully seated on every pulley groove.

Step 9: Reassemble and reconnect the battery

• Reinstall any splash shields using the trim clip removal tool and flathead screwdriver.
• Reinstall the wheel (if removed) and lower the car from the jack stands (rated 3-ton minimum).
• Use a torque wrench (10-150 ft-lbs) to tighten lug nuts: Torque to 103 Nm (76 ft-lbs).
• Reconnect the negative (-) battery terminal using a 10mm socket snugly (do not overtighten the clamp).

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light is off.
• Listen for belt squeal or chirping; if present, shut off and re-check belt alignment.
• If you have a multimeter: with the engine idling, check battery voltage; charging should typically be around the mid-13V to mid-14V range.
• Recheck for any loose connectors and ensure the B+ boot is covering the terminal.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
