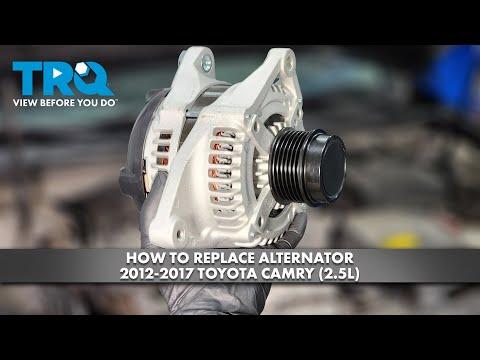

🔧 Camry - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. Replacing it on your Camry involves disconnecting the battery, removing the drive belt, unbolting the alternator, and reinstalling everything with correct torque.

Difficulty Level: Intermediate | Estimated Time: 1.5–3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Disconnect the negative battery cable first to prevent a short at the alternator B+ terminal.
• 🧤 Let the engine cool; the radiator and engine parts can burn you.
• 🧱 If you work from underneath, support the car with jack stands (never rely on a jack alone).
• ⚡ Do not allow tools to touch the alternator B+ stud and metal at the same time.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–80 ft-lbs range)
• 3/8" drive extension set (3" and 6")
• Serpentine belt tool or 14mm long-handled wrench
• Flat trim tool
• Needle-nose pliers
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves
• Digital multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1 (recommended if belt is worn/cracked)
• Battery terminal anti-corrosion washers - Qty: 1 set (optional)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Install wheel chocks behind the rear wheels.
• Open the hood and remove any loose jewelry (rings/watches) before working near the alternator power cable.
• If you plan to go underneath, raise the front with a floor jack and support with jack stands at the proper lift points.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (-) battery terminal clamp.
• Lift the negative cable off and tuck it aside so it can’t spring back to the post.

Step 2: Make room to access the alternator

• If equipped, remove the top engine cover by pulling it up (use a flat trim tool if it’s stubborn).
• Locate the alternator at the front/side of the engine (it has a pulley and electrical connections).

Step 3: Release tension and remove the serpentine belt

• Take a quick photo of belt routing.
• Use a serpentine belt tool or 14mm long-handled wrench on the belt tensioner bolt and rotate to relieve belt tension.
• Slide the belt off the alternator pulley, then carefully release the tensioner back to rest.
• Serpentine belt = the single belt that drives multiple engine accessories.

Step 4: Disconnect alternator electrical connections

• Unplug the alternator connector by pressing the tab (use needle-nose pliers gently if needed—don’t break the tab).
• Remove the rubber boot from the alternator B+ terminal.
• Use a 10mm socket to remove the B+ terminal nut and lift the cable off.
• Torque to 9.8 Nm (87 in-lbs) when reinstalling the B+ terminal nut.

Step 5: Unbolt and remove the alternator

• Use a 14mm socket, ratchet, and extensions to remove the alternator mounting bolts.
• If the alternator feels stuck after bolts are out, wiggle it by hand; do not pry hard on aluminum brackets.
• Lift the alternator out from the top (you may need to rotate it slightly to clear hoses).
• Torque to 43 Nm (32 ft-lbs) for alternator mounting bolts during installation.

Step 6: Install the new alternator

• Set the new alternator into position by hand and start the mounting bolts by hand first (prevents cross-threading).
• Use a 14mm socket and ratchet to snug the bolts, then use a torque wrench: Torque to 43 Nm (32 ft-lbs).

Step 7: Reconnect electrical connections

• Install the B+ cable onto the stud and tighten the nut with a 10mm socket: Torque to 9.8 Nm (87 in-lbs).
• Reinstall the rubber boot over the B+ terminal.
• Plug in the alternator electrical connector until it clicks.

Step 8: Reinstall the serpentine belt

• Route the belt according to your photo (or the under-hood belt diagram if present).
• Use a serpentine belt tool or 14mm long-handled wrench to rotate the tensioner and slip the belt over the alternator pulley.
• Slowly release the tensioner.
• Visually confirm the belt sits fully in every pulley groove.

Step 9: Reconnect the battery and reassemble

• Reinstall the engine cover (if removed).
• Reconnect the negative (-) battery terminal using a 10mm socket and tighten securely (snug, do not overtighten).

---

✅ After Repair

• Start the engine and verify there are no warning lights related to charging.
• Use a digital multimeter at the battery posts:
  • Engine off: about 12.4–12.7V (typical healthy battery).
  • Engine running: typically about 13.5–14.8V (alternator charging).
• Listen for belt squeal; if you hear it, re-check belt routing and that it’s fully seated.
• Reset the clock/radio presets if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $450–$900 (parts + labor)

DIY Cost: $150–$450 (parts only)

You Save: $300–$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5–3.0 hours.

---
