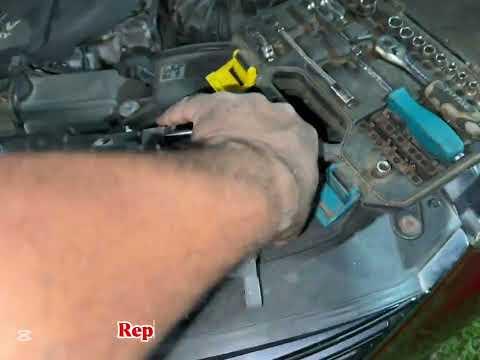

🔧 CX-5 - Alternator Replacement

The alternator charges the battery and powers your CX-5’s electrical system while the engine runs. Replacing it means removing the drive belt, unplugging the wiring, unbolting the alternator, and installing the new unit.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short at the alternator’s power stud.
• ⚠️ Work on a cold engine; the exhaust and engine parts can burn you.
• ⚠️ Support the vehicle securely if you go underneath (never rely on a jack alone).
• ⚠️ Keep fingers/tools clear of the belt path; the tensioner can snap back quickly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm box-end wrench
• 3/8" drive ratchet
• 3/8" drive extension set
• Torque wrench (10–100 Nm range)
• Flat trim clip tool
• Phillips screwdriver
• Flashlight
• Multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Battery terminal protectant spray - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, select neutral, and apply the parking brake.
• Chock the rear wheels using wheel chocks.
• Open the hood and remove the key from the area.
• Disconnect the battery: use a 10mm socket to remove the negative terminal (black). Tuck it aside so it can’t spring back.
• If you’re replacing the belt, take a quick photo of the belt routing (or sketch it).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the intake snorkel/ducting (access)

• Use a Phillips screwdriver and 10mm socket to loosen clamps/bolts on the air inlet ducting near the front/upper area as needed for access.
• Use a flat trim clip tool to pop any plastic clips without breaking them. Pry near the clip center pin.
• Move the ducting aside so you can clearly see the alternator and belt.

Step 2: Relieve belt tension and remove the serpentine belt

• Locate the belt tensioner (spring-loaded arm with a pulley).
• Use a 17mm box-end wrench on the tensioner hex and rotate to relieve tension (spring force).
• While holding tension off, slide the belt off the alternator pulley, then slowly release the tensioner.
• Remove the belt from the remaining pulleys if you’re replacing it.
• Go slow—tensioner snap-back can hurt.

Step 3: Disconnect alternator electrical connections

• Unplug the alternator’s control connector by pressing the lock tab and pulling straight out by hand.
• Remove the rubber boot from the alternator B+ terminal (main power stud).
• Use a 10mm socket to remove the B+ terminal nut and lift the cable off the stud.
• Apply a tiny amount of dielectric grease to the connector seal (not the metal pins) before reassembly.
• Torque to 9–12 Nm (80–105 in-lbs) for the B+ terminal nut.

Step 4: Unbolt and remove the alternator

• Support the alternator with one hand as you remove bolts so it doesn’t drop.
• Use a 14mm socket with a 3/8" drive ratchet and extension to remove the alternator mounting bolts.
• Lift the alternator out from the top if space allows; if tight, you may need to reposition the intake ducting more.
• Torque to 35–45 Nm (26–33 ft-lbs) for the alternator mounting bolts.

Step 5: Install the new alternator

• Set the new alternator into position and start the mounting bolts by hand to avoid cross-threading.
• Use a 14mm socket to snug the bolts evenly.
• Use a torque wrench to finish tightening: Torque to 35–45 Nm (26–33 ft-lbs).

Step 6: Reconnect wiring

• Install the B+ cable onto the alternator stud and tighten with a 10mm socket: Torque to 9–12 Nm (80–105 in-lbs).
• Reinstall the rubber boot fully over the stud to prevent corrosion/shorting.
• Plug the alternator connector back in until it clicks.

Step 7: Reinstall/route the belt and set tension

• Route the belt around all pulleys except the alternator pulley, following your photo/sketch.
• Use a 17mm box-end wrench to rotate the tensioner, slip the belt onto the alternator pulley, then slowly release the tensioner.
• Visually confirm the belt ribs are fully seated in every pulley groove (no half-on/half-off).

Step 8: Reinstall intake ducting and reconnect the battery

• Reinstall the intake ducting and any clips using the Phillips screwdriver, flat trim clip tool, and 10mm socket.
• Reconnect the negative battery terminal using a 10mm socket.
• Apply battery terminal protectant spray to help prevent corrosion.

---

✅ After Repair

• Start the engine and listen: there should be no belt squeal or slapping.
• Use a multimeter at the battery terminals:
  • Engine OFF: typically ~12.4–12.7V (healthy battery)
  • Engine ON (idle): typically ~13.5–14.7V (charging)
• Check that the battery/charging warning light stays OFF.
• Recheck belt seating after a short 5–10 minute drive (engine off, key out).

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,050 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
