🔧 Tucson - Alternator Replacement

Replacing the alternator on your Tucson means disconnecting the battery, removing the drive belt, unbolting the alternator, and swapping it with the new unit. The key is doing it safely (battery power off) and reinstalling everything with the correct belt routing and bolt torque.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative terminal first to prevent short-circuits.
• ⚠️ Let the engine cool; you’ll work near hot parts.
• ⚠️ Support the vehicle on jack stands if you lift it; never rely on a jack alone.
• ⚠️ Keep fingers/tools clear of the belt path while releasing tension.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Socket set (8mm, 10mm, 12mm, 14mm, 17mm)
• Wrench set (10mm, 12mm, 14mm, 17mm)
• Torque wrench (10–150 ft-lbs range)
• Serpentine belt tool or long handle ratchet
• Trim clip remover
• Flathead screwdriver
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1 Recommended while you’re in there
• Battery terminal anti-corrosion pads or spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Write down your radio presets if you use them.
• Disconnect the battery: use a 10mm socket to remove the negative (-) terminal and isolate it so it can’t spring back.
• Quick question (so I give the exact OEM torque specs): can you read the alternator amperage from the label (commonly 110A or 150A)?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Confirm belt routing

• Open the hood and look for the belt routing diagram sticker (usually on the radiator support/underside of hood).
• If no sticker, take a clear photo of the belt path before removal. This prevents misrouting later.

Step 2: Raise the front right (if needed for access)

• Place wheel chocks behind the rear wheels.
• Lift the front with a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• If the splash shield blocks access, remove clips/screws using a trim clip remover and flathead screwdriver.

Step 3: Release serpentine belt tension

• Use a serpentine belt tool or long handle ratchet on the belt tensioner to rotate it and relieve belt tension.
• Slip the belt off the alternator pulley first, then slowly release the tensioner back.
• Go slow—tensioners snap back hard.

Step 4: Disconnect alternator electrical connections

• Unplug the alternator electrical connector by depressing the tab (use a flathead screwdriver gently if stuck).
• Remove the alternator main power cable nut using the correct socket (commonly 12mm), then lift the cable off.
• Move the cable aside so it can’t touch metal.

Step 5: Remove alternator mounting bolts

• Support the alternator with one hand.
• Remove the alternator mounting bolts using the correct socket set (typically 14mm or 17mm) and a ratchet.
• If a bolt is tight, use a breaker bar carefully.

Step 6: Remove the alternator from the engine bay

• Work the alternator out through the best opening (top or lower area depending on what gives you room).
• Use a work light to avoid snagging wiring and hoses.

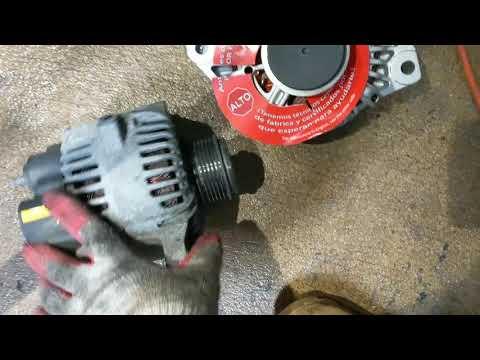

Step 7: Install the new alternator

• Set the new alternator in place and hand-start all mounting bolts to prevent cross-threading.
• Tighten bolts with a ratchet, then final-tighten with a torque wrench.
• Torque: I’ll provide the exact Hyundai torque specs once you confirm alternator amperage (110A vs 150A).

Step 8: Reconnect alternator wiring

• Reinstall the main power cable and nut using the correct socket.
• Plug in the alternator connector until it clicks.
• Torque: I’ll include the exact B+ terminal nut spec with the amperage confirmation.

Step 9: Reinstall serpentine belt

• Route the belt using the diagram/photo.
• Rotate the tensioner with the serpentine belt tool or long handle ratchet and slip the belt over the last pulley.
• Visually confirm the belt is fully seated in every pulley groove.

Step 10: Reassemble and reconnect battery

• Reinstall any splash shield/fasteners using a trim clip remover and flathead screwdriver.
• Lower the vehicle safely.
• Reconnect battery negative terminal using a 10mm socket and apply battery terminal anti-corrosion pads or spray.

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light stays off.
• Listen for belt squeal; if present, shut off and re-check belt seating.
• If you have a multimeter, check charging voltage at the battery with engine running (typically around 13.5–14.8V).
• Recheck for loose tools/connectors and inspect for any rubbing wires.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$950 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
