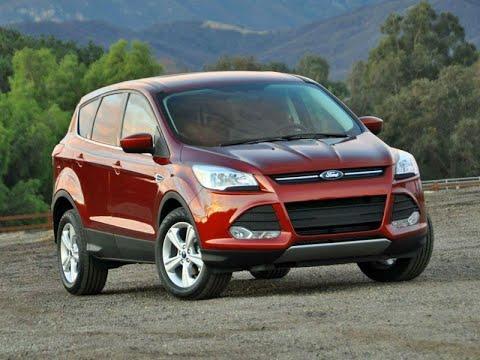

🔧 Escape - Alternator Replacement

The alternator charges your battery and powers the vehicle’s electrical system while the engine runs. On your Escape, access is tight, so you’ll remove a few panels and slip the serpentine belt off to get the alternator out.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery before touching the alternator wiring (the main alternator cable is always “hot”).
• ⚠️ Let the engine cool fully; you’ll be working near hot turbo/engine parts.
• ⚠️ Support the Escape with jack stands—never rely on a floor jack alone.
• ⚠️ Keep fingers clear of the belt/tensioner (spring-loaded).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 1/2" drive breaker bar
• 1/2" drive torque wrench (20–200 ft-lbs range)
• 3/8" drive ratchet
• 3/8" drive torque wrench (in-lb or low ft-lb range)
• Socket set: 8mm, 10mm, 13mm, 15mm, 18mm
• Extension set: 3", 6", 12"
• Universal swivel adapter (3/8")
• Trim clip/push-pin remover tool
• Flat-blade screwdriver
• Pliers
• Flashlight
• Belt tensioner tool or 15mm serpentine belt wrench (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 Recommended if belt is worn.
• Battery terminal anti-corrosion washers or spray - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the rear wheels with wheel chocks.
• Open the hood and make sure the engine is fully cool.
• Plan to take a quick photo of the belt routing sticker (or draw it) before removing the belt.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket and 3/8" ratchet to loosen the negative (-) battery terminal clamp.
• Lift the negative cable off and tuck it aside so it can’t spring back.
• This prevents accidental short circuits.

Step 2: Raise the right-front and remove the wheel

• Use a 1/2" drive breaker bar to loosen the right-front lug nuts slightly (on the ground).
• Lift with the floor jack and support with jack stands under a solid lift point.
• Remove the lug nuts and wheel.
• Reinstall later and Torque to Ford specification (Nm/ft-lbs per service manual).

Step 3: Remove the right-front splash shield (inner fender)

• Use a trim clip/push-pin remover tool and flat-blade screwdriver to remove the plastic clips/screws.
• Peel the shield back to expose the belt/alternator area.

Step 4: Create top-side access (intake duct/cover as needed)

• Use a flat-blade screwdriver (or 8mm socket, depending on clamp style) to loosen intake hose clamps.
• Use pliers for any spring clamps.
• Move the intake ducting/air tube aside for working room.

Step 5: Remove the serpentine belt from the alternator

• From the wheel-well opening, place a 15mm socket on the belt tensioner bolt and turn it to relieve tension.
• Belt tensioner tool or 15mm serpentine belt wrench (specialty) makes this easier in tight space (it’s a long-handled wrench made for belt tensioners).
• Slip the belt off the alternator pulley, then slowly release the tensioner.
• If replacing the belt, remove it completely and keep note of routing.

Step 6: Disconnect alternator electrical connections

• Locate the alternator’s plug connector; release the tab and unplug it by hand (use pliers only gently if stuck).
• Remove the protective cap on the main charging cable (B+).
• Use a 10mm socket and 3/8" ratchet to remove the B+ nut, then lift the cable off.
• Do not let the cable touch metal parts.

Step 7: Remove the alternator mounting bolts

• Use a 13mm socket (and extensions plus universal swivel adapter as needed) to remove the alternator mounting bolts.
• Support the alternator with one hand as the last bolt comes out.
• Set the bolts aside in order so they go back in the same locations.

Step 8: Remove the alternator from the vehicle

• Maneuver the alternator out through the wheel-well opening (most common) or upward if space allows.
• Use a flashlight to watch for snag points on hoses/wiring.

Step 9: Install the new alternator

• Position the new alternator in place by hand.
• Start all mounting bolts by hand first (prevents cross-threading).
• Tighten with a 13mm socket and 3/8" ratchet, then Torque to Ford specification (Nm/ft-lbs per service manual) using a 3/8" drive torque wrench.

Step 10: Reconnect alternator wiring

• Install the B+ cable and nut using a 10mm socket.
• Torque to Ford specification (Nm/ft-lbs per service manual) using a 3/8" drive torque wrench.
• Apply a small amount of dielectric grease to the connector seal (not the metal pin faces), then plug the connector in until it clicks.
• Reinstall the protective cap over the B+ stud.

Step 11: Reinstall the serpentine belt

• Route the belt according to the under-hood diagram.
• Use a 15mm socket to rotate the tensioner, slip the belt over the last pulley (often the alternator), then release slowly.
• Visually check the belt is centered on every pulley groove.

Step 12: Reinstall splash shield and wheel

• Reinstall the splash shield using the trim clip/push-pin remover tool and flat-blade screwdriver (as needed).
• Reinstall the wheel and hand-start lug nuts.
• Lower the Escape and tighten lug nuts in a star pattern.
• Torque to Ford specification (Nm/ft-lbs per service manual) using a 1/2" drive torque wrench.

Step 13: Reconnect the battery

• Reinstall the negative (-) terminal using a 10mm socket.
• Snug it and Torque to Ford specification (Nm/ft-lbs per service manual) using a 3/8" drive torque wrench (low torque).
• Apply battery terminal anti-corrosion protection.

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light is off.
• Listen for belt squeal or slapping; shut off and re-check belt alignment if you hear anything abnormal.
• Turn on headlights + rear defrost and confirm idle remains stable.
• If you have a multimeter, check charging voltage at the battery (typically around 13.5–14.8V while running).

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,050 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
