🔧 Alternator - Replacement

Replacing the alternator on your F-350 restores proper battery charging and prevents stalling, dead-battery no-starts, and low-voltage issues. The job is mostly access, removing the serpentine belt, swapping the alternator, then reconnecting wiring correctly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: 6.2L gasoline with a single alternator.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect both negative battery cables before touching alternator wiring (the main charge wire is always “hot” otherwise).
• ⚠️ Let the engine cool before working near the radiator, belt drive, and pulleys.
• ⚠️ Keep fingers, hair, and clothing away from the belt path and pulleys.
• ⚠️ Support the hood securely and work on level ground.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• 3" extension (3/8" drive)
• 6" extension (3/8" drive)
• Serpentine belt tool (specialty)
• Torque wrench (10–150 ft-lbs range)
• Flat trim tool
• Pick tool
• Digital multimeter
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator electrical terminal nut - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🔧 Open the hood and install a fender cover.
• 🔋 Disconnect both negative battery cables using a 10mm socket, then isolate them so they can’t spring back to the terminals.
• 🧭 Locate the belt routing diagram (usually on the radiator support) or take a clear photo before removing the belt.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove any intake ducting (if equipped)

• Use a flat trim tool to release any plastic clips holding the intake snorkel/duct.
• Use an 8mm socket or flat screwdriver (whichever your clamps use) to loosen hose clamps, then lift the duct out of the way.
• Take a photo for reassembly.

Step 2: Relieve serpentine belt tension

• Install a 1/2" drive breaker bar (or serpentine belt tool (specialty)) on the belt tensioner.
• Rotate the tensioner to relieve tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to its resting position.
• Do not let the tensioner snap back.

Step 3: Disconnect alternator electrical connectors

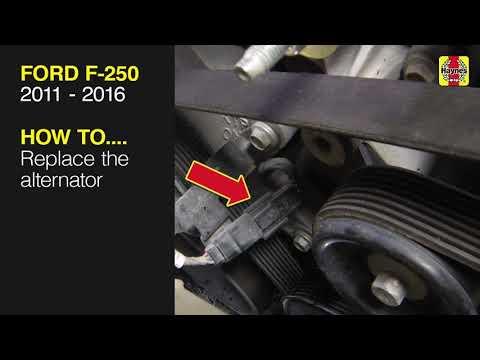

• Unplug the alternator regulator connector by releasing the lock tab using a pick tool if needed.
• Remove the protective cap over the main B+ terminal (charge post).
• Use a 13mm socket to remove the B+ terminal nut, then lift the cable off and move it aside.
• Keep the nut/cap together so nothing gets lost.

Step 4: Remove the alternator mounting bolts

• Support the alternator with one hand.
• Use a 13mm socket with a 3/8" ratchet and extensions to remove the alternator mounting bolts.
• Lift the alternator out of the bracket and out of the engine bay.

Step 5: Install the new alternator

• Set the new alternator into position in the bracket.
• Start all mounting bolts by hand to avoid cross-threading.
• Tighten the mounting bolts evenly using a 13mm socket.
• Final-tighten with a torque wrench: Torque to 40 Nm (30 ft-lbs).
• If a bolt feels “gritty,” stop and re-thread.

Step 6: Reconnect alternator wiring

• Install the main B+ cable onto the alternator charge post.
• Install and tighten the terminal nut using a 13mm socket, then torque with a torque wrench: Torque to 15 Nm (11 ft-lbs).
• Reinstall the protective cap over the B+ terminal.
• Plug in the regulator connector until it clicks.

Step 7: Reinstall the serpentine belt

• Route the belt exactly per the under-hood routing diagram.
• Use the 1/2" breaker bar (or serpentine belt tool (specialty)) to rotate the tensioner and slip the belt back onto the alternator pulley.
• Release the tensioner slowly.
• Visually confirm the belt is fully seated in every pulley groove.

Step 8: Reinstall intake ducting and reconnect batteries

• Reinstall any intake ducting and tighten clamps using the same tool you removed them with.
• Reconnect both negative battery cables using a 10mm socket and snug them securely.

---

✅ After Repair

• 🔍 Start the engine and confirm the battery/charging warning light stays off.
• 📏 Use a digital multimeter at the battery terminals: you should typically see about 13.5–14.7 volts with the engine running.
• 👂 Listen for belt squeal; if present, re-check belt routing and pulley seating.
• 🧪 If you replaced the belt, recheck belt condition/tensioner operation after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,150 (parts + labor)

DIY Cost: $220-$550 (parts only)

You Save: $430-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
