🔧 F-250 Super Duty - Alternator Replacement

The alternator charges the battery and powers the truck’s electrical system while the engine runs. Replacing it is mostly an “access + belt + bolts + wiring” job, but you must disconnect the battery to avoid a dangerous short at the alternator’s main power stud.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect both negative battery cables first (dual-battery style is common) before touching the alternator wiring.
• ⚠️ Keep tools off the alternator “B+” stud (main power post). It is unfused on many trucks and can arc badly.
• ⚠️ Let the engine cool; the radiator, fan area, and belt drive can burn you.
• ⚠️ Keep hands and clothing clear of the belt path; never test-run with tools left in the engine bay.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 1/2" drive ratchet
• 3/8" drive ratchet
• 3/8" drive extension set
• Serpentine belt tool, 1/2" drive (specialty)
• 10mm socket
• 13mm socket
• 15mm socket
• Torque wrench (10–100 ft-lbs range)
• Trim clip remover
• Flathead screwdriver
• Needle-nose pliers
• Digital multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (recommended if belt shows cracks/glazing)
• Dielectric grease - Qty: 1 (small packet)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove any loose items from the engine bay.
• Disconnect the battery: use a 10mm socket to remove the negative cable(s) first, then isolate them so they can’t spring back.
• A serpentine belt is the single long belt up front.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Assumption: Stock 6.2L accessory drive layout (no aftermarket brackets/winch wiring on alternator).

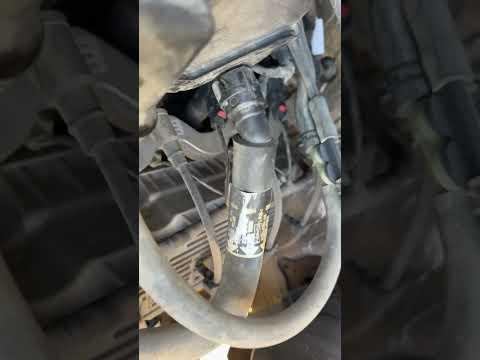

Step 1: Remove the intake duct (for access)

• Use a flathead screwdriver to loosen the hose clamps on the intake duct.
• Unclip/remove any small breather tube(s) using needle-nose pliers if clamps are present.
• Lift the duct out of the way. Use a trim clip remover if any push-clips are used on your truck.

Step 2: Take a quick belt-routing reference

• Use your phone to take a clear picture of the belt routing before removal.
• If there’s a belt-routing sticker on the fan shroud, reference it.

Step 3: Release serpentine belt tension

• Install the serpentine belt tool, 1/2" drive (specialty) (or a 1/2" drive ratchet) into the belt tensioner square hole.
• Rotate the tensioner to relieve tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to rest (don’t let it snap).
• Only remove belt from one pulley if reusing.

Step 4: Disconnect alternator electrical connectors

• Unplug the alternator regulator connector by pressing the lock tab and pulling straight off.
• Remove the rubber protective boot from the alternator main power stud (B+).
• Use a 13mm socket to remove the B+ cable nut, then lift the cable off the stud.
• Move the cable aside so it cannot touch metal.
• Torque note for install: Torque B+ nut to 10 Nm (89 in-lbs)

Step 5: Remove the alternator mounting bolts

• Use a 15mm socket with a 3/8" drive ratchet and extension as needed to remove the alternator mounting bolts.
• Support the alternator with one hand as the last bolt comes out.
• Lift the alternator out of the bracket and out of the engine bay.
• Torque note for install: Torque alternator mounting bolts to 41 Nm (30 ft-lbs)

Step 6: Compare the new alternator to the old one

• Make sure the mounting ears match and the electrical connector is the same.
• Check pulley alignment and diameter visually.
• If your old alternator has any heat shield/bracket, transfer it using the same socket you removed it with.

Step 7: Install the new alternator

• Set the alternator into place and start all mounting bolts by hand to avoid cross-threading.
• Use a 15mm socket to snug the bolts evenly.
• Use a torque wrench and 15mm socket: Torque alternator mounting bolts to 41 Nm (30 ft-lbs).

Step 8: Reconnect alternator wiring

• Place the B+ cable onto the stud, install the nut using a 13mm socket, then torque to 10 Nm (89 in-lbs).
• Reinstall the rubber boot fully over the B+ stud.
• Add a tiny amount of dielectric grease to the regulator connector seal, then plug it in until it clicks.

Step 9: Reinstall the serpentine belt

• Route the belt using your photo/sticker as a guide.
• Use the serpentine belt tool, 1/2" drive (specialty) to rotate the tensioner and slip the belt onto the alternator pulley last.
• Visually verify the belt is centered in every pulley groove.
• If it’s off one rib, fix it now.

Step 10: Reinstall the intake duct

• Reinstall the duct and any breather tube(s).
• Use a flathead screwdriver to tighten the hose clamps snugly.

Step 11: Reconnect the batteries

• Reconnect the negative battery cable(s) using a 10mm socket.
• Make sure the terminals are fully seated and tight.

---

✅ After Repair

• Start the engine and listen for belt squeal or slapping; shut off immediately if you hear it and re-check belt alignment.
• Use a digital multimeter at the battery terminals: charging voltage should typically be about 13.5–14.8V with the engine running.
• Turn on headlights and blower motor; verify voltage stays steady and no battery light appears.
• Recheck the B+ boot is fully covering the stud.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
