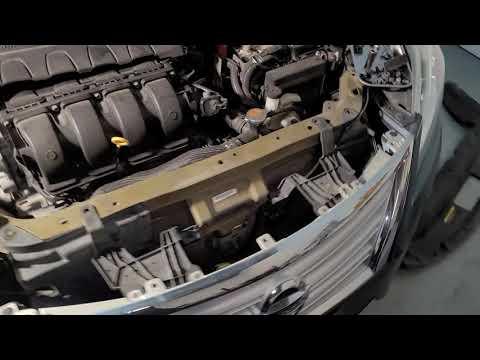

🔧 Sentra - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine is running. On your Sentra, replacement involves removing the drive belt, unplugging the alternator wiring, and swapping the unit with careful attention to routing and electrical connections.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching alternator wiring (prevents short circuits).
• ⚠️ Keep hands/tools away from the belt path; the tensioner is spring-loaded.
• ⚠️ Work on a cool engine; alternators sit near hot components.
• ⚠️ Support the car with jack stands if you go underneath—never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 ft-lbs range)
• 6" extension (3/8" drive)
• 10mm socket
• 12mm socket
• 14mm socket
• 14mm wrench
• Flat trim clip tool
• Serpentine belt tool (specialty)
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Battery terminal protector spray - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🧱 Chock the rear wheels using wheel chocks.
• 🔌 Open the hood and disconnect the battery negative terminal using a 10mm socket. Move the cable aside so it can’t spring back.
• 📝 Take a quick photo of the belt routing (or sketch it). This prevents misrouting later.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front (for access)

• Lift the front of your Sentra with a floor jack (rated 2-ton minimum).
• Set it securely on jack stands (rated 2-ton minimum) at the factory lift points.

Step 2: Remove the lower splash shield (if equipped)

• Use a flat trim clip tool to pop out plastic clips.
• Remove any small bolts using a 10mm socket.
• Set the shield and hardware aside in order. Lay bolts in a pattern.

Step 3: Relieve tension and remove the drive belt

• Place a serpentine belt tool (specialty) or 14mm socket on the belt tensioner hex.
• Rotate the tensioner to relieve belt tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to its resting position (don’t let it snap).

Step 4: Disconnect alternator electrical connections

• On the back of the alternator, unplug the small connector by pressing the tab and pulling straight back.
• Remove the nut holding the main charging cable (B+ terminal) using a 12mm socket, then lift the cable off.
• Reinstall the nut a few turns onto the stud so you don’t lose it.
• Torque (B+ terminal nut): 7.5 N·m (66 in-lbs)

Step 5: Remove the alternator mounting bolts

• Support the alternator with one hand.
• Remove the alternator mounting bolts using a 14mm socket and 6" extension (3/8" drive).
• If it feels stuck, gently wiggle the alternator in the bracket while pulling outward. Don’t pry on plastic connectors.

Step 6: Remove the alternator from the engine bay

• Maneuver the alternator out from the top or bottom (whichever has clearer space).
• Use a flashlight to avoid snagging wiring looms and hoses.

Step 7: Install the new alternator

• Position the new alternator into the bracket.
• Start all mounting bolts by hand to prevent cross-threading.
• Tighten mounting bolts using a 14mm socket, then final tighten with a 3/8" drive torque wrench.
• Torque (alternator mounting bolts): 44 N·m (32 ft-lbs)

Step 8: Reconnect alternator wiring

• Install the main charging cable onto the B+ stud and tighten using a 12mm socket.
• Torque (B+ terminal nut): 7.5 N·m (66 in-lbs)
• Plug in the alternator electrical connector until it clicks.
• Optional: Apply battery terminal protector spray after everything is reassembled.

Step 9: Reinstall the drive belt

• Route the belt correctly around all pulleys (use your photo).
• Rotate the tensioner using the serpentine belt tool (specialty) or 14mm socket and slide the belt onto the alternator pulley.
• Release the tensioner slowly and verify the belt is fully seated in every pulley groove.

Step 10: Reinstall splash shield and lower the vehicle

• Reinstall the splash shield using the 10mm socket and push-clips (use the flat trim clip tool as needed).
• Lower the vehicle off the jack stands (rated 2-ton minimum) using the floor jack (rated 2-ton minimum).

Step 11: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Snug it firmly; do not over-tighten the clamp.

---

✅ After Repair

• 🔎 Start the engine and confirm the battery/charging warning light turns off.
• 👂 Listen for belt squeal or slapping; if you hear it, shut off and re-check belt routing and seating.
• ⚡ If you have a multimeter, check charging voltage at the battery: engine running should typically be around 13.5–14.8V.
• 🧼 Recheck that all tools are removed from the engine bay before closing the hood.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $160-$450 (parts only)

You Save: $290-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
