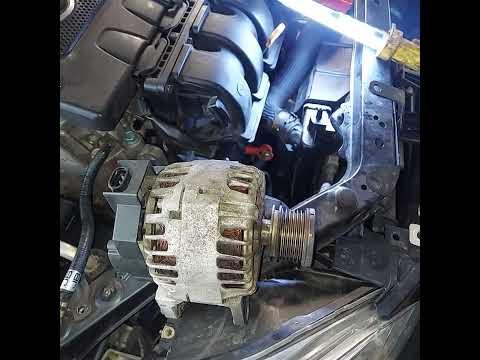

🔧 Sentra - Alternator Replacement

The alternator charges the battery and powers electrical systems while the engine runs. Replacing it involves disconnecting the battery, removing the drive belt, unbolting the alternator, then reinstalling everything and verifying the charging voltage.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

Assumption: Your Sentra uses the 1.8L with a spring-loaded belt tensioner and alternator access through the right wheel well.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent shorts.
• ⚠️ Support the car with jack stands before working in the wheel well.
• ⚠️ Keep fingers/clothes clear of the belt path and pulleys.
• ⚠️ Let the engine cool; the exhaust and radiator area can burn you.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 21mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Socket extension set (3" and 6")
• 10mm socket
• 12mm socket
• 14mm socket
• 14mm wrench
• Serpentine belt tool 14mm (specialty)
• Flat trim clip removal tool
• Torque wrench (10-150 ft-lbs range)
• Small flathead screwdriver
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Alternator electrical terminal nut - Qty: 1
• Fender liner push clips - Qty: 4-8

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and note/photograph the belt routing (or sketch it).
• Disconnect the battery: use a 10mm socket to remove the negative (-) terminal first and move it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Lift the right-front corner and remove the wheel

• Use a 21mm socket and breaker bar to slightly loosen the right-front lug nuts (before lifting).
• Lift with a floor jack at the correct jacking point, then set the car onto jack stands.
• Remove the lug nuts with the 21mm socket and take the wheel off.
• When reinstalling later: Torque to 113 Nm (83 ft-lbs).

Step 2: Remove the right-front inner fender liner (splash shield)

• Use a flat trim clip removal tool to pop out the plastic push-clips.
• Use a 10mm socket to remove any small bolts holding the liner.
• Pull the liner back to access the belt/tensioner/alternator area.
• Tip: Save clips in a cup.

Step 3: Release belt tension and remove the serpentine belt

• Locate the belt tensioner (a spring-loaded arm with a pulley).
• Use a serpentine belt tool 14mm (a long handle made for belt tensioners) or a 14mm wrench on the tensioner hex.
• Rotate the tensioner to relieve tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to its resting position (don’t let it snap).

Step 4: Disconnect the alternator wiring

• On the back of the alternator, remove the rubber boot covering the main power wire.
• Use a 12mm socket to remove the main power cable nut, then lift the cable off the stud.
• Unplug the alternator connector: use a small flathead screwdriver to gently help the locking tab if it’s stuck.
• Tip: Never pull on the wires—pull the connector body.

Step 5: Unbolt and remove the alternator

• Support the alternator with one hand.
• Use a 14mm socket and ratchet with extensions to remove the alternator mounting bolts (typically upper and lower).
• If it’s tight in the bracket, wiggle the alternator free and work it out through the wheel-well opening.
• When reinstalling later: Torque alternator mounting bolts to 44 Nm (32 ft-lbs).

Step 6: Install the new alternator

• Position the new alternator into the bracket the same way the old one came out.
• Start the mounting bolts by hand (this prevents cross-threading).
• Tighten with a 14mm socket, then finish with a torque wrench: Torque to 44 Nm (32 ft-lbs).

Step 7: Reconnect the alternator wiring

• Plug in the alternator electrical connector until it clicks.
• Install the main power cable onto the stud and thread the nut on by hand.
• Use a 12mm socket to tighten the nut: Torque to 9 Nm (80 in-lbs).
• Reinstall the rubber boot over the power terminal.

Step 8: Reinstall the serpentine belt

• Route the belt exactly like your photo/sketch (all ribs must sit in the pulley grooves).
• Use the serpentine belt tool 14mm (specialty) to rotate the tensioner and slip the belt over the alternator pulley last.
• Release the tensioner slowly, then double-check belt alignment on every pulley with a flashlight.

Step 9: Reinstall fender liner and wheel

• Reposition the fender liner and reinstall fasteners using the 10mm socket and trim clip removal tool.
• Install the wheel and hand-thread the lug nuts.
• Lower the car off the jack stands using the floor jack.
• Use a torque wrench and 21mm socket: Torque to 113 Nm (83 ft-lbs).

Step 10: Reconnect the battery

• Reconnect the negative (-) battery terminal using a 10mm socket and tighten snugly.

---

✅ After Repair

• Start the engine and listen: there should be no belt squeal or slapping.
• With the engine idling, confirm the battery/charging voltage is about 13.5–14.7 volts using a multimeter (if available).
• Turn on headlights and blower fan; voltage should stay stable and the belt should run smoothly.
• Recheck that the alternator power cable boot is fully covering the stud.
• Tip: Recheck lug torque after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $150-$450 (parts only)

You Save: $300-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
