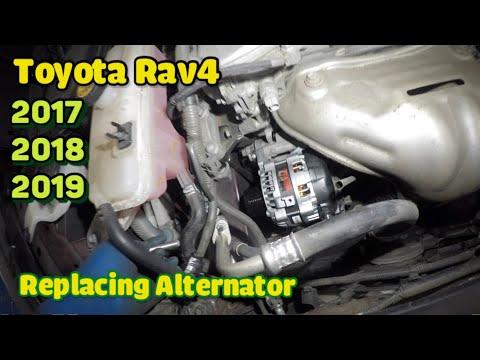

🔧 RAV4 - Alternator Replacement

You’ll remove the old alternator, swap it with a new one, and reinstall the drive belt. This restores proper charging so your battery and electronics work correctly.

Difficulty Level: Intermediate | Estimated Time: 2–3 hours

---

⚠️ Safety & Precautions

• 🛑 Always disconnect the battery negative terminal before working on the alternator to avoid shocks and short circuits.
• 🧯 Keep metal tools away from the battery positive terminal to prevent sparks.
• 🔥 Let the engine cool completely; the engine bay can be very hot.
• 🧤 Support the vehicle properly if you raise it; always use jack stands, never only a jack.
• 🔌 Do not pull on wiring or connectors; press the locking tab and then pull.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🧰 10mm socket
• 🧰 12mm socket
• 🧰 14mm socket
• 🧰 3/8" drive ratchet
• 🧰 3/8" drive extension (3"-6")
• 🧰 1/2" drive ratchet
• 🧰 1/2" drive breaker bar
• 🧰 14mm combination wrench
• 🧰 Serpentine belt tool (specialty)
• 🧰 Flathead screwdriver (medium)
• 🧰 Trim clip remover tool (specialty)
• 🧰 Torque wrench 3/8" drive (5–80 ft-lbs range)
• 🧰 Torque wrench 1/2" drive (20–150 ft-lbs range)
• 🧰 Floor jack (rated 3-ton minimum)
• 🧰 Jack stands (rated 3-ton minimum)
• 🧰 Wheel chocks
• 🧰 Work light or flashlight
• 🧰 Mechanic’s gloves
• 🧰 Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Alternator (2.5L engine, 150A spec) - Qty: 1
• 🔩 Serpentine drive belt - Qty: 1
• 🔩 Battery terminal cleaning kit - Qty: 1
• 🔩 Dielectric grease (for electrical connectors) - Qty: 1
• 🔩 Anti-seize compound - Qty: 1
• 🔩 Shop towels - Qty: 1 pack

---

📋 Before You Begin

• 🚗 Park the RAV4 on level ground, shift to Park, and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels.
• 🔋 Turn ignition OFF and remove the key; wait at least 2–3 minutes before disconnecting the battery.
• 🔌 You do not need a scan tool or any special software for this job.
• 📸 Take a picture of the belt routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Open the hood and support it with the hood prop.
• Use a 10mm socket and 3/8" drive ratchet to loosen the nut on the battery negative (-) terminal clamp.
• Lift the negative cable off the post and tuck it aside so it cannot spring back.
• Cover terminal with a rag to avoid accidental contact.

Step 2: Raise and support the front (optional but helpful)

• Use a floor jack (3-ton) to lift the front of your RAV4 at the front jacking point.
• Place jack stands under the proper pinch weld or frame support points on both sides.
• Lower the vehicle gently onto the stands and keep the jack as a backup if possible.

Step 3: Remove plastic splash shields / covers (if equipped)

• Some RAV4s have a lower engine cover or side splash shield blocking access.
• Use a 10mm socket and 3/8" drive ratchet to remove any bolts holding the cover.
• Use a trim clip remover tool to pop out plastic clips without breaking them.
• Set the covers and clips aside in order so reassembly is easier.

Step 4: Locate the serpentine belt and tensioner

• The alternator is on the front of the engine, towards the passenger side.
• The serpentine belt runs around the alternator, crankshaft pulley, A/C compressor, and other pulleys.
• Find the belt tensioner: a small pulley on a spring-loaded arm with a bolt head in the center (usually 14mm).

Step 5: Release tension and remove the belt from the alternator

• A serpentine belt tool is a long, thin wrench that fits the tensioner in tight spaces.
• Install a 14mm socket on the serpentine belt tool or a 1/2" drive breaker bar.
• Rotate the tensioner arm (usually clockwise on this engine) to relieve belt tension.
• While holding the tensioner, slide the belt off the alternator pulley using your free hand.
• Slowly release the tensioner back to its resting position.
• Do not let the tensioner snap back hard.

Step 6: Remove the belt (if replacing)

• Finish slipping the belt off all pulleys and remove it from the engine bay.
• Compare the old belt to the new one length and rib count to ensure correct part.

Step 7: Disconnect electrical connectors from the alternator

• On the back of the alternator, locate the main power cable and the plug-style connector.
• Use a 10mm socket and 3/8" drive ratchet to remove the nut holding the main power cable to the alternator stud.
• Pull the cable eyelet off and set it aside (do not twist the cable hard).
• Press the tab on the smaller plastic electrical connector and pull it straight out by hand.
• If the connector is stuck, gently pry the tab with a flathead screwdriver.
• Never pull on wires, only on the connector body.

Step 8: Remove alternator mounting bolts

• Locate the upper and lower alternator mounting bolts.
• Use a 14mm socket with a 3/8" drive ratchet and extension to loosen and remove the upper bolt.
• Use the same 14mm socket and tools to remove the lower bolt(s). The alternator may drop slightly when the last bolt comes out, so support it with your hand.
• Note bolt lengths and positions for correct reinstallation.

Step 9: Remove the alternator from the engine bay

• Wiggle the alternator free from its bracket. It may be snug due to corrosion or tight fit.
• If necessary, gently pry between the alternator ear and the bracket using a flathead screwdriver, but do not damage the aluminum.
• Lift the alternator up and out from the top. If space is tight, you may need to angle it around hoses or remove an additional bracket or component in the way using a 10mm or 12mm socket.

Step 10: Prepare the new alternator

• Compare the new alternator to the old one: mounting ears, pulley, electrical connections, and overall size should match.
• Lightly coat the mounting ears of the new alternator with a thin layer of anti-seize compound so it installs and removes easier next time.

Step 11: Install the new alternator

• Lower the new alternator into position, aligning the mounting ears with the engine bracket.
• Install the lower mounting bolt by hand first to hold the alternator in place.
• Install the upper mounting bolt by hand.
• Once all bolts are threaded by hand, use a 14mm socket and 3/8" drive ratchet to snug them evenly.
• Then torque the alternator mounting bolts to 39 Nm (29 ft-lbs) using a torque wrench 3/8" drive.

Step 12: Reconnect alternator wiring

• Push the plastic electrical connector onto the new alternator until it clicks.
• Place the main power cable eyelet onto the alternator stud.
• Install the nut using a 10mm socket and 3/8" drive ratchet, then torque to 9 Nm (80 in-lbs) with a torque wrench 3/8" drive.
• Apply a small amount of dielectric grease to exposed terminals if desired.

Step 13: Install the new serpentine belt

• Use your earlier photo or the under-hood belt routing diagram (often on a label) as a guide.
• Route the new belt around all pulleys except the alternator pulley, leaving that one for last.
• Install a 14mm socket on the serpentine belt tool or 1/2" drive breaker bar and rotate the tensioner to release tension.
• While holding the tensioner, slip the belt over the alternator pulley.
• Slowly release the tensioner so it tightens the belt.
• Check visually that the belt ribs are seated correctly in all pulley grooves.

Step 14: Reinstall splash shields / covers

• Reposition any lower engine covers or side shields you removed earlier.
• Install the bolts using a 10mm socket and 3/8" drive ratchet and snug them firmly.
• Reinstall plastic clips using your fingers or a trim clip remover tool if needed for alignment.

Step 15: Lower the vehicle

• Use the floor jack to lift your RAV4 slightly off the jack stands.
• Remove the jack stands and lower the vehicle carefully to the ground.

Step 16: Reconnect the battery

• Clean the battery posts and terminal clamps using the battery terminal cleaning kit.
• Place the negative (-) cable back onto the battery post.
• Use a 10mm socket and 3/8" drive ratchet to tighten the clamp snugly (do not overtighten or deform the clamp).

---

✅ After Repair

• 🔑 Start the engine and let it idle. Listen for any belt squeal or rubbing noises.
• 💡 Check that the battery/charging warning light on the dash turns off after starting.
• 📏 Use a multimeter (if you have one) at the battery: you should see around 13.8–14.5V with the engine running.
• 🔊 Turn on headlights, rear defogger, and A/C; voltage should stay above about 13.5V.
• 🧾 Your radio presets and clock may need to be reset.

---

💰 DIY vs Shop Cost

Shop Cost: $550–$800 (parts + labor)

DIY Cost: $250–$400 (parts only)

You Save: $300–$400 by doing it yourself!

Shop labor rates typically run $100–$150/hour. This repair takes a shop approximately 1.5–2.0 hours.

---
