🔧 RAV4 - Alternator Replacement

You’ll be removing the old alternator from the front of the engine, swapping it for a new one, and reinstalling the belt. This restores proper charging so your battery and electronics work correctly.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Always disconnect the negative battery terminal before working. This prevents short circuits and sparks.
• ⚠️ Let the engine cool fully before starting; belts and pulleys are near hot components.
• ⚠️ Keep fingers, tools, and clothing away from belt pulleys at all times.
• ⚠️ Wear safety glasses when working around the battery and belt.
• ⚠️ Do not support the vehicle only with a jack if you lift it; always use jack stands.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 🛠️ 10mm socket
• 🛠️ 12mm socket
• 🛠️ 14mm socket
• 🛠️ 3/8" drive ratchet
• 🛠️ 3/8" drive torque wrench (5-75 ft-lbs range)
• 🛠️ 3/8" drive short extension (3")
• 🛠️ Serpentine belt tool or long-handled 14mm wrench
• 🛠️ Flathead screwdriver (medium)
• 🛠️ Needle-nose pliers
• 🛠️ Fender cover or thick towel
• 🛠️ Floor jack (rated 2-ton minimum)
• 🛠️ Jack stands (rated 2-ton minimum)
• 🛠️ Work light or flashlight
• 🛠️ Mechanic’s gloves
• 🛠️ Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• 🔩 Alternator (2.5L engine, correct for your RAV4) - Qty: 1
• 🔩 Serpentine drive belt - Qty: 1 (strongly recommended while you’re here)
• 🔩 Alternator main terminal nut (if not included) - Qty: 1
• 🔩 Battery terminal cleaning brush - Qty: 1
• 🔩 Dielectric grease (for electrical connectors) - Qty: 1
• 🔩 Anti-seize compound - Qty: 1
• 🔩 Shop towels - Qty: 1 pack

---

📋 Before You Begin

• Park your RAV4 on level ground, select Park, and set the parking brake.
• Open the hood and prop it securely.
• If you’ll be working from below, loosen the right front wheel lug nuts slightly before jacking.
• Disconnect the negative battery cable:
  • Use a 10mm socket on the negative terminal clamp.
  • Move the cable away so it cannot spring back to touch the post.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

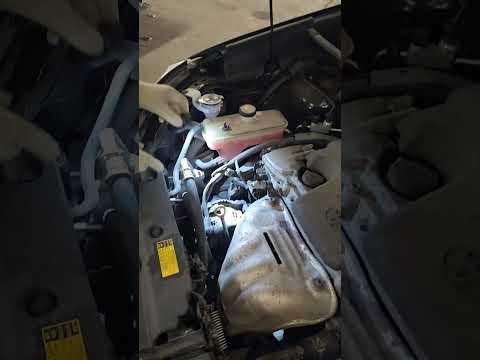

Step 1: Gain access to the alternator

• The alternator is on the passenger side front of the engine.
• Place a fender cover or thick towel over the front fender to protect paint.
• If needed for more room, remove the plastic engine cover:
  • Pull up gently at the corners by hand.

Step 2: Jack up and remove right front wheel (optional but helpful)

• Use a floor jack under the front right pinch weld or front crossmember and raise the vehicle.
• Place jack stands securely under the proper support points.
• Use a lug wrench or 21mm socket to remove the right front wheel if you want access through the fender liner.
• More access makes this job less frustrating.

Step 3: Remove the right lower splash shield / fender liner access panel

• Use a 10mm socket and flathead screwdriver to remove small bolts and plastic clips in the lower splash shield or small access panel behind the right front wheel.
• Gently pry out clips with the flathead screwdriver.
• Pull the panel back so you can see the belt and alternator from the side.

Step 4: Remove tension from the serpentine belt

• The serpentine belt is the long belt driving the alternator, A/C, etc.
• Locate the automatic belt tensioner from above or through the wheel well. It has a pulley on a spring-loaded arm and a 14mm bolt head.
• Place a 14mm socket with a 3/8" ratchet or a serpentine belt tool on the tensioner bolt.
• Rotate the tensioner clockwise to relieve tension on the belt.
• While holding tension off, slip the belt off the alternator pulley with your free hand.
• Slowly release the tensioner back to its rest position.
• Take a photo of belt routing before removal.

Step 5: Disconnect alternator electrical connections

• From the top, locate the back of the alternator.
• Remove the plastic cover over the main power stud (if present) using your fingers or a flathead screwdriver.
• Use a 12mm socket and ratchet to remove the nut holding the thick battery cable to the alternator “B+” terminal.
• Pull the cable off and set it aside.
• Unplug the small electrical connector:
  • Press the tab with your thumb or a flathead screwdriver and pull straight out.
• A tiny bit of dielectric grease helps reconnect later.

Step 6: Remove the alternator mounting bolts

• There are usually two main bolts holding the alternator to the engine bracket (one upper, one lower).
• Use a 14mm socket, 3/8" ratchet, and extension if needed to remove the upper mounting bolt.
• Remove the lower mounting bolt the same way.
• Support the alternator with your free hand so it does not drop suddenly.

Step 7: Remove the alternator from the engine bay

• Wiggle the alternator free from its bracket. It may be snug in the locating sleeves.
• If it’s stuck, gently pry between the alternator ear and the bracket with a flathead screwdriver, being careful not to damage aluminum surfaces.
• Lift the alternator up and out from the top, or angle it out through the fender well opening if easier.
• Be patient; rotate and tilt to find the path.

Step 8: Prepare and install the new alternator

• Compare the new alternator to the old one:
  • Same pulley size and type.
  • Same mounting ears and electrical connectors.
• Lightly coat the mounting bolt shanks with a thin film of anti-seize compound to ease future removal.
• Position the new alternator into place in the bracket.
• Install the lower mounting bolt by hand first to hold it in place.
• Install the upper mounting bolt by hand next.
• Use a 14mm socket and ratchet to snug both bolts evenly.
• Then use a torque wrench with 14mm socket to tighten the mounting bolts to:
  • Torque to 34 Nm (25 ft-lbs)

Step 9: Reconnect alternator electrical connections

• Lightly smear a small amount of dielectric grease on the small connector terminals if you have it.
• Plug in the small connector until it clicks.
• Install the main battery cable onto the alternator stud.
• Install the nut using a 12mm socket and ratchet.
• Tighten with a torque wrench and 12mm socket:
  • Torque to 9 Nm (80 in-lbs) (snug but not over-tight).
• Reinstall the plastic cap over the power terminal.

Step 10: Reinstall or replace the serpentine belt

• If installing a new belt, route it according to the belt routing diagram sticker under the hood. If there’s no sticker, use the photo you took.
• Make sure the belt sits centered in every pulley groove.
• Place a 14mm socket and ratchet or serpentine belt tool on the tensioner and rotate it clockwise again to relieve tension.
• Slip the belt over the alternator pulley last.
• Slowly release the tensioner to tension the belt.
• Visually check all pulleys from above and through the wheel well to confirm the belt is fully seated in the grooves.

Step 11: Reinstall splash shield / wheel and lower the vehicle

• Reinstall the lower splash shield or access panel using a 10mm socket and push the clips back in by hand.
• If you removed the wheel, reinstall it and hand-thread the lug nuts.
• Use the floor jack to raise the vehicle slightly, remove the jack stands, and lower the vehicle to the ground.
• Tighten lug nuts with a lug wrench or 21mm socket in a star pattern:
  • Torque to 103 Nm (76 ft-lbs) if you have a torque wrench.

Step 12: Reconnect the battery

• Clean the negative battery terminal with a battery terminal cleaning brush if it’s corroded.
• Place the negative cable back on the negative post.
• Use a 10mm socket to tighten the clamp:
  • Torque to 5.4 Nm (48 in-lbs) (firm but not crushing).

Step 13: Final checks under the hood

• Ensure all tools are removed from the engine bay.
• Verify all connectors are fully seated and no wires are pinched.
• If removed, press the engine cover back into place by hand.
• Close the hood securely.

---

✅ After Repair

• Start the engine and listen for any unusual noises like squealing or grinding from the belt area.
• Check that the battery/charging warning light on the dash turns off after the engine starts.
• Use a multimeter across the battery terminals if available:
  • Engine running: you should see around 13.8–14.4 volts.
• Turn on headlights, blower fan, and rear defogger; confirm lights do not dim and engine runs smoothly.
• Take a short drive and recheck under the hood afterward for proper belt tracking and tight connections.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$850 (parts + labor)

DIY Cost: $220-$380 (parts only)

You Save: $330-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.0 hours.

---
