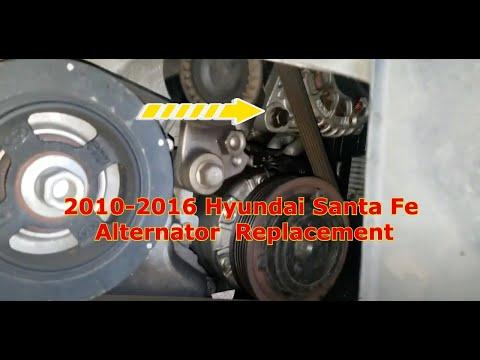

🔧 Santa Fe - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. Replacing it on your Santa Fe mainly involves disconnecting the battery, removing the serpentine belt, unplugging the alternator wiring, and swapping the unit.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

Assumption: 3.3L V6 layout with alternator accessible from top/front; steps note bottom-access if needed.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent shorts.
• ⚠️ Keep hands/tools away from the radiator fans; they can turn on unexpectedly if the battery is connected.
• ⚠️ Support the SUV with jack stands before working underneath; never rely on a floor jack alone.
• ⚠️ Let the engine cool before working near the belt and exhaust components.
• ⚠️ Do not pry on aluminum parts; they can crack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Metric socket set 8mm-19mm
• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• Breaker bar 1/2-inch drive
• Torque wrench 10-150 ft-lbs
• Serpentine belt tool (specialty)
• Flat trim tool
• Needle-nose pliers
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator (3.3L V6, correct amperage) - Qty: 1
• Serpentine belt - Qty: 1
• Battery terminal protectant - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and remove the key/fob from the vehicle area.
• If you’ll work from underneath, raise the front with a floor jack and support with jack stands at the proper lift points.
• Take a quick photo of the belt routing sticker (or draw it). This helps a lot during reassembly.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (-) battery terminal and remove it.
• Move the cable aside so it cannot spring back onto the battery post.
• Tip: Negative off first, on last.

Step 2: Remove the engine cover and intake duct (if equipped)

• Pull up on the engine cover to release it (it uses rubber grommets).
• If the intake duct blocks access, loosen clamps with the appropriate 10mm socket and release clips using a flat trim tool.
• Lift the duct out and set it aside.

Step 3: Remove the lower splash shield (if you need bottom access)

• From underneath, remove the fasteners using a 10mm socket and a flat trim tool.
• Lower the shield and set it aside.

Step 4: Release serpentine belt tension and remove the belt

• Locate the belt tensioner (spring-loaded arm with a pulley).
• Use a serpentine belt tool (specialty) or breaker bar on the tensioner hex (commonly 14mm socket).
• Rotate the tensioner to relieve belt tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to rest (do not let it snap).
• Tip: Keep fingers clear of pinch points.

Step 5: Unplug alternator electrical connections

• Disconnect the alternator plug by pressing the lock tab and pulling straight off. Use needle-nose pliers only if needed (don’t crush it).
• Remove the rubber boot from the alternator B+ terminal (main power cable).
• Use a 12mm socket to remove the B+ terminal nut and lift the cable off the stud.
• Reposition the cable so it cannot touch metal.
• Tip: Bag the nut so it can’t disappear.

Step 6: Remove alternator mounting bolts

• Support the alternator with one hand (it’s heavier than it looks).
• Use a 14mm socket and ratchet to remove the alternator mounting bolts (typically an upper pivot bolt and a lower bolt).
• If a bolt is tight, use the breaker bar carefully to crack it loose.

Step 7: Remove the alternator from the engine bay

• Work the alternator out of its bracket. You may need to rotate it to clear hoses and wiring.
• If it won’t come out from the top, remove it from below (this is why the splash shield step is included).
• Tip: Don’t pry against the radiator or A/C lines.

Step 8: Install the new alternator

• Place the new alternator into position and hand-thread the mounting bolts to avoid cross-threading.
• Tighten mounting bolts with a 14mm socket, then torque with a torque wrench.
• Torque to 50-60 Nm (37-44 ft-lbs) for alternator mounting bolts.

Step 9: Reconnect alternator wiring

• Install the main B+ cable onto the stud and tighten the nut using a 12mm socket.
• Torque to 9-12 Nm (80-106 in-lbs) for the B+ terminal nut.
• Reinstall the rubber boot over the B+ terminal.
• Reconnect the alternator plug until it clicks.

Step 10: Reinstall the serpentine belt

• Route the belt according to the under-hood diagram (or your photo), leaving the alternator pulley for last if that helps.
• Use the serpentine belt tool (specialty) or breaker bar on the tensioner to relieve tension and slip the belt onto the alternator pulley.
• Visually confirm the belt ribs are fully seated in every grooved pulley.
• Tip: One misaligned rib can shred the belt.

Step 11: Reinstall removed covers/ducting and reconnect the battery

• Reinstall the intake duct using the 10mm socket and confirm clamps/clips are secure.
• Reinstall the engine cover by pressing it back onto the grommets.
• If removed, reinstall the splash shield using the 10mm socket and flat trim tool.
• Reconnect the negative battery cable using a 10mm socket.
• Apply battery terminal protectant to reduce corrosion.

---

✅ After Repair

• Start the engine and listen for belt squeal or slapping. If you hear it, shut off and re-check belt routing.
• With the engine idling, verify charging voltage at the battery is roughly 13.5-14.8V (a parts-store multimeter works great).
• Confirm the battery/charging warning light is off.
• Recheck for any loose tools, clips, or wiring near the belt path.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$1,000 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $320-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
