🔧 Traverse - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. On your Traverse, replacing it involves disconnecting the battery, removing the serpentine belt, unplugging the alternator wiring, and swapping the unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: Stock 3.6L layout with alternator at the front (radiator side).

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short at the alternator’s main power stud.
• ⚠️ Let the engine cool; the radiator area and belt drive can be hot.
• ⚠️ Keep fingers and tools clear of the belt path; the tensioner is spring-loaded.
• ⚠️ If you raise the vehicle, support it with jack stands on a solid, level surface.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Socket set: 8mm, 10mm, 13mm, 15mm, 18mm
• Wrench set: 10mm, 13mm, 15mm
• Serpentine belt tool (specialty)
• Torque wrench (10-150 ft-lbs range)
• Trim clip removal tool
• Flat-blade screwdriver
• Needle-nose pliers
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove any loose jewelry/clothing that could snag.
• Take a photo or draw a quick sketch of the serpentine belt routing before removal.
• Have your radio presets noted if you care about them (battery will be disconnected).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (−) battery terminal and remove it from the battery post.
• Tuck the cable aside so it cannot spring back to the terminal.
• Torque to 15 Nm (11 ft-lbs) when reinstalling.

Step 2: Remove the engine cover and air intake ducting (as needed)

• Lift off the engine cover by hand (it pulls upward from rubber grommets).
• Use an 8mm socket or flat-blade screwdriver to loosen intake hose clamps, then remove the intake duct if it blocks access.
• Use a trim clip removal tool for any plastic push-clips.
• Tip: Set clamps and clips in a small tray.

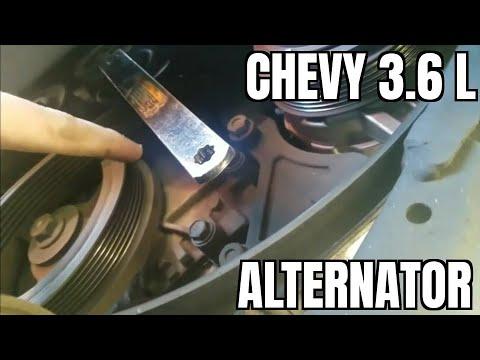

Step 3: Relieve serpentine belt tension

• Locate the belt tensioner (spring-loaded pulley assembly).
• Install a serpentine belt tool (specialty) or 1/2" breaker bar on the tensioner hex.
• Rotate the tensioner to release belt tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to its stop (do not let it snap back).
• Definition: A serpentine belt tool is a long, thin handle that fits tight spaces to move the tensioner.

Step 4: Disconnect alternator electrical connections

• Find the alternator electrical plug and press the lock tab; pull the connector straight out (use needle-nose pliers only if needed, gently).
• Remove the rubber protective boot from the main power (B+) stud.
• Use a 13mm socket to remove the B+ cable nut and lift the cable off the stud.
• Torque to 15 Nm (11 ft-lbs) on the B+ nut during reassembly.
• Tip: Keep the boot in place so it doesn’t tear.

Step 5: Remove the alternator mounting bolts

• Support the alternator with one hand.
• Use a 15mm socket (and 3/8" ratchet) to remove the alternator mounting bolts.
• Lift the alternator out of the engine bay. You may need to rotate it to clear hoses/brackets.
• Torque to 50 Nm (37 ft-lbs) for alternator mounting bolts on installation.

Step 6: Install the new alternator

• Set the new alternator into position and start all mounting bolts by hand to avoid cross-threading.
• Use a 15mm socket to snug the bolts evenly, then use a torque wrench to finish.
• Torque to 50 Nm (37 ft-lbs).

Step 7: Reconnect alternator wiring

• Install the B+ cable onto the stud and thread the nut by hand.
• Use a 13mm socket and torque wrench to tighten the nut.
• Torque to 15 Nm (11 ft-lbs), then reinstall the rubber boot fully over the stud.
• Apply a small amount of dielectric grease to the electrical plug seal, then push the connector in until it clicks.
• Definition: Dielectric grease helps prevent corrosion in connectors.

Step 8: Reinstall the serpentine belt

• Route the belt according to your photo/diagram, leaving the alternator pulley for last if that’s easiest.
• Use the serpentine belt tool (specialty) or 1/2" breaker bar to rotate the tensioner and slip the belt onto the alternator pulley.
• Release the tensioner slowly and verify the belt is centered on every pulley groove.
• Tip: One rib off can shred the belt.

Step 9: Reinstall intake parts and engine cover

• Reinstall the intake duct and tighten clamps using an 8mm socket or flat-blade screwdriver.
• Reinstall any push-clips using a trim clip removal tool as needed.
• Press the engine cover back onto its grommets by hand.

Step 10: Reconnect the battery

• Install the negative (−) battery terminal using a 10mm socket.
• Torque to 15 Nm (11 ft-lbs).
• Apply battery terminal anti-corrosion spray if available.

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light turns off.
• Listen for belt squeal or ticking; shut off and re-check belt alignment if you hear anything abnormal.
• If you have a multimeter, check charging voltage at the battery with engine running: typically ~13.5–14.8V.
• Take a short test drive, then re-check that the belt is still properly seated.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,050 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
