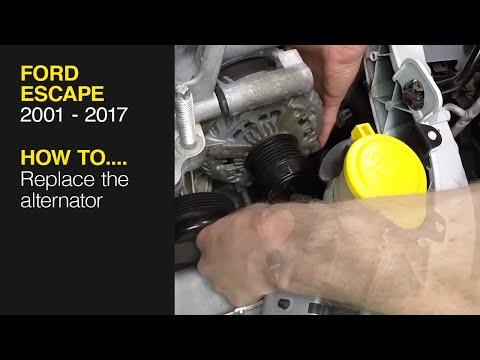

🔧 Escape - Alternator Replacement

Replacing the alternator on your Escape restores proper battery charging and prevents stalling, warning lights, or a no-start condition. On the 1.6L turbo engine, access is tight, so take your time and keep bolts organized as you remove them.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the alternator wiring. The alternator has a direct battery power cable.
• ⚠️ Let the engine cool fully before working. The turbocharger and exhaust area can stay very hot.
• ⚠️ Support your Escape securely with jack stands if lifting the front. Never rely on a floor jack alone.
• ⚠️ Keep fingers clear of the belt path. A serpentine belt is the long rubber belt that drives accessories like the alternator.
• ⚠️ Do not short the alternator battery terminal to metal tools or brackets.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive extension set
• Serpentine belt tool (specialty)
• Flat-blade screwdriver
• Trim clip removal tool
• Torque wrench, 5-80 Nm range
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Battery terminal brush
• Digital multimeter
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Battery terminal protectant - Qty: 1

---

📋 Before You Begin

• Park your Escape on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Save radio presets or personal settings if desired.
• Open the hood and let the engine cool completely.
• Disconnect the negative battery cable using a 10mm socket, then move the cable away from the battery post.
• Lift the front of your Escape with a floor jack and support it with jack stands if you need lower access.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect Battery Power

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Remove the cable from the battery and tuck it aside so it cannot spring back.
• Use a battery terminal brush to clean the terminal if corrosion is present.
• Always disconnect negative first.

Step 2: Remove the Engine Appearance Cover and Intake Ducting

• Lift the plastic engine cover upward by hand if equipped.
• Use a flat-blade screwdriver to loosen the intake duct clamp.
• Use an 8mm socket if the clamp uses a hex-head screw.
• Remove the air intake duct enough to improve access around the alternator area.
• Set the duct and clamps aside together.

Step 3: Remove Lower Splash Shield Access

• Put on safety glasses before working underneath.
• Use a trim clip removal tool to remove plastic push clips from the lower splash shield.
• Use an 8mm socket to remove any splash shield screws.
• Lower the shield and set it aside.
• A trim clip tool is a small fork-shaped tool that removes plastic clips without breaking them.

Step 4: Relieve Serpentine Belt Tension

• Locate the belt tensioner. The tensioner is the spring-loaded pulley that keeps the belt tight.
• Fit the serpentine belt tool onto the tensioner.
• Rotate the tensioner slowly to release belt tension.
• Slide the belt off the alternator pulley only if reusing the belt path, or remove the belt completely if replacing it.
• Take a photo of the belt routing before removal.
• A photo prevents routing mistakes.

Step 5: Disconnect Alternator Electrical Connectors

• Press the locking tab on the alternator control connector and unplug it by hand.
• Use a 10mm socket or 13mm socket to remove the nut from the alternator battery cable terminal, depending on the replacement style.
• Move the battery cable away from the alternator and protect it from touching metal.
• Do not pull on the wires. Pull only on the connector body.

Step 6: Remove Alternator Mounting Bolts

• Use a 13mm socket, 15mm socket, 3/8-inch drive ratchet, and 3/8-inch drive extension to remove the alternator mounting bolts.
• Support the alternator with one hand as the final bolt comes out.
• Keep track of bolt locations if lengths differ.
• If the alternator is stuck in its bracket, gently rock it by hand. Do not pry against the aluminum housing aggressively.

Step 7: Remove the Alternator from the Engine Bay

• Guide the alternator out through the best open path, usually by rotating it to clear the bracket and surrounding hoses.
• Use a flat-blade screwdriver only to gently move plastic clips or harness retainers aside.
• Do not force the alternator against coolant hoses, turbo plumbing, or wiring.
• Slow rotation beats force here.

Step 8: Compare the New Alternator

• Place the old and new alternator side by side.
• Confirm the pulley, mounting ears, electrical connector, and battery stud are in the same locations.
• Spin the new pulley by hand. It should turn smoothly without grinding.

Step 9: Install the New Alternator

• Position the new alternator into the bracket by hand.
• Start all mounting bolts by hand first to avoid cross-threading.
• Use a 13mm socket or 15mm socket to snug the mounting bolts evenly.
• Use a torque wrench to tighten the alternator mounting bolts to Torque to 48 Nm (35 ft-lbs).

Step 10: Reconnect Alternator Wiring

• Install the alternator battery cable onto the output stud.
• Use a 10mm socket or 13mm socket to tighten the battery cable nut.
• Use a torque wrench to tighten the alternator battery cable nut to Torque to 9 Nm (80 in-lbs).
• Plug in the alternator control connector until it clicks.
• Make sure the rubber terminal cover is seated over the battery cable stud if equipped.

Step 11: Install the Serpentine Belt

• Route the new serpentine belt around the pulleys using your belt-routing photo.
• Use the serpentine belt tool to rotate the tensioner and slide the belt over the final pulley.
• Release the tensioner slowly.
• Check that the belt ribs sit fully in every pulley groove.
• Misaligned belts shred quickly.

Step 12: Reinstall Intake Ducting and Splash Shield

• Reinstall the air intake duct by hand.
• Use a flat-blade screwdriver or 8mm socket to tighten the intake clamp until snug.
• Reinstall the lower splash shield.
• Use a trim clip removal tool to help seat reusable clips if needed.
• Use an 8mm socket to reinstall any splash shield screws.

Step 13: Reconnect the Battery

• Apply battery terminal protectant lightly to the battery post if desired.
• Install the negative battery cable onto the battery post.
• Use a 10mm socket to tighten the clamp nut until secure.
• Do not overtighten the clamp. Battery posts can crack.

Step 14: Verify Charging System Operation

• Use a digital multimeter set to DC volts.
• Measure battery voltage before starting. A healthy charged battery should be near 12.6 volts.
• Start the engine and measure again at the battery.
• Charging voltage should typically read about 13.5-14.8 volts with the engine running.
• If the battery warning light stays on, shut the engine off and recheck the connector, output cable, belt routing, and battery terminals.

---

✅ After Repair

• ✅ Let the engine idle for 2-3 minutes and listen for belt squeal, rubbing, or clicking.
• ✅ Turn on headlights, blower motor, and rear defogger, then confirm voltage stays stable with the digital multimeter.
• ✅ Check that the serpentine belt tracks straight on all pulleys.
• ✅ Recheck the splash shield and intake duct for loose fasteners.
• ✅ Drive gently for 10-15 minutes, then restart the engine to confirm normal starting.
• ✅ If the battery was weak from the failed alternator, fully charge or test it. A bad battery can make a new alternator look faulty.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,000 (parts + labor)

DIY Cost: $250-$500 (parts only)

You Save: $400-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.

🔧 Escape - Alternator Replacement

Replacing the alternator restores the charging system so the battery stays charged while the engine runs. On your Escape, the alternator is tight to access, so the job is doable at home but requires patience, safe lifting, and careful belt routing.

Difficulty Level: Advanced | Estimated Time: 3-5 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before working on the alternator. The alternator output cable is live battery power.
• ⚠️ Let the engine cool completely. The turbocharger and exhaust parts can stay dangerously hot.
• ⚠️ Use jack stands on solid ground if lifting your Escape. A floor jack is only for lifting, not holding the vehicle.
• ⚠️ Keep fingers and tools away from the serpentine belt path. The serpentine belt is the long belt that drives the alternator and other accessories.
• ⚠️ Do not let the alternator battery cable touch metal after removal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8-inch drive ratchet
• 3/8-inch drive extension set
• Serpentine belt tool (specialty)
• Flat-blade screwdriver
• Trim clip removal tool
• Torque wrench, 5-80 Nm range
• Digital multimeter
• Battery terminal brush
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• Mechanic gloves
• Safety glasses

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Battery terminal protectant - Qty: 1

---

📋 Before You Begin

• Park your Escape on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and let the engine cool fully.
• Take a photo of the belt routing before removing the belt.
• Disconnect the negative battery cable with a 10mm socket.
• If lifting the front, use a floor jack and support your Escape with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the Battery

• Use a 10mm socket to loosen the negative battery cable clamp.
• Lift the cable off the battery post and move it away so it cannot touch the post.
• Use a battery terminal brush to clean corrosion if needed.
• Negative cable comes off first.

Step 2: Remove the Upper Intake Duct

• Use a flat-blade screwdriver or 8mm socket to loosen the intake hose clamp.
• Unclip or move the air duct by hand to create more room near the alternator.
• Set the duct aside where dirt cannot enter it.

Step 3: Remove the Lower Splash Shield

• Put on safety glasses before working below the vehicle.
• Use a trim clip removal tool to remove the plastic push clips. This tool is a small fork that lifts clips without breaking them.
• Use an 8mm socket to remove any splash shield screws.
• Lower the shield and place it aside.

Step 4: Remove Tension from the Serpentine Belt

• Find the belt tensioner. The tensioner is the spring-loaded pulley that keeps the belt tight.
• Place the serpentine belt tool on the tensioner. This long tool gives extra leverage in tight spaces.
• Rotate the tensioner slowly to release belt tension.
• Slide the belt off the alternator pulley.
• If replacing the belt, remove it fully from all pulleys.
• Take a belt-routing photo first.

Step 5: Disconnect Alternator Wiring

• Press the tab on the small alternator electrical connector and unplug it by hand.
• Lift the protective rubber boot off the alternator battery cable stud if equipped.
• Use a 10mm socket or 13mm socket to remove the alternator output cable nut.
• Move the cable aside and keep it from touching metal.

Step 6: Remove Alternator Mounting Bolts

• Support the alternator with one hand.
• Use a 13mm socket, 15mm socket, 3/8-inch drive ratchet, and 3/8-inch drive extension to remove the alternator mounting bolts.
• Keep the bolts in order as you remove them.
• If the alternator feels stuck, gently rock it by hand to loosen it from the bracket.

Step 7: Remove the Alternator

• Rotate the alternator carefully to clear brackets, hoses, and wiring.
• Use a flat-blade screwdriver only to gently move plastic harness clips aside if needed.
• Lift the alternator out through the most open path.
• Do not force it against coolant hoses or turbo plumbing.
• Rotate slowly, then lift out.

Step 8: Compare Old and New Alternators

• Place the old and new alternator side by side.
• Check that the pulley, mounting ears, electrical connector, and battery cable stud match.
• Spin the new pulley by hand. It should feel smooth.

Step 9: Install the New Alternator

• Lower the new alternator into position by hand.
• Start all mounting bolts by hand first so the threads do not cross.
• Use a 13mm socket or 15mm socket to snug the mounting bolts evenly.
• Use a torque wrench to tighten the alternator mounting bolts to 48 Nm (35 ft-lbs).

Step 10: Reconnect the Alternator Wiring

• Install the alternator battery cable onto the output stud.
• Use a 10mm socket or 13mm socket to install the cable nut.
• Use a torque wrench to tighten the alternator battery cable nut to 9 Nm (80 in-lbs).
• Push the rubber boot back over the terminal if equipped.
• Plug in the small electrical connector until it clicks.

Step 11: Reinstall the Serpentine Belt

• Route the serpentine belt around the pulleys using your photo.
• Use the serpentine belt tool to rotate the tensioner.
• Slide the belt over the last pulley, then release the tensioner slowly.
• Check every pulley and make sure the belt ribs are seated in the grooves.
• One rib off can destroy the belt.

Step 12: Reinstall Removed Covers and Ducts

• Reinstall the lower splash shield.
• Use an 8mm socket to tighten the splash shield screws.
• Use a trim clip removal tool or your fingers to reinstall the plastic clips.
• Reinstall the air intake duct.
• Use a flat-blade screwdriver or 8mm socket to tighten the intake clamp until snug.

Step 13: Reconnect the Battery

• Apply battery terminal protectant lightly if the terminal was cleaned.
• Place the negative cable back onto the battery post.
• Use a 10mm socket to tighten the clamp until secure.
• Do not overtighten. Battery posts can crack.

Step 14: Test Charging Voltage

• Set the digital multimeter to DC volts.
• Touch the red meter lead to the positive battery post and the black lead to the negative post.
• Before starting, a charged battery should read close to 12.6 volts.
• Start the engine and check voltage again.
• The running voltage should usually be about 13.5-14.8 volts.
• If the battery light stays on, shut the engine off and recheck the belt, alternator connector, battery cable, and battery terminals.

---

✅ After Repair

• ✅ Let the engine idle for a few minutes and listen for squealing, chirping, or rubbing.
• ✅ Turn on headlights, blower fan, and rear defogger, then recheck charging voltage with the digital multimeter.
• ✅ Make sure the belt runs straight and stays centered on each pulley.
• ✅ Recheck that all ducts, clips, and shields are secure.
• ✅ If the old alternator drained the battery, charge and test the battery before daily driving.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,000 (parts + labor)

DIY Cost: $250-$500 (parts only)

You Save: $400-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---

🎯 Ready to get started?

HowToo makes it easy: same-day/2-day shipping on every part, plus all the tools and specialty tools you need! Check out the parts and tools sections below to add everything to your cart.
