🔧 LaCrosse - Alternator Replacement

You’ll remove the serpentine belt, unplug the alternator wiring, unbolt the alternator, then install the new one and re-tension the belt. This matters because a weak alternator can cause no-starts, battery warning lights, dim lights, and low system voltage.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Assumption: Your LaCrosse has the 3.6L V6 (typical layout) with alternator accessible from the top-front of the engine.

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short (the alternator power cable is always “live”).
• ⚠️ Let the engine cool before working near the radiator and belt drive.
• ⚠️ Support the hood securely; keep hands/clothes clear of belt and pulleys.
• ⚠️ Never pry on plastic connectors; release the locking tab first.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" ratchet
• 3/8" breaker bar
• 3/8" torque wrench (10–100 Nm range)
• 6" socket extension
• Flat trim tool
• Flathead screwdriver
• Serpentine belt tool (specialty)
• Digital multimeter
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (recommended if belt is cracked/glazed)
• Dielectric grease - Qty: 1 (small packet)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and install a fender cover to protect paint.
• Disconnect the battery: use a 10mm socket to remove the negative battery cable and tuck it aside so it can’t spring back.
• If you can, take a quick photo of the belt routing sticker (or draw the route). This prevents misrouting later.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and intake duct (for access)

• Pull up on the engine cover to release the rubber grommets (it snaps on).
• Loosen the intake duct clamps using a flathead screwdriver (and/or 10mm socket depending on clamp style).
• Unclip any small hose(s) or resonator clips using a flat trim tool, then lift the duct out of the way.

Step 2: Relieve belt tension and remove the serpentine belt from the alternator

• Locate the belt tensioner (spring-loaded pulley assembly).
• Install a serpentine belt tool (specialty) or 3/8" breaker bar into the tensioner drive.
• Rotate the tensioner to relieve tension, then slide the belt off the alternator pulley.
• Tip: Keep the belt on other pulleys if reusing.

Step 3: Unplug the alternator electrical connector

• Find the small alternator plug (field connector).
• Press the locking tab and pull straight off by hand; use a flat trim tool gently if it’s stubborn.
• Apply a tiny amount of dielectric grease to the seal on reassembly (optional but helpful).

Step 4: Remove the alternator main power cable

• Remove the protective rubber boot from the alternator “BAT” stud.
• Use a 13mm socket to remove the retaining nut, then lift the cable off the stud.
• Set the cable aside so it can’t touch metal.
• Tip: This cable can spark if battery isn’t disconnected.

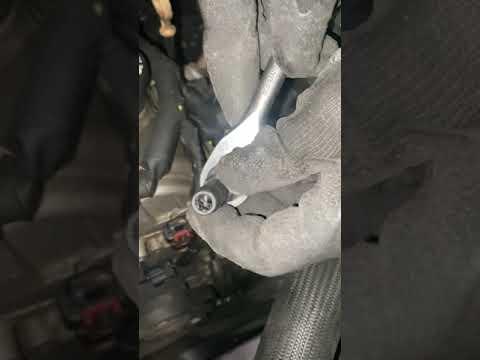

Step 5: Unbolt the alternator

• Locate the alternator mounting bolts (typically 2–3 bolts).
• Use a 15mm socket with a 3/8" ratchet and 6" extension to remove the alternator mounting bolts.
• Support the alternator with your free hand as the last bolt comes out.

Step 6: Remove the alternator from the engine bay

• Work the alternator up and out (you may need to rotate it slightly to clear hoses and brackets).
• If it feels stuck, re-check for a hidden bolt or a bracket ear still engaged—don’t force it.

Step 7: Install the new alternator

• Compare old and new alternator: mounting ears, pulley alignment, and electrical connections should match.
• Set the alternator into place and hand-start all mounting bolts to avoid cross-threading.
• Tighten mounting bolts using a 15mm socket, then Torque to 50 Nm (37 ft-lbs).

Step 8: Reconnect alternator wiring

• Install the main power cable on the BAT stud and tighten the nut with a 13mm socket, then Torque to 15 Nm (11 ft-lbs).
• Reinstall the rubber boot fully over the stud.
• Reconnect the alternator plug until it clicks (push straight in).

Step 9: Reinstall the serpentine belt

• Route the belt correctly on all pulleys (use your photo/diagram).
• Use the serpentine belt tool (specialty) or 3/8" breaker bar to rotate the tensioner, then slip the belt fully onto the alternator pulley.
• Release the tensioner slowly and check that the belt is centered on every pulley.

Step 10: Reinstall intake duct and engine cover

• Reinstall the intake duct, reconnect any hoses, and tighten clamps with a flathead screwdriver and/or 10mm socket.
• Press the engine cover back onto its grommets.

Step 11: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.
• Snug it firmly (do not over-tighten the terminal).

---

✅ After Repair

• Start the engine and listen: no squealing, slapping, or rubbing from the belt.
• Check charging voltage with a digital multimeter: you should typically see about 13.5–14.8V at the battery with the engine running.
• Confirm the battery/charging warning light stays off on the dash.
• Recheck belt alignment after a short 5–10 minute drive.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $220-$550 (parts only)

You Save: $430-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
