🔧 Corolla - Alternator Replacement

Your alternator charges the battery and powers the electrical system while the engine runs. Replacing it on your Corolla involves removing the drive belt, unplugging the alternator wiring, and swapping the unit, then reinstalling and tensioning the belt correctly.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative terminal first to prevent shorts.
• ⚠️ Let the engine cool; the exhaust and radiator area can burn you.
• ⚠️ Support the car with jack stands if you lift it; never rely on a jack alone.
• ⚠️ Keep fingers clear when releasing belt tension; the tensioner snaps back hard.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• 14mm combination wrench
• Torque wrench (10–80 ft-lbs range)
• Flat trim clip tool
• Needle-nose pliers
• Paint marker
• Digital multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1 Replace if cracked/glazed
• Battery terminal anti-corrosion washers - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, put the transmission in neutral, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• Use a paint marker to draw a quick belt-routing sketch (or take a photo).
• Open the hood and disconnect the battery: use a 10mm socket to remove the negative (–) terminal and tuck it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover (if equipped)

• Pull upward to release the cover from the rubber grommets (no tools usually needed).

Step 2: Create access (upper area)

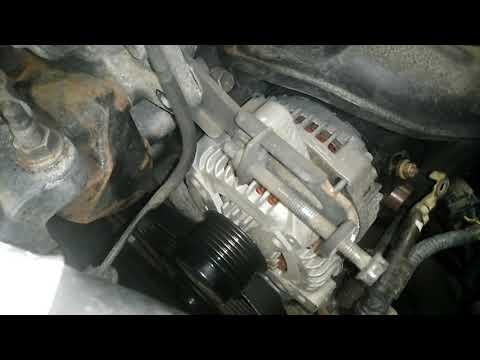

• Locate the alternator at the front/passenger side of the engine.
• If the air intake duct blocks access, loosen the hose clamp with a 10mm socket and move the duct aside.

Step 3: Release tension and remove the serpentine belt

• Find the belt tensioner. It has a hex boss you can turn to relieve belt tension.
• Use a 14mm combination wrench or 14mm socket on the tensioner hex boss and rotate to relieve tension.
• Slide the belt off the alternator pulley first, then slowly release the tensioner back.
• Tip: Don’t let the tensioner snap back.

Step 4: Disconnect alternator electrical connections

• Unplug the alternator connector by pressing the tab and pulling straight back (use needle-nose pliers gently if it’s stuck).
• Remove the rubber boot over the main charging wire (B+).
• Remove the B+ nut using a 10mm socket, then lift the ring terminal off the stud.
• Reinstall the nut a couple turns on the stud so you don’t lose it.
• Torque to 9 Nm (80 in-lbs) when reinstalling the B+ nut.

Step 5: Remove alternator mounting bolts

• Support the alternator with one hand as you remove bolts so it doesn’t drop.
• Remove the upper mounting bolt using a 14mm socket with a 3/8" drive ratchet and extension.
• Remove the lower mounting bolt using a 14mm socket.
• Work the alternator out of the engine bay (you may need to rotate it slightly to clear hoses).
• Torque to 39 Nm (29 ft-lbs) for the alternator mounting bolts during installation.

Step 6: Install the new alternator

• Position the new alternator in place by hand.
• Start both mounting bolts by hand first (this prevents cross-threading).
• Tighten the mounting bolts using a 14mm socket, then final-tighten with a torque wrench: Torque to 39 Nm (29 ft-lbs).

Step 7: Reconnect alternator wiring

• Install the main charging wire ring terminal onto the B+ stud.
• Tighten the B+ nut using a 10mm socket and finish with a torque wrench: Torque to 9 Nm (80 in-lbs).
• Reinstall the rubber boot over the B+ terminal.
• Plug in the alternator electrical connector until it clicks.

Step 8: Reinstall the serpentine belt

• Route the belt according to your photo/diagram.
• Use a 14mm combination wrench on the tensioner to relieve tension.
• Slip the belt onto the alternator pulley last, then slowly release the tensioner.
• Visually confirm the belt is fully seated in every pulley groove.
• Tip: One rib off can shred the belt.

Step 9: Reassemble and reconnect the battery

• Reinstall any intake ducting you moved using a 10mm socket.
• Reconnect the battery negative terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and confirm the charging/low battery warning light is off.
• Use a digital multimeter at the battery terminals:
• Engine idling: typically about 13.5–14.7V.
• Turn on headlights + blower fan and confirm voltage stays steady (not dropping into the 12V range).
• Listen for belt squeal and re-check belt seating if you hear any noise.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
