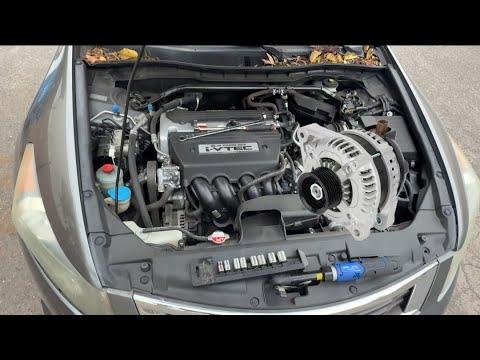

🔧 Accord - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. On your Accord, replacement involves disconnecting the battery, removing the drive belt from the alternator pulley, unbolting the alternator, and swapping it in.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent shorts.
• ⚠️ Do not let a wrench touch the alternator power stud and metal parts at the same time.
• ⚠️ Keep hands/clothes clear of the belt path and cooling fan area.
• ⚠️ Work on a cool engine; the exhaust and radiator can burn you.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench (10–80 ft-lbs range)
• 6" extension (3/8" drive)
• 12" extension (3/8" drive)
• 14mm combination wrench
• Flat trim tool
• Small flat-blade screwdriver
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1 (recommended if worn/cracked)
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• Take a quick photo of the belt routing (or sketch it) before removing the belt.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (–) battery terminal clamp.
• Lift the cable off and tuck it aside so it can’t spring back to the terminal.

Step 2: Remove the intake duct (for access)

• Use a flat trim tool to release any plastic clips holding the duct/snorkel.
• Use a 10mm socket to remove any small bolts, then lift the duct out.
• More space = less frustration.

Step 3: Relieve belt tension and slip the belt off the alternator

• The belt tensioner is spring-loaded (it keeps the belt tight automatically).
• Put a 14mm combination wrench on the tensioner arm bolt.
• Rotate the tensioner to relieve tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to its resting position.

Step 4: Unplug alternator electrical connections

• Press the tab and unplug the alternator connector using a small flat-blade screwdriver only if needed (don’t break the tab).
• Remove the rubber boot covering the main power stud.
• Use a 10mm socket to remove the nut from the alternator power stud, then remove the cable.
• Torque to 9.8 Nm (7 ft-lbs) when reinstalling the power-stud nut.

Step 5: Remove the alternator mounting bolts

• Use a 12mm socket and 3/8" ratchet with a 6" extension to remove the upper alternator mounting bolt.
• Use a 14mm socket and 3/8" ratchet with a 12" extension to remove the lower mounting/pivot bolt.
• Lift the alternator out carefully (it may need a gentle wiggle).

Step 6: Install the new alternator

• Set the new alternator into position and hand-start the mounting bolts to avoid cross-threading.
• Tighten the alternator mounting bolts using a 12mm socket / 14mm socket and a 3/8" torque wrench.
• Torque alternator mounting bolts to 44 Nm (33 ft-lbs).

Step 7: Reconnect alternator wiring

• Reinstall the main power cable and nut using a 10mm socket.
• Torque to 9.8 Nm (7 ft-lbs), then reinstall the rubber boot.
• Plug the alternator connector back in until it clicks.
• Apply a small amount of dielectric grease to the connector seal if desired.

Step 8: Reinstall the belt

• Route the belt correctly on all pulleys (leave the alternator pulley for last if that’s easiest).
• Use a 14mm combination wrench to rotate the tensioner and slide the belt onto the alternator pulley.
• Double-check the belt is seated in every pulley groove (no half-on/half-off).

Step 9: Reinstall the intake duct and reconnect the battery

• Reinstall the duct using the flat trim tool for clips and a 10mm socket for bolts.
• Reconnect the negative (–) battery terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light turns off.
• Listen for belt squeal; if you hear it, shut off the engine and re-check belt routing and seating.
• With the engine running, check for stable electrical operation (headlights steady, no flicker).
• If you have a voltmeter: charging voltage typically stays around 13.5–14.8V at idle with accessories off.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,050 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
