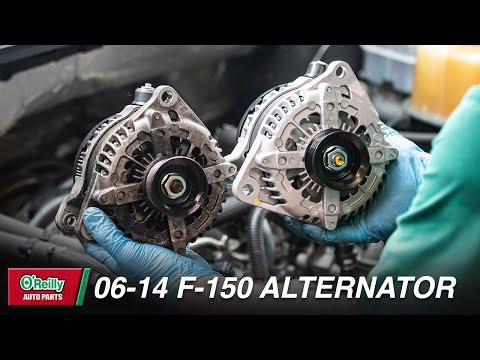

🔧 Alternator - Replacement

Your alternator charges the battery and powers the electrical system while the engine runs. If it’s failing, you may see a battery light, dim lights, or a dead battery. On your F-150, this job is usually done from the top with the intake duct removed for access.

Difficulty Level: Intermediate | Estimated Time: 2-3 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. The alternator has constant battery power.
• Do not short the alternator output terminal to ground.
• Let the engine cool before working near the belt and exhaust area.
• Keep hands and tools away from the serpentine belt path.
• Use jack stands only if you raise the truck. Never work under a truck supported by a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 1/2-inch ratchet
• 3/8-inch ratchet
• Ratchet extension set
• Serpentine belt tool (specialty)
• Torque wrench
• Flat-blade trim tool
• Safety glasses
• Mechanic gloves
• Jack stands

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator mounting bolts - Qty: 1 set

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the ignition off and remove the key or fob from the vehicle.
• Let the engine cool completely.
• Disconnect the negative battery cable before touching the alternator wiring.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to remove the negative battery cable from the battery terminal.
• Move the cable aside so it cannot spring back and touch the battery post.
• Keep the cable isolated.

Step 2: Remove intake ducting for access

• Use a flat-blade trim tool and 8mm socket to remove the air inlet tube or intake duct parts blocking access to the alternator.
• Unclip any attached hoses or wiring connectors carefully.

Step 3: Release belt tension

• Use a serpentine belt tool (specialty) or 15mm socket on the belt tensioner.
• Rotate the tensioner to unload the belt, then slip the belt off the alternator pulley.
• Note the belt routing before removing it.

Step 4: Unplug the alternator

• Use a 10mm socket to remove the protective cover from the alternator power stud if equipped.
• Remove the main power cable nut with a 13mm socket.
• Unplug the electrical connector by pressing the lock tab and pulling it straight out.
• Do not pull on the wires.

Step 5: Remove the alternator

• Use a 15mm socket and ratchet extension to remove the alternator mounting bolts.
• Lift the alternator out of the engine bay.
• If it feels stuck, wiggle it gently while lifting.
• Torque on installation: alternator mounting bolts to 25 Nm (18 ft-lbs).

Step 6: Install the new alternator

• Set the new alternator in place and start the mounting bolts by hand.
• Use a 15mm socket to tighten the bolts evenly.
• Reconnect the electrical connector and install the main power cable with a 13mm socket.
• Torque the main power nut to 13 Nm (115 in-lbs).

Step 7: Reinstall the belt

• Use the serpentine belt tool (specialty) or 15mm socket to rotate the tensioner again.
• Route the belt back onto the pulleys and make sure it sits fully in every groove.
• Release the tensioner slowly.
• Double-check the belt grooves.

Step 8: Reassemble the intake and reconnect power

• Reinstall the intake ducting using the 8mm socket and trim tool.
• Reconnect the negative battery cable with a 10mm socket.
• Torque the battery terminal to 5 Nm (44 in-lbs).

---

✅ After Repair

• Start the engine and listen for belt noise or rubbing.
• Check that the battery light is off.
• Use a multimeter if available; charging voltage should typically be about 13.5-14.8 volts with the engine running.
• Inspect the alternator wiring and belt path one more time after the test run.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,050 (parts + labor)

DIY Cost: $220-$450 (parts only)

You Save: $430-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
