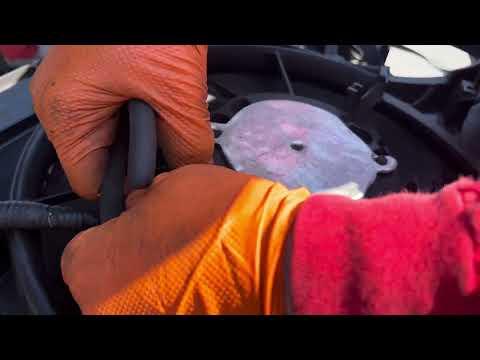

🔧 Alternator - Replacement

The alternator on your Explorer charges the battery and powers the electrical system while the engine runs. If it is failing, you may see battery warnings, dim lights, or a no-start condition. This job is a moderate repair because belt tension and tight engine-bay access take care and the right tools.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. This prevents accidental short circuits.
• Do not work on the serpentine belt with the engine running.
• The belt tensioner is spring-loaded and can snap back suddenly. Keep fingers clear.
• Let the engine cool before starting. The alternator sits near hot components.
• Use jack stands if you raise the vehicle. Never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8-inch ratchet
• 3/8-inch breaker bar
• Torque wrench
• Belt routing diagram
• Flat-blade screwdriver
• Trim clip removal tool
• Jack stands (rated 3-ton minimum)
• Floor jack (rated 3-ton minimum)
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator mounting bolts - Qty: 1 set
• Battery terminal cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Open the hood and make sure the engine is completely cool.
• Save any radio or memory settings before disconnecting the battery.
• Disconnect the negative battery terminal with an 8mm socket.
• If the belt is cracked or glazed, replace it now while access is open.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect power

• Use an 8mm socket to remove the negative battery cable.
• Move the cable aside so it cannot spring back and touch the terminal.

Step 2: Remove the engine cover and air intake duct

• Remove the engine cover by hand if equipped.
• Use a flat-blade screwdriver or 10mm socket to loosen the intake tube clamps.
• Remove the air intake duct for better access to the belt and alternator.

Step 3: Remove the serpentine belt

• Use a 3/8-inch breaker bar on the belt tensioner.
• Rotate the tensioner to release belt tension.
• Slip the belt off the alternator pulley first, then slowly release the tensioner.
• Take a photo of the belt routing first.

Step 4: Remove the alternator electrical connections

• Use a 10mm socket to remove the battery cable nut on the alternator.
• Unplug the electrical connector by pressing the locking tab and pulling straight off.
• Keep the cable from touching metal parts.

Step 5: Remove the alternator

• Use a 13mm socket and 15mm socket to remove the alternator mounting bolts.
• Support the alternator with one hand as you remove the last bolt.
• Work the alternator out of the engine bay. You may need to tilt it for clearance.

Step 6: Install the new alternator

• Set the new alternator in place and start all mounting bolts by hand.
• Tighten the alternator bolts with a torque wrench.
• Torque to 40 Nm (30 ft-lbs) unless your replacement alternator or fastener kit specifies otherwise.
• Reconnect the electrical connector and battery cable. Tighten the cable nut with a 10mm socket.

Step 7: Reinstall the serpentine belt

• Route the belt over all pulleys using the belt routing diagram.
• Use the 3/8-inch breaker bar to rotate the tensioner again.
• Slip the belt onto the alternator pulley last.
• Check that the belt sits fully in every pulley groove.

Step 8: Reassemble the intake and battery

• Reinstall the intake duct and tighten the clamps with a flat-blade screwdriver or 10mm socket.
• Reinstall the engine cover if removed.
• Reconnect the negative battery cable with an 8mm socket.

---

✅ After Repair

• Start the engine and watch for the battery warning light.
• Listen for belt squeal or pulley noise.
• Check the belt tracking while the engine is idling.
• Use a multimeter if available. Charging voltage should usually be around 13.5-14.8 volts with the engine running.
• Test the headlights, blower, and rear defrost to confirm charging system operation.

---

💰 DIY vs Shop Cost

Shop Cost: $600-$1,100 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $420-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
