🔧 Wrangler - Alternator Replacement

The alternator keeps your battery charged and powers electrical systems while the engine runs. On your Wrangler, you’ll remove the serpentine belt, unplug the alternator wiring, then unbolt and swap the alternator.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching alternator wiring to prevent short circuits.
• ⚠️ Let the engine cool; you’ll work near hot exhaust and the radiator fan area.
• ⚠️ Support the hood securely and keep loose clothing away from pulleys/belt paths.
• ⚠️ Never pry on the alternator terminals; the plastic connectors can crack.

---

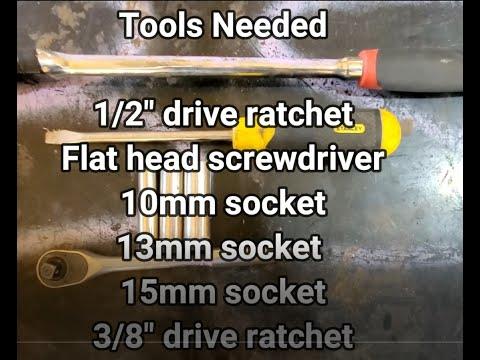

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 3/8" drive torque wrench (10-150 ft-lbs range)
• Socket set: 10mm, 13mm, 15mm
• Serpentine belt tool 3/8" drive (specialty)
• Flat trim clip tool
• Flathead screwdriver
• Needle-nose pliers
• Fender cover
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Battery terminal anti-corrosion washers - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Install wheel chocks behind the rear tires.
• Open the hood and install a fender cover to protect paint.
• Disconnect the battery: use a 10mm socket to remove the negative (-) cable and tuck it aside so it can’t spring back. Negative comes off first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the belt routing and alternator

• Use a work light and find the serpentine belt routing diagram (often on the radiator support area). If it’s missing, take a clear photo of the belt path before removal.
• Identify the alternator (aluminum body with a pulley and electrical plug on the back).

Step 2: Remove the engine cover (if equipped)

• Remove any push-pins with a flat trim clip tool, then lift the cover off by hand.

Step 3: Release tension and remove the serpentine belt

• Install a serpentine belt tool 3/8" drive (specialty) (or a 3/8" drive breaker bar) into the belt tensioner.
• Rotate the tensioner to relieve belt tension, then slide the belt off the alternator pulley by hand.
• Slowly let the tensioner return to rest. Don’t let it snap back.

Step 4: Unplug the alternator electrical connector

• Use a flathead screwdriver to gently lift the locking tab (if needed), then unplug the connector by hand.
• Connector lock tab = small plastic safety latch.

Step 5: Remove the alternator B+ power cable

• Pull back the rubber boot on the alternator power stud.
• Use a 13mm socket with a 3/8" drive ratchet to remove the nut holding the main power cable.
• Move the cable aside so it cannot touch metal. Battery is disconnected, but keep it safe.

Step 6: Unbolt and remove the alternator

• Use a 15mm socket and 3/8" drive ratchet to remove the alternator mounting bolts.
• Support the alternator with your free hand as the last bolt comes out, then lift the alternator out.
• If it’s stuck, wiggle it gently—avoid prying on the pulley or cracking brackets.

Step 7: Install the new alternator

• Set the new alternator into place by hand and start all mounting bolts by hand first to prevent cross-threading.
• Tighten the mounting bolts using a 3/8" drive torque wrench (10-150 ft-lbs range): Torque to 54 Nm (40 ft-lbs).

Step 8: Reconnect alternator wiring

• Install the main power cable onto the stud and tighten the nut using a 13mm socket: Torque to 13 Nm (115 in-lbs).
• Reinstall the rubber protective boot over the stud.
• Add a small amount of dielectric grease to the plug seal, then reconnect the electrical connector until it clicks.

Step 9: Reinstall/replace the serpentine belt

• Route the belt following your photo/diagram, leaving the alternator pulley for last.
• Use the serpentine belt tool 3/8" drive (specialty) to rotate the tensioner, slip the belt onto the alternator pulley, then slowly release the tensioner.
• Visually check that the belt ribs are fully seated in every pulley groove.

Step 10: Reconnect the battery

• Install battery terminal anti-corrosion washers if you’re using them.
• Reconnect the negative (-) battery cable using a 10mm socket and snug it firmly (do not overtighten).

---

✅ After Repair

• Start the engine and listen: there should be no belt squeal, chirp, or grinding.
• Check belt tracking with the hood open: the belt should run centered on pulleys with no wobble.
• If you have a voltmeter, charging voltage at the battery with engine running is typically around 13.5–14.7V.
• Verify the battery/charging warning light stays off.
• Recheck for loose tools, then take a short test drive and recheck belt seating.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$950 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $320-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
