🔧 Alternator - Replacement

The alternator charges the battery and powers the electrical system while the engine runs. If it is failing, you may see a battery warning light, dim lights, or a dead battery after driving.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery terminal before starting. The alternator has always-hot power connections.
• Do not let a wrench touch the alternator main terminal and engine metal at the same time.
• Keep hands clear of the belt, pulleys, and fan when releasing belt tension.
• Let the engine cool fully before working near the exhaust and radiator area.
• Wear safety glasses and gloves.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 12mm socket
• 14mm socket
• Ratchet
• Long-handled breaker bar
• Torque wrench
• Flat-blade screwdriver
• Belt tensioner tool (specialty)
• Jack and jack stands
• Wheel chocks
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator mounting hardware - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and make sure you have the radio code or presets noted if needed.
• Disconnect the negative battery cable before touching the alternator.
• If the belt looks cracked or glazed, replace it now.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect power

• Use a 10mm wrench to loosen the negative battery terminal and remove it from the battery post.
• Set the cable aside so it cannot spring back and touch the post.

Step 2: Remove the air intake parts for access

• Use a flat-blade screwdriver to loosen the intake duct clamp.
• Remove any intake snorkel or duct pieces that block access to the alternator.
• Keep clips and screws in a tray.

Step 3: Lift the front of the vehicle if needed

• If access from below is limited, raise the front with a jack and support it securely with jack stands.
• Do not work under the car with only a jack.

Step 4: Remove the serpentine belt

• Use a belt tensioner tool (specialty) or a breaker bar on the tensioner to release belt tension.
• Slip the belt off the alternator pulley and slowly release the tensioner.
• Remove the belt from the engine bay.

Step 5: Disconnect the alternator wiring

• Use a 10mm wrench to remove the nut from the main charging cable on the back of the alternator.
• Unplug the electrical connector by pressing the lock tab and pulling straight off.
• Move the wires aside so they do not get pinched.

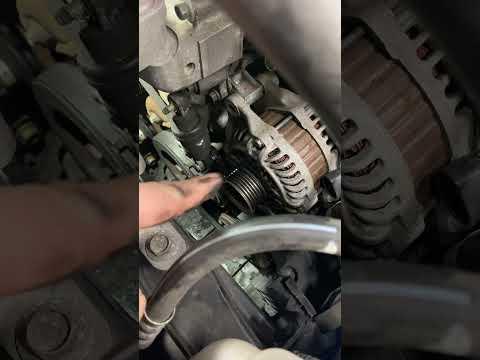

Step 6: Remove the alternator mounting bolts

• Use a 12mm socket and 14mm socket to remove the alternator bolts.
• Support the alternator with one hand while removing the last bolt.
• Lift the alternator out of the engine bay.

Step 7: Install the new alternator

• Set the new alternator in place and start all bolts by hand.
• Use the 12mm socket and 14mm socket to snug the bolts evenly.
• Torque to 42 Nm (31 ft-lbs) for the alternator mounting bolts.

Step 8: Reconnect the electrical connections

• Reconnect the main charging cable and tighten the nut with a 10mm wrench.
• Torque to 9 Nm (80 in-lbs) for the alternator terminal nut.
• Plug in the alternator connector until it clicks.

Step 9: Reinstall the serpentine belt

• Route the belt exactly the same way it came off.
• Use the belt tensioner tool (specialty) or breaker bar to release tension and slip the belt onto the alternator pulley.
• Check that the belt sits fully in every pulley groove.

Step 10: Reassemble and reconnect power

• Reinstall the intake duct and any parts removed for access using the flat-blade screwdriver.
• Reattach the negative battery terminal with the 10mm wrench.
• Make sure the battery clamp is tight and does not rotate.

---

✅ After Repair

• Start the engine and watch the belt for smooth operation.
• Check that the battery warning light goes out.
• Test charging voltage if you have a multimeter; you want about 13.5-14.7 volts with the engine running.
• Listen for squealing or grinding sounds.
• Inspect around the alternator for loose wires or misrouted belt paths.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000-₹28,000 (parts + labor)

DIY Cost: ₹6,500-₹15,000 (parts only)

You Save: ₹5,500-₹13,000 by doing it yourself!

Shop labor rates vary but typically run ₹1,500-₹4,000/hour. This repair takes a shop approximately 2-4 hours.

---
