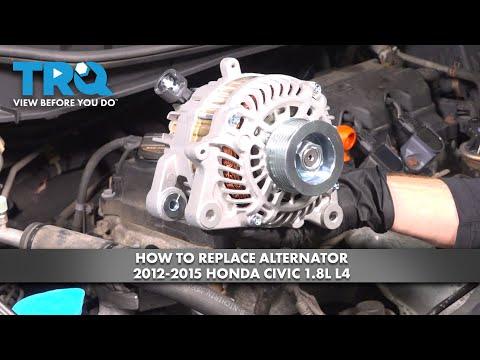

🔧 Civic - Alternator Replacement

Your alternator charges the battery and powers the electrical system while the engine runs. If it’s failing, you may see a battery light, dim lights, or a no-start after driving. This job involves removing the drive belt and swapping the alternator, then verifying charging voltage.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable first to prevent shorts.
• ⚠️ Do not let a tool bridge the alternator B+ terminal to metal.
• ⚠️ Keep hands clear of the belt path and pulleys.
• ⚠️ Support the car with jack stands if you go underneath.
• ⚠️ Work on a cool engine to avoid burns.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 10mm wrench
• 12mm wrench
• 14mm wrench
• 3/8" ratchet
• 3/8" torque wrench (10–80 ft-lbs range)
• 6" socket extension
• Breaker bar (3/8" or 1/2" drive)
• Flathead screwdriver
• Trim clip removal tool
• Flashlight
• Multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1 Recommended if belt is cracked/glazed
• Electrical contact cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Install wheel chocks behind the rear wheels.
• Open the hood and note the belt routing (take a clear photo). This saves headaches later
• Disconnect the battery: use a 10mm wrench to remove the negative (-) cable and move it aside so it can’t spring back.
• If you want more room from below, raise the front with a floor jack and support with jack stands.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the air intake duct (for access)

• Use a flathead screwdriver to loosen the hose clamp(s) on the intake duct.
• Remove any push-clips using a trim clip removal tool, then lift the duct/snorkel out of the way.

Step 2: Relieve belt tension and remove the serpentine belt

• A serpentine belt is the single belt that drives accessories like the alternator.
• Use a 14mm socket with a breaker bar on the belt tensioner bolt and rotate the tensioner to relieve tension.
• Slip the belt off the alternator pulley first, then slowly release the tensioner back to rest.
• If reusing the belt, keep it routed on the other pulleys or set it aside in the same orientation.

Step 3: Unplug the alternator electrical connector

• Use a flashlight to see the plug and locking tab.
• Press the lock tab and pull the connector straight out (do not yank on wires).
• Spray a small amount of electrical contact cleaner if the connector is dirty.

Step 4: Remove the alternator B+ power cable

• Pull back the rubber boot from the alternator power stud.
• Use a 10mm socket to remove the nut, then lift the cable off and tuck it safely aside.
• Reinstall note: Torque to 9.8 Nm (87 in-lbs).

Step 5: Remove the alternator mounting bolts

• Support the alternator with one hand while loosening fasteners.
• Use a 12mm socket with a 3/8" ratchet and 6" extension to remove the alternator mounting bolts.
• If one bolt is tight, switch to a breaker bar for the first crack loose.

Step 6: Remove the alternator from the engine bay

• Work the alternator out by rotating it slightly to clear hoses and brackets.
• If space is tight, you can reposition the intake duct further using a flathead screwdriver to loosen clamps more.

Step 7: Install the new alternator

• Place the alternator into position and start all mounting bolts by hand to avoid cross-threading.
• Use a 12mm socket to snug the bolts, then use a torque wrench to finish tightening: Torque to 44 Nm (33 ft-lbs).

Step 8: Reconnect the alternator wiring

• Install the B+ cable and nut using a 10mm socket: Torque to 9.8 Nm (87 in-lbs).
• Re-seat the rubber boot fully over the terminal.
• Plug the electrical connector back in until it clicks.

Step 9: Reinstall the serpentine belt

• Route the belt exactly like your photo (make sure it sits in the grooves on every pulley).
• Use a 14mm socket and breaker bar to rotate the tensioner, then slip the belt over the alternator pulley last.
• Slowly release the tensioner.
• Misaligned belts squeal immediately

Step 10: Reinstall the air intake duct

• Reposition the duct and tighten clamps with a flathead screwdriver.
• Reinstall any push-clips by hand.

Step 11: Reconnect the battery

• Use a 10mm wrench to reinstall the negative (-) cable and tighten it snug.

---

✅ After Repair

• Start the engine and confirm the battery warning light turns off.
• With the engine idling, use a multimeter at the battery terminals: you should typically see about 13.8–14.7 volts.
• Listen for belt squeal and watch the belt for wobble; shut off and re-check belt seating if anything looks off.
• After a short test drive, recheck the alternator area for loose wiring and recheck belt alignment.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$900 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $320-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
