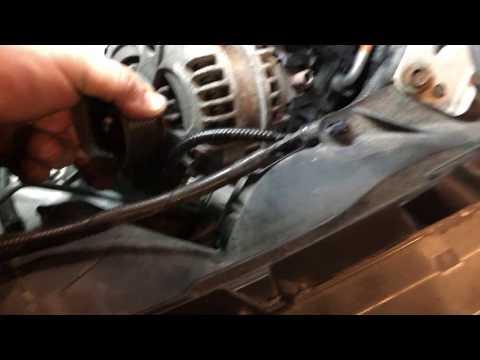

🔧 Alternator - Replacement

Your CR-V’s alternator charges the battery and powers the electrical system while the engine runs. If the battery light is on, the battery keeps dying, or voltage is low, replacing the alternator is the right fix.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before starting. The alternator has always-hot power at the main terminal.
• Do not short the alternator output terminal to ground. That can damage the charging system.
• Keep hands, tools, and clothing away from the serpentine belt and pulleys while releasing belt tension.
• Let the engine cool down before working near the radiator fan and upper engine bay.
• If the vehicle has a radio code or memory settings, save them before disconnecting the battery.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 10mm wrench
• 10mm socket
• 12mm socket
• 14mm socket
• Ratchet
• 1/2-inch breaker bar
• Socket extension
• Torque wrench
• Flat-blade screwdriver
• Trim clip tool
• Jack stands
• Floor jack (rated 3-ton minimum)
• Wheel chocks
• Safety glasses
• Mechanic gloves

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Alternator mounting hardware - Qty: 1 set

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Turn the ignition off and remove the key or fob from the vehicle.
• Disconnect the negative battery terminal with a 10mm wrench.
• If the belt is cracked, glazed, or noisy, replace it now while access is open.
• Take a quick photo of the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm wrench to remove the negative battery cable.
• Move the cable aside so it cannot spring back and touch the terminal.

Step 2: Remove intake ducting for access

• Use a flat-blade screwdriver and trim clip tool to remove the air intake duct or snorkel pieces blocking access to the alternator.
• Set the clips and fasteners aside in order.

Step 3: Release the serpentine belt

• Use a 14mm socket, ratchet, and breaker bar on the belt tensioner.
• Rotate the tensioner to relieve belt tension, then slip the belt off the alternator pulley.
• Double-check the belt path before removing it.

Step 4: Disconnect alternator wiring

• Use a 10mm socket to remove the nut from the alternator output terminal.
• Unplug the electrical connector by pressing the locking tab and pulling it straight out.
• Cover the power terminal so it cannot touch metal.

Step 5: Remove the alternator mounting bolts

• Use a 12mm socket and 14mm socket with a ratchet and extension to remove the upper and lower alternator bolts.
• Support the alternator with one hand as the last bolt comes out.

Step 6: Remove the alternator

• Lift the alternator out of the engine bay.
• If it feels stuck, wiggle it gently while guiding it past the nearby hoses and brackets.

Step 7: Install the new alternator

• Position the replacement alternator in place by hand.
• Install the mounting bolts finger-tight first, then snug them with a 12mm socket and 14mm socket.
• Torque to factory specification.
• Do not fully tighten one bolt before the others start.

Step 8: Reconnect wiring

• Reconnect the electrical plug until it clicks.
• Reinstall the alternator output wire and nut using a 10mm socket.
• Torque to factory specification.

Step 9: Reinstall the belt

• Use the 14mm socket, ratchet, and breaker bar to rotate the tensioner again.
• Route the belt over the alternator pulley and confirm every rib sits correctly in each pulley groove.
• Release the tensioner slowly.

Step 10: Reassemble intake parts and battery

• Reinstall any intake ducting and clips with the trim clip tool and flat-blade screwdriver.
• Reconnect the negative battery cable with a 10mm wrench.

---

✅ After Repair

• Start the engine and confirm the battery warning light goes out.
• Listen for belt squeal or pulley noise.
• Check charging voltage at the battery if you have a multimeter. You want normal charging output with the engine running.
• Verify the belt tracks straight and does not walk off any pulley.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$950 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $250-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
