🔧 RAV4 - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. On your RAV4, replacing it mainly involves disconnecting the battery, removing the drive belt, unbolting the alternator, then reinstalling everything with correct routing and tightness.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable first to prevent shorts.
• ⚠️ Do not let a tool touch the alternator “B+” terminal and metal at the same time.
• ⚠️ Support the vehicle with jack stands if you go through the wheel well; never rely on a floor jack alone.
• ⚠️ Keep fingers clear of the belt and tensioner (spring-loaded).
• ⚠️ Work on a cool engine to avoid burns.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 21mm lug nut socket
• 1/2" breaker bar
• 3/8" ratchet
• 3/8" extension set
• 10mm socket
• 12mm socket
• 14mm socket
• 14mm box-end wrench
• Torque wrench (10–100 ft-lbs range)
• Flat trim clip tool
• Needle-nose pliers
• Digital multimeter
• Small flathead screwdriver

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Battery terminal anti-corrosion pads or spray - Qty: 1
• Plastic push clips (fender liner/splash shield) - Qty: 5-10

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and make sure the engine is cool.
• If you’ll access the belt from the passenger-side wheel well, loosen the passenger-front lug nuts slightly with a 21mm lug nut socket and 1/2" breaker bar before lifting.
• Battery disconnect: use a 10mm socket to remove the negative terminal and tuck it aside so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen and remove the negative (-) battery cable.
• This prevents accidental electrical shorts.

Step 2: Remove the air intake ducting (for room)

• Use a 10mm socket to loosen/remove the fasteners on the air intake duct (the tube leading to the air box/throttle area).
• Use needle-nose pliers if you need help releasing hose clamps.
• Move the ducting aside so you can reach the alternator area more easily.

Step 3: Raise the passenger-front corner (if needed for belt access)

• Place wheel chocks at the rear wheels.
• Lift the passenger-front with a floor jack (rated 3-ton minimum) and set it on jack stands (rated 3-ton minimum).
• Remove the wheel using a 21mm lug nut socket.

Step 4: Remove the passenger-side splash shield/fender liner section

• Use a flat trim clip tool and/or 10mm socket to remove the clips/bolts holding the access panel/liner.
• Pull the liner back enough to reach the belt tensioner.

Step 5: Remove the serpentine belt

• From the wheel well, put a 14mm box-end wrench (or 14mm socket with 3/8" ratchet) on the belt tensioner hex.
• Rotate the tensioner to relieve belt tension, then slide the belt off one pulley (usually easiest at the alternator pulley).
• Slowly release the tensioner back to its resting position.
• Take a quick photo of belt routing first.

Step 6: Unplug the alternator electrical connector

• From the top, locate the alternator’s small plug connector.
• Use a small flathead screwdriver to gently help lift the lock tab if it’s stubborn, then pull the connector off by hand.

Step 7: Remove the alternator B+ cable

• Pull back the rubber boot on the alternator output stud.
• Use a 12mm socket to remove the nut holding the battery charge cable to the alternator.
• Torque on install: Torque to 9.8 Nm (87 in-lbs)

Step 8: Remove alternator mounting bolts

• Use a 14mm socket with a 3/8" ratchet and 3/8" extensions to remove the alternator mounting bolts.
• Support the alternator with your free hand as the last bolt comes out.
• Torque on install: Torque to 43 Nm (32 ft-lbs)

Step 9: Remove the alternator from the engine bay

• Carefully maneuver the alternator out (usually out the top once the intake ducting is moved).
• If it’s tight, slightly reposition nearby hoses/wiring by hand—do not yank on them.

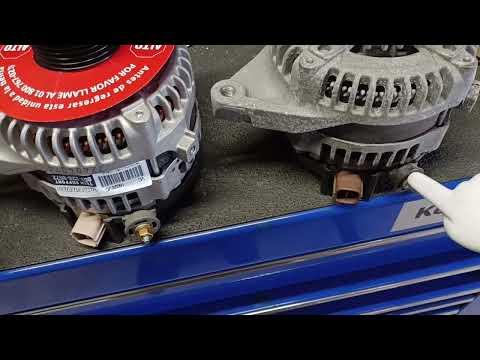

Step 10: Install the new alternator

• Set the new alternator into place and start the mounting bolts by hand to avoid cross-threading.
• Use a 14mm socket to snug the bolts, then use a torque wrench.
• Torque: Torque to 43 Nm (32 ft-lbs)

Step 11: Reconnect alternator wiring

• Install the B+ cable and nut using a 12mm socket, then torque it.
• Torque: Torque to 9.8 Nm (87 in-lbs)
• Reinstall the rubber boot fully over the terminal.
• Plug in the alternator connector until it clicks (no tool needed).

Step 12: Reinstall the serpentine belt

• Route the belt correctly over all pulleys (match your photo).
• Use a 14mm box-end wrench on the tensioner to relieve tension, slip the belt fully onto the last pulley, then slowly release the tensioner.
• Visually check the belt is centered in every pulley groove.

Step 13: Reassemble the wheel well (if removed)

• Reinstall the splash shield/fender liner using the flat trim clip tool and 10mm socket.
• Reinstall the wheel using a 21mm lug nut socket.
• Lower the vehicle, then tighten lug nuts with a torque wrench.
• Torque: Torque to 103 Nm (76 ft-lbs)

Step 14: Reinstall the air intake ducting

• Reposition the intake ducting and tighten clamps/bolts using a 10mm socket.
• Make sure no hoses are left disconnected.

Step 15: Reconnect the battery and check charging voltage

• Reconnect the negative battery terminal using a 10mm socket.
• Apply battery terminal anti-corrosion pads or spray if you have it.
• Start the engine and use a digital multimeter at the battery posts.
• Normal charging is typically about 13.5–14.7V with the engine running.

---

✅ After Repair

• Listen for belt squeal or chirping; if you hear it, shut off and re-check belt seating.
• Verify the battery/charging warning light stays off.
• Recheck the alternator area for any loose tools, rags, or unplugged connectors.
• After a short drive, do a quick recheck for belt alignment.

---
