🔧 Explorer - Alternator Replacement

The alternator charges the battery and powers the electrical system while the engine runs. On your Explorer, replacement is mostly about creating room at the front of the engine, releasing the belt, swapping the alternator, and then re-installing everything carefully.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• 🛑 Disconnect the negative battery cable before touching the alternator wiring; the main cable is always “hot” if connected.
• 🧤 Let the engine cool fully; you’ll work near hot parts and the radiator fan area.
• 🧰 Support the vehicle securely on jack stands if you lift it; never rely on a jack alone.
• ⚡ Do not pry on or short the alternator B+ terminal to ground; it can arc and cause damage/injury.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 1/4" drive ratchet
• 3/8" drive ratchet
• 1/4" drive extension set
• 3/8" drive extension set
• Metric socket set (8mm-19mm)
• Torx bit set
• Serpentine belt tool or 3/8" breaker bar
• Trim clip removal tool
• Flat-blade screwdriver
• Torque wrench (3/8" drive)
• Battery terminal wrench (10mm)
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Battery terminal anti-corrosion washers or terminal protectant - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and remove any loose jewelry/metal watches.
• Disconnect the battery negative cable using a 10mm battery terminal wrench and isolate it so it can’t spring back.
• Take a quick photo of the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm battery terminal wrench to loosen the negative terminal clamp and remove it from the battery post.
• Move the cable aside and make sure it cannot touch the battery again.

Step 2: Remove the upper engine cover/intake ducting (if equipped)

• Use a flat-blade screwdriver to loosen intake hose clamps (if present).
• Use a trim clip removal tool to pop any plastic retainers without breaking them.
• Use a metric socket as needed to remove any bolts holding covers/ducts.

Step 3: Raise the front (only if needed for access)

• Use a floor jack (rated 3-ton minimum) to lift at the proper front jacking point.
• Set the vehicle onto jack stands (rated 3-ton minimum) and re-check stability.

Step 4: Release the serpentine belt tension

• Locate the belt tensioner on the front of the engine.
• Install a serpentine belt tool or 3/8" breaker bar into the tensioner drive and rotate to relieve belt tension.
• Slip the belt off the alternator pulley first, then slowly release the tensioner.
• Don’t let the tensioner snap back.

Step 5: Unplug the alternator electrical connector

• Find the small plug on the alternator (voltage regulator connector).
• Press the locking tab and pull it straight out by hand; use a flat-blade screwdriver gently only if the tab is stubborn.

Step 6: Remove the alternator main power cable (B+)

• Remove the protective rubber boot over the alternator power stud.
• Use the correct metric socket to remove the retaining nut, then lift the cable off the stud.
• Position the cable so it cannot touch metal while you work.

Step 7: Remove alternator mounting fasteners

• Use a 3/8" drive ratchet, metric sockets, and extensions to remove the alternator mounting bolts.
• Support the alternator with one hand as the last bolt comes out.
• Remove the alternator from the bracket, working it out carefully around hoses/wiring.

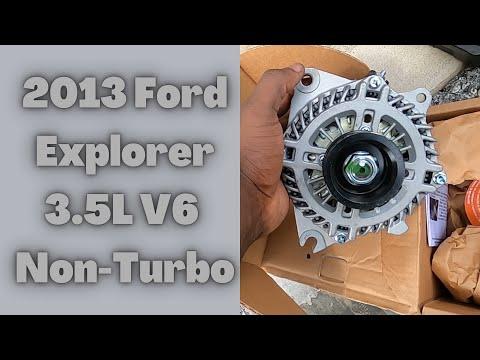

Step 8: Install the new alternator

• Set the new alternator into position and start all mounting bolts by hand to avoid cross-threading.
• Use a 3/8" drive ratchet to snug the bolts evenly.
• Use a torque wrench (3/8" drive) and torque to Ford specification for the alternator mounting bolts.
• If it won’t sit flat, don’t force it.

Step 9: Reconnect alternator wiring

• Install the main B+ cable onto the stud and thread the nut by hand.
• Use a torque wrench (3/8" drive) and torque to Ford specification for the B+ terminal nut.
• Reinstall the rubber protective boot.
• Plug the alternator electrical connector back in until it clicks.

Step 10: Reinstall the serpentine belt

• Route the belt according to the under-hood belt routing diagram (or your photo).
• Use a serpentine belt tool or 3/8" breaker bar to rotate the tensioner and slip the belt over the last pulley.
• Visually check that the belt ribs are seated correctly on every pulley.

Step 11: Reinstall intake ducting/covers and lower the vehicle

• Reinstall any ducts/covers using your metric sockets, ratchets, and trim clip removal tool.
• If raised, use the floor jack to lift slightly, remove jack stands, and lower safely.

Step 12: Reconnect the battery

• Install the negative terminal and tighten with a 10mm battery terminal wrench.
• Apply battery terminal protectant if you have it.

---

✅ After Repair

• Start the engine and confirm the charge warning light on the dash turns off after startup.
• Listen for belt squeal; if present, shut off and re-check belt routing and seating.
• If you have a multimeter, check charging voltage at the battery with the engine running (typically ~13.5–14.8V).
• Recheck for any loose tools/rags in the engine bay.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$1,000 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $320-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
