🔧 Equinox - Alternator Replacement

Replacing the alternator on your Equinox involves disconnecting the battery, removing the serpentine belt, unplugging the alternator wiring, and swapping the unit. Access and the exact fastener locations can change depending on whether your Equinox is FWD or AWD.

Difficulty Level: Intermediate | Estimated Time: 2.0-4.0 hours

---

⚠️ Safety & Precautions

• ⚡ Disconnect the negative battery cable first to prevent a short.
• 🔥 Work on a cold engine; the exhaust/manifold area can burn you.
• 🧍 Support the vehicle with jack stands if you’ll be working from underneath.
• 🧤 Keep fingers clear of the belt path; the tensioner is spring-loaded.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive breaker bar
• Socket set (8mm, 10mm, 13mm, 15mm)
• Wrench set (10mm, 13mm, 15mm)
• Serpentine belt tool or 1/2" drive long handle ratchet
• Trim clip removal tool
• Flathead screwdriver
• Torque wrench (10-150 ft-lbs)
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator electrical terminal nut cover (if damaged) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and take a clear photo of the belt routing label (or draw the routing).
• Disconnect the battery: use a 10mm wrench to remove the negative cable and isolate it so it can’t spring back.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Before I give you the exact access path + bolt torque specs, I need 1 detail:

• Is your Equinox FWD or AWD?
• If you’re not sure, tell me if there’s a rear driveshaft running to the back wheels (AWD).

Step 1: Remove the engine cover (if equipped)

• Pull straight up by hand; it’s held by rubber grommets.

Step 2: Create access to the belt and alternator

• Use a floor jack (rated 3-ton minimum) and jack stands (rated 3-ton minimum) to safely lift and support the front if you’ll be working from below.
• Remove any lower splash shield sections using a trim clip removal tool and 8mm socket as needed.

Step 3: Release serpentine belt tension

• Put a 1/2" drive breaker bar (or serpentine belt tool) into the belt tensioner.
• Rotate the tensioner to relieve tension, then slide the belt off the alternator pulley.
• Take a photo before removing the belt.

Step 4: Disconnect alternator electrical connections

• Unplug the alternator connector by releasing the lock tab using a flathead screwdriver gently.
• Remove the main charging cable nut using a 13mm socket, then lift the cable off.
• Reinstall the protective boot so it won’t snag or tear.

Step 5: Remove the alternator mounting bolts

• Use the appropriate socket (commonly 13mm socket or 15mm socket) with a 3/8" drive ratchet to remove the alternator bolts.
• Support the alternator with one hand as the last bolt comes out.

Step 6: Remove the alternator from the engine bay

• Work it out carefully without forcing it; rotate it as needed to clear hoses and wiring.
• If it feels “stuck,” double-check for a missed bolt or bracket fastener.

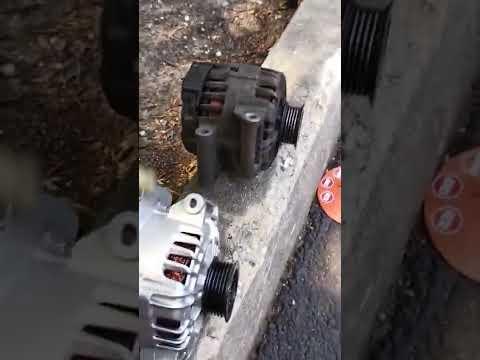

Step 7: Install the new alternator

• Position the new alternator and start all bolts by hand to avoid cross-threading.
• Tighten the bolts using a torque wrench (10-150 ft-lbs) to the correct spec (I’ll provide the exact numbers once you confirm FWD vs AWD).

Step 8: Reconnect wiring

• Install the main charge cable and tighten with a torque wrench (10-150 ft-lbs) (exact spec depends on configuration).
• Plug in the alternator connector until it clicks.

Step 9: Reinstall the serpentine belt

• Route the belt correctly using your photo/diagram.
• Rotate the tensioner with the 1/2" drive breaker bar and slip the belt onto the alternator pulley last.
• Visually confirm the belt is fully seated on every pulley groove.

Step 10: Reassemble and reconnect battery

• Reinstall any splash shields using an 8mm socket and clips with a trim clip removal tool.
• Reconnect the negative battery cable using a 10mm wrench.

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light is off.
• Listen for belt squeal; shut off and re-check belt routing if you hear noise.
• If you have a multimeter, check charging voltage at the battery with engine running (typically around 13.5–14.8V).
• Recheck the alternator electrical connections for tightness after a short drive.

---

💰 DIY vs Shop Cost

Shop Cost: $500-$950 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $320-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.0-3.5 hours.

---
