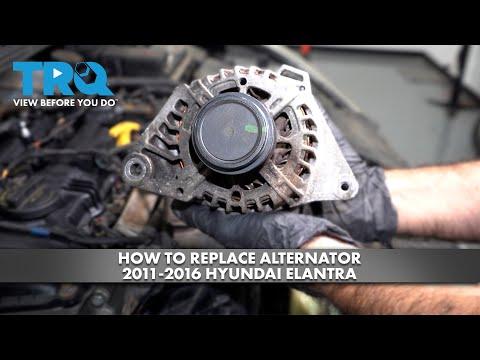

🔧 Elantra - Alternator Replacement

Your alternator charges the battery and powers the electrical system while the engine runs. Replacing it on your Elantra involves disconnecting the battery, removing the serpentine belt, unplugging the alternator wiring, and swapping the unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative terminal first to prevent a short.
• ⚠️ Let the engine cool; the exhaust and radiator area can burn you.
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Keep fingers clear of the belt and pulleys; the tensioner is spring-loaded.
• ⚠️ Do not pry on the alternator plastic parts or the radiator.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench (10–100 ft-lbs)
• 6" socket extension
• Serpentine belt tool or 17mm wrench
• Flat trim tool
• Phillips screwdriver
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 Recommended if belt is worn
• Battery terminal anti-corrosion spray - Qty: 1 Optional

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Pop the hood and take a quick photo of the belt routing (or locate the belt-routing sticker under the hood).
• If you’ll work from underneath, raise the front with a floor jack and support it on jack stands at the proper lift points.
• Tip: A “serpentine belt tensioner” is the spring-loaded arm that keeps the belt tight.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket and ratchet to loosen the negative battery terminal clamp.
• Remove the negative cable and position it so it cannot spring back onto the post.
• Torque to 5–7 Nm (44–62 in-lbs) when reinstalling the terminal later.

Step 2: Remove lower splash shield (if equipped)

• From underneath, use a Phillips screwdriver and flat trim tool to remove screws and plastic clips.
• Set the shield and fasteners aside in a small pile.

Step 3: Release serpentine belt tension

• Place a 17mm socket on the belt tensioner bolt and turn the tensioner to relieve belt tension.
• While holding the tensioner, slip the belt off the alternator pulley, then slowly let the tensioner return.
• Tip: Move slowly; the spring is strong.

Step 4: Unplug alternator electrical connectors

• Locate the alternator on the front of the engine.
• Unplug the small regulator connector by pressing the tab and pulling straight off by hand.
• Remove the rubber boot covering the main power wire (B+).
• Use a 12mm socket to remove the B+ nut, then lift the cable off the stud.
• Tip: Don’t pull on the wires—pull on the connector.

Step 5: Remove alternator mounting bolts

• Support the alternator with one hand.
• Use a 14mm socket, ratchet, and extension to remove the alternator mounting bolts.
• If it feels stuck in the bracket, wiggle it gently by hand—avoid prying on the radiator or plastic parts.

Step 6: Remove the alternator from the engine bay

• Work the alternator out carefully (it may come out easiest upward from the top, depending on your exact layout).
• Compare the old and new alternator (plug type, pulley alignment, mounting ears) before installing.

Step 7: Install the new alternator

• Set the alternator into place and start all mounting bolts by hand (this prevents cross-threading).
• Use a 14mm socket to snug the bolts, then finish with a torque wrench.
• Torque to 43–55 Nm (32–41 ft-lbs) for alternator mounting bolts.

Step 8: Reconnect alternator wiring

• Install the main B+ cable on the stud and tighten the nut using a 12mm socket.
• Torque to 9–12 Nm (80–106 in-lbs) for the B+ terminal nut.
• Reinstall the rubber boot over the B+ terminal.
• Plug in the small regulator connector until it clicks.

Step 9: Reinstall the serpentine belt

• Route the belt using your photo/belt diagram.
• Use a 17mm socket on the tensioner to relieve tension and slip the belt over the alternator pulley last.
• Double-check the belt is fully seated in every pulley groove.

Step 10: Reinstall splash shield (if removed)

• Reinstall the shield using the Phillips screwdriver and flat trim tool.
• Make sure no clips are missing and nothing hangs down.

Step 11: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.
• Torque to 5–7 Nm (44–62 in-lbs).

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light turns off.
• Listen for squealing or chirping; that usually means the belt is misrouted or not seated.
• With the engine idling, electrical loads on (headlights + blower), confirm stable charging (typically about 13.5–14.7V if you have a multimeter).
• Recheck the belt alignment after a short 5–10 minute drive.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $150-$450 (parts only)

You Save: $300-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
