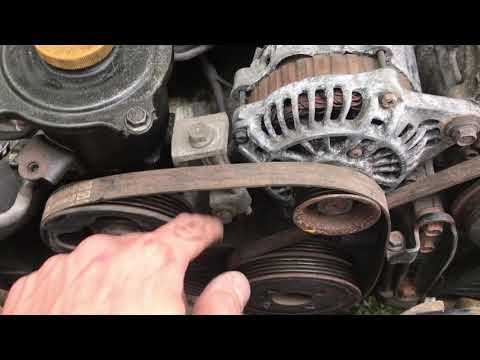

🔧 Forester - Alternator Replacement

The alternator charges your battery and powers the vehicle’s electrical system while the engine runs. Replacing it involves disconnecting the battery, removing the drive belt, unplugging the alternator wiring, and swapping the unit.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• Disconnect the battery negative terminal first to prevent a short at the alternator power cable.
• Work on a cool engine; the radiator fans can turn on unexpectedly on some vehicles—keep hands clear.
• Never let the alternator B+ cable touch ground/metal while connected to the battery.
• Support the vehicle properly if you raise it—use jack stands, not just a jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive extension set
• 10mm socket
• 12mm socket
• 14mm socket
• 14mm combination wrench
• Torque wrench (10–100 ft-lbs range)
• Trim clip remover
• Flathead screwdriver
• Serpentine belt tool (specialty)
• Small pick tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Battery terminal anti-corrosion washers - Qty: 1 set
• Electrical contact cleaner - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and take a quick photo of the belt routing (your phone photo is perfect).
• Disconnect the battery: use a 10mm socket to remove the negative terminal first, then the positive if needed.
• If you’re not sure which belt setup you have, look at the front of the engine:
  • One wide belt with a spring-loaded tensioner pulley = “single serpentine belt” setup.
  • Two separate belts with an adjuster bolt on the alternator = “manual adjuster” setup.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (-) terminal and remove it from the battery post.
• Tuck the cable end aside so it can’t spring back onto the post. Prevents accidental shorting.

Step 2: Remove the engine cover/air ducting (if equipped)

• Use a flathead screwdriver and trim clip remover to release any intake clips/push pins in your way.
• Use a 10mm socket to remove any small bolts holding the ducting if present.

Step 3: Relieve belt tension (choose your setup)

• Single serpentine belt (spring-loaded tensioner):
  • Place a 14mm socket on the tensioner arm bolt.
  • Rotate the tensioner to relieve tension, then slide the belt off the alternator pulley.
  • Go slow—spring tension is strong.
• Manual adjuster (alternator has an adjuster bolt):
  • Use a 12mm socket to loosen the alternator lock bolt(s) a few turns.
  • Use a 12mm socket or 12mm wrench (as equipped) to back off the adjuster bolt until the belt is loose.
  • Slip the belt off the alternator pulley.

Step 4: Unplug alternator wiring

• Unplug the alternator electrical connector by pressing the tab; use a small pick tool gently if the tab is stuck.
• Remove the rubber boot over the main power stud (B+).
• Use a 12mm socket to remove the B+ terminal nut and lift the cable off the stud.
• Torque to 9.8 Nm (7 ft-lbs) when reinstalling the B+ terminal nut.
• Spray the connector with electrical contact cleaner if it’s dusty/oily.

Step 5: Remove the alternator mounting bolts

• Support the alternator with one hand.
• Use a 14mm socket and 3/8" drive ratchet to remove the upper mounting bolt.
• Use a 14mm socket to remove the lower mounting/pivot bolt.
• Lift the alternator out of the bracket (you may need to wiggle it past hoses).
• Torque to 49 Nm (36 ft-lbs) for the alternator mounting bolts during reassembly.

Step 6: Install the new alternator

• Set the new alternator into position and hand-start the lower and upper bolts.
• Use a 14mm socket to snug both bolts evenly.
• Use a torque wrench to finish tightening: Torque to 49 Nm (36 ft-lbs).

Step 7: Reconnect alternator wiring

• Reinstall the B+ cable on the stud and start the nut by hand.
• Use a 12mm socket and torque wrench: Torque to 9.8 Nm (7 ft-lbs).
• Reinstall the rubber boot over the B+ stud.
• Plug in the alternator connector until it clicks.

Step 8: Reinstall and tension the belt (choose your setup)

• Single serpentine belt (spring-loaded tensioner):
  • Route the belt exactly like your photo and push it fully into each pulley groove.
  • Use a 14mm socket to rotate the tensioner and slip the belt onto the last pulley (often the alternator).
  • Release the tensioner slowly and re-check belt alignment on all pulleys.
• Manual adjuster:
  • Route the belt and use the 12mm socket to turn the adjuster bolt until the belt has proper tension.
  • Tighten the lock bolt(s) with a 12mm socket.
  • Torque to 24 Nm (18 ft-lbs) for the adjuster lock bolt(s).

Step 9: Reinstall intake ducting/engine cover

• Reinstall any ducts/covers removed earlier using a 10mm socket and reinstall clips with a trim clip remover.

Step 10: Reconnect the battery

• Reconnect the positive (+) if removed, then reconnect the negative (-).
• Use a 10mm socket to tighten the terminals snugly (do not over-tighten).

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light is off.
• With the engine running, watch the belt for 30 seconds to confirm it runs smooth and centered on every pulley.
• If you have a multimeter: with engine idling, charging voltage should typically be around 13.5–14.7V.
• Recheck belt tension/alignment after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: ₹12,000–₹25,000 (parts + labor)

DIY Cost: ₹6,000–₹18,000 (parts only)

You Save: ₹6,000–₹10,000 by doing it yourself!

Shop labor rates vary; this repair typically bills about 1.0–2.0 hours.

---
