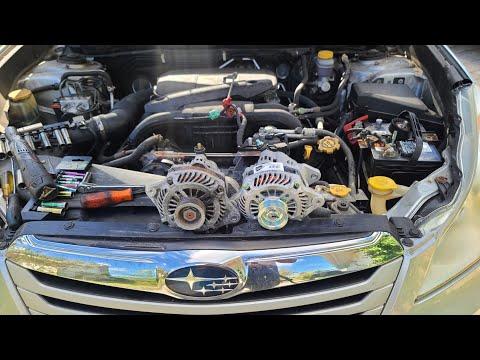

🔧 Outback - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. On your Outback, it’s mounted at the front of the engine and driven by the serpentine belt, so the job is mostly about gaining access, releasing belt tension, and swapping the unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• 🧤 Disconnect the battery negative cable first to prevent a short.
• ⚡ Never let a tool bridge the alternator B+ terminal to ground.
• 🔥 Work on a cool engine; the radiator/fans and exhaust areas can burn you.
• 🧱 If you raise the vehicle, support it on jack stands on solid, level ground.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench (10–100 ft-lbs range)
• 3" socket extension
• 6" socket extension
• 14mm combination wrench
• Flat-blade screwdriver
• Pliers
• Trim clip removal tool
• Digital multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the shifter in reverse (manual), and set the parking brake.
• Open the hood and remove any loose jewelry (rings can cause shorts).
• Disconnect the battery: use a 10mm socket to remove the negative terminal first, then isolate it so it can’t spring back.
• Take a quick photo of the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Create working room

• Remove the plastic intake snorkel/ducting as needed using a trim clip removal tool and flat-blade screwdriver.
• If the air box/top intake hose blocks access, loosen hose clamps with a flat-blade screwdriver and remove the air duct/air box fasteners with a 10mm socket.

Step 2: Release serpentine belt tension

• Find the belt tensioner (spring-loaded pulley). Use a 14mm combination wrench or 14mm socket on the tensioner bolt head and rotate to relieve tension.
• While holding tension off, slide the belt off the alternator pulley by hand.
• Slowly release the tensioner back to its resting position.
• Don’t let the tensioner snap back.

Step 3: Disconnect alternator electrical connections

• Remove the rubber boot covering the alternator main power stud.
• Use a 10mm socket to remove the nut from the B+ terminal and lift the cable off (set it aside so it can’t touch metal).
• Unplug the alternator connector by pressing the lock tab (use pliers gently if needed—don’t crush it).
• Optional: apply a thin film of dielectric grease to the connector seal before reassembly.

Step 4: Remove the alternator mounting bolts

• Remove the alternator upper mounting bolt(s) using a 12mm socket or 14mm socket (varies by bracket/position) with a 3/8" ratchet and socket extension.
• Remove the lower pivot/mounting bolt using a 14mm socket and 3/8" ratchet.
• Lift the alternator out of the engine bay.

Step 5: Install the new alternator

• Set the new alternator into place and start all mounting bolts by hand to avoid cross-threading.
• Tighten the lower pivot/mounting bolt using a 14mm socket and 3/8" torque wrench: Torque to 45 N·m (33 ft-lbs).
• Tighten the upper mounting bolt(s) using a 12mm socket or 14mm socket and 3/8" torque wrench: Torque to 25 N·m (18 ft-lbs).

Step 6: Reconnect the alternator wiring

• Reconnect the alternator electrical plug until it clicks.
• Reinstall the B+ cable onto the stud and tighten the nut using a 10mm socket and 3/8" torque wrench: Torque to 9 N·m (80 in-lbs).
• Reinstall the rubber boot over the B+ terminal.

Step 7: Reinstall the serpentine belt

• Route the belt correctly over all pulleys (use your photo as reference).
• Use a 14mm combination wrench or 14mm socket to rotate the tensioner and slip the belt fully onto the alternator pulley.
• Release the tensioner slowly, then visually confirm the belt is centered on every pulley.

Step 8: Reassemble intake parts

• Reinstall the air box/ducting and tighten clamps using a 10mm socket and flat-blade screwdriver.
• Reinstall any clips using a trim clip removal tool (to align) and push them in by hand.

Step 9: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket: Torque to 5 N·m (44 in-lbs).

---

✅ After Repair

• Start the engine and confirm there are no squeals (belt noise) and no burning smell.
• Use a digital multimeter at the battery terminals: engine running should typically read about 13.8–14.5V.
• Check that the charge/battery warning light stays off.
• Recheck belt alignment after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
