🔧 F-150 - Alternator Replacement

Replacing the alternator on your F-150 involves removing the serpentine belt from the alternator pulley, disconnecting the alternator wiring, unbolting the alternator, then installing the new one and re-tensioning the belt. The key is doing it safely (battery disconnected) and tightening the electrical and mounting fasteners to the correct OEM torque.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

Quick questions (so I can give the exact torque specs):

• 🔎 What amperage is printed on your alternator label (common: 155A / 175A / 200A)?
• 📷 Can you upload a clear photo of the alternator mounting area (so I can confirm the exact bracket/bolt layout)?

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the alternator wiring (the main alternator cable is always “hot” otherwise).
• ⚠️ Keep fingers/clothes clear of the belt path and pulleys.
• ⚠️ Let the engine cool before working near the radiator and front accessories.
• ⚠️ If you raise the truck, support it with jack stands—never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Battery terminal wrench 10mm
• Socket set 8mm, 10mm, 13mm, 15mm
• Ratchet 3/8"
• Breaker bar 1/2"
• Serpentine belt tool 1/2" drive (specialty)
• Torque wrench 10–150 Nm range
• Trim clip removal tool
• Flathead screwdriver
• Work light
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator (correct amperage for your F-150) - Qty: 1
• Serpentine belt - Qty: 1 (recommended if belt is cracked/glazed)
• Battery terminal anti-corrosion grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Chock the wheels using wheel chocks.
• Open the hood and remove any loose jewelry (rings/bracelets).
• Disconnect the battery: use a 10mm battery terminal wrench to remove the negative (-) cable and isolate it so it can’t spring back.
• Take a photo of the belt routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Access the front accessory drive

• If needed for access, raise the front slightly using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• Remove any air inlet ducting/covering that blocks access using an 8mm socket or flathead screwdriver (varies by intake clamp style).

Step 2: Release serpentine belt tension

• Install a serpentine belt tool 1/2" drive (specialty) or breaker bar 1/2" into the belt tensioner.
• Rotate the tensioner to relieve belt tension, then slide the belt off the alternator pulley.
• Slowly let the tensioner return—don’t let it snap back.
• Leave the belt routed on other pulleys if possible.

Step 3: Disconnect alternator electrical connections

• Unplug the alternator regulator connector by releasing the lock tab with a flathead screwdriver (gently).
• Remove the protective boot on the main output stud (B+).
• Remove the B+ retaining nut using a 10mm socket (some units use a different size).
• Move the cable aside so it cannot snag when the alternator comes out.

Step 4: Remove the alternator mounting bolts

• Remove the alternator mounting bolts using a 13mm socket and/or 15mm socket (bolt head sizes can vary by alternator/bracket).
• Support the alternator with one hand while removing the last bolt.

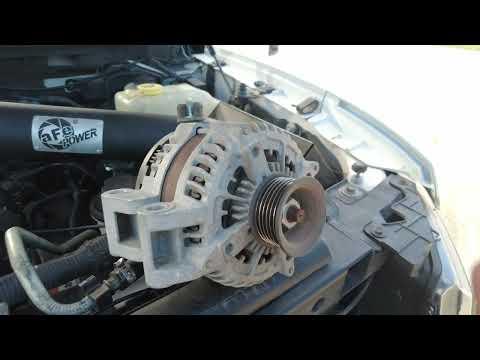

• Lift the alternator out of the engine bay.

Step 5: Install the new alternator

• Set the new alternator into position and hand-start all mounting bolts to avoid cross-threading.
• Tighten mounting bolts evenly using a ratchet 3/8".
• STOP HERE for torque specs: I’ll provide the exact OEM torque values once you answer the 2 questions above (amperage + photo). I don’t want you to guess on the mounting bolt torque or B+ stud nut torque.

Step 6: Reconnect alternator wiring

• Install the main B+ cable and nut using a 10mm socket.
• Reinstall the protective boot over the B+ terminal.
• Reconnect the regulator plug until it clicks.

Step 7: Reinstall the serpentine belt

• Route the belt according to the under-hood routing diagram (or your photo).
• Use the serpentine belt tool 1/2" drive (specialty) or breaker bar 1/2" to rotate the tensioner and slip the belt fully onto the alternator pulley.
• Visually confirm the belt is seated in every pulley groove.

Step 8: Reconnect battery

• Reconnect the negative battery cable using a 10mm battery terminal wrench.
• Apply a thin layer of battery terminal anti-corrosion grease to help prevent corrosion.

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light stays off.
• Listen for belt squeal or chirping; shut down and re-check belt seating if heard.
• If you have a multimeter, check charging voltage at the battery: typically around 13.5–14.8V with the engine running (varies with load/temperature).
• Recheck the B+ terminal boot is fully covering the stud.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$950 (parts + labor)

DIY Cost: $180-$550 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
