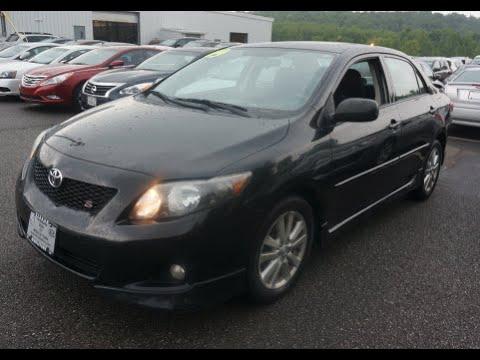

🔧 Corolla - Alternator Replacement

Your Corolla’s alternator charges the battery and powers the electrical system while the engine runs. Replacing it involves removing the drive belt, unplugging the alternator wiring, unbolting the alternator, and installing the new unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent electrical shorts.
• ⚠️ Never allow a tool to bridge the alternator power stud to metal (it can spark hard).
• ⚠️ Support the car with jack stands; never rely on a floor jack alone.
• ⚠️ Let the engine cool; the exhaust and radiator area can burn you.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-100 ft-lbs range)
• Socket set: 10mm, 12mm, 14mm
• Wrench set: 10mm, 12mm, 14mm
• Serpentine belt tool or long breaker bar
• Flathead screwdriver
• Trim clip remover
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1 (recommended if belt is cracked)
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Open the hood and make sure the key is out of the ignition.
• Disconnect the battery: use a 10mm wrench to remove the negative (-) battery terminal and tuck it aside so it can’t spring back.
• Take a quick photo of the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front of the car (for access)

• Use a floor jack (rated 2-ton minimum) to lift the front and set the car securely on jack stands.
• Use a flashlight to locate the alternator low on the passenger side/front of the engine.

Step 2: Remove the lower splash shield (if equipped)

• Use a trim clip remover and flathead screwdriver to remove the plastic clips.
• Use a 10mm socket to remove any small bolts holding the under cover, then set it aside.

Step 3: Relieve tension and remove the serpentine belt

• Find the belt tensioner (spring-loaded arm). A tensioner is the part that keeps the belt tight automatically.
• Use a serpentine belt tool or long breaker bar on the tensioner hex and rotate to relieve belt tension.
• Slip the belt off the alternator pulley first, then slowly release the tensioner.
• If reusing the belt, keep it clean and note the routing.

Step 4: Disconnect the alternator electrical connections

• Unplug the small alternator connector by pressing the tab (use a flathead screwdriver gently if it’s stuck).
• Remove the rubber boot on the main power cable.
• Use a 10mm socket to remove the nut from the alternator power stud and move the cable aside.
• Apply a thin film of dielectric grease to the connector seal during reassembly.

Step 5: Unbolt and remove the alternator

• Use a 14mm socket and ratchet to remove the alternator mounting bolts.
• Support the alternator with one hand as the last bolt comes out, then work it out through the bottom.
• If it feels stuck, wiggle—don’t pry hard.

Step 6: Install the new alternator

• Position the new alternator and start the mounting bolts by hand to avoid cross-threading.
• Use a 14mm socket to snug the bolts, then use a 3/8" drive torque wrench to finish: Torque to 39 Nm (29 ft-lbs).

Step 7: Reconnect alternator wiring

• Install the main power cable onto the stud and tighten with a 10mm socket: Torque to 9 Nm (80 in-lbs).
• Reinstall the rubber boot over the power stud.
• Plug the alternator connector back in until it clicks.

Step 8: Reinstall the serpentine belt

• Route the belt correctly on all pulleys (use your photo as reference).
• Use a serpentine belt tool or long breaker bar to rotate the tensioner, slip the belt onto the alternator pulley, then slowly release.
• Visually confirm the belt ribs are fully seated in every pulley groove.

Step 9: Reinstall splash shield and lower the car

• Reinstall the under cover using the trim clip remover and 10mm socket.
• Raise slightly with the floor jack (rated 2-ton minimum), remove jack stands, and lower the car.

Step 10: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm wrench: Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light is off.
• Listen for belt squeal; if you hear it, shut off and re-check belt seating.
• If you have a multimeter, check charging voltage at the battery: roughly 13.5-14.7V with engine idling.
• Re-check for any loose tools, and verify all connectors and the power cable boot are installed.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $150-$400 (parts only)

You Save: $300-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
