🔧 Altima - Alternator Replacement

The alternator charges your battery and powers the car’s electronics while the engine runs. Replacing it on your Altima mainly involves removing the drive belt, unplugging the alternator wiring, and swapping the unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short at the alternator power terminal.
• ⚠️ Support the car with jack stands; never work under a car held only by a jack.
• ⚠️ Keep fingers/tools clear of the belt path; the tensioner is spring-loaded.
• ⚠️ If the engine was running, let it cool to avoid burns.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" torque wrench (10-80 ft-lbs range)
• 6" socket extension (3/8" drive)
• 12" socket extension (3/8" drive)
• Serpentine belt tool or 14mm long-handled wrench
• Flat-blade screwdriver
• Trim clip removal tool
• Flashlight
• Digital multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1 (recommended if belt is worn/cracked)
• Replacement splash shield clips - Qty: 4-10 (as needed)
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the shifter in neutral, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and disconnect the battery: use a 10mm socket to remove the negative (-) terminal first, then position it so it can’t spring back.
• Take a quick photo of the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front and remove the lower splash shield

• Use a floor jack to lift the front of the car at the proper front jacking point.
• Set the car on jack stands and confirm it’s stable.
• Remove the lower engine splash shield (if equipped): use a trim clip removal tool for clips and a 10mm socket for any bolts.

Step 2: Release belt tension and move the belt off the alternator

• Locate the belt tensioner (spring-loaded arm with a pulley). A “spring-loaded tensioner” is a part that automatically keeps the belt tight.
• Put a 14mm socket on a serpentine belt tool or 14mm long-handled wrench and rotate the tensioner to relieve tension.
• While holding the tensioner, slide the belt off the alternator pulley, then slowly release the tensioner.
• Inspect the belt for cracks/glazing. Replace it now if it’s worn.

Step 3: Disconnect alternator electrical connections

• Unplug the alternator electrical connector: press the lock tab and pull it off by hand. Use a flat-blade screwdriver gently if the tab is stuck.
• Remove the rubber boot from the main power terminal (B+).
• Use a 10mm socket to remove the B+ terminal nut, then lift the cable off and tuck it aside so it can’t touch metal.

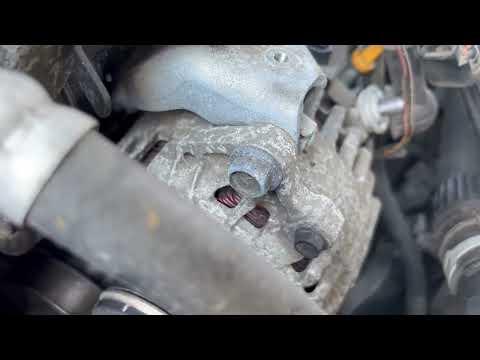

Step 4: Remove the alternator mounting bolts and alternator

• Support the alternator with one hand.
• Use a 14mm socket with a ratchet and extensions to remove the alternator mounting bolts (typically upper and lower).
• Work the alternator out of the bracket and down through the lower area (this can take some wiggling).

Step 5: Install the new alternator

• Position the new alternator in place and start the mounting bolts by hand to avoid cross-threading.
• Tighten mounting bolts with a 14mm socket, then final-tighten with a torque wrench: Torque to 49 Nm (36 ft-lbs).

Step 6: Reconnect alternator wiring

• Install the B+ cable onto the stud and tighten the nut using a 10mm socket: Torque to 9 Nm (80 in-lbs).
• Reinstall the rubber protective boot over the B+ terminal.
• Apply a small amount of dielectric grease to the connector seal (not the metal pins), then plug in the alternator connector until it clicks.

Step 7: Reinstall the drive belt

• Route the belt according to the under-hood diagram (or your photo). Make sure it sits in every pulley groove.
• Use the serpentine belt tool or 14mm long-handled wrench to rotate the tensioner and slip the belt onto the alternator pulley.
• Slowly release the tensioner and re-check belt alignment.

Step 8: Reinstall splash shield and lower the car

• Reinstall the splash shield using a 10mm socket and trim clip removal tool (for clips).
• Raise slightly with the floor jack, remove jack stands, and lower the car.

Step 9: Reconnect the battery

• Reconnect the battery negative terminal using a 10mm socket: Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• Start the engine and confirm the battery/charging light on the dash turns off.
• Use a digital multimeter at the battery terminals:
  • Engine off: ~12.4–12.7V (healthy battery).
  • Engine running: typically ~13.8–14.7V (charging).
• Listen for belt squeal and re-check the belt is centered on every pulley.
• Do a short test drive, then do a quick under-hood re-check for loose wiring.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $150-$450 (parts only)

You Save: $300-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
