🔧 Grand Cherokee - Alternator Replacement

The alternator charges the battery and powers the electrical system while the engine runs. On your Grand Cherokee, replacement is mostly about safely disconnecting the battery, releasing the serpentine belt tension, and swapping the alternator with the correct unit.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short at the alternator power stud.
• ⚠️ Let the engine cool; the radiator, belt area, and exhaust parts can be hot.
• ⚠️ Keep fingers/tools clear of the belt and pulleys while releasing tension.
• ⚠️ If you raise the front end, support it with jack stands on solid ground (never rely on the jack).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Ratchet (3/8" drive)
• Socket set (3/8" drive)
• 8mm socket
• 10mm socket
• 13mm socket
• 15mm socket
• 6" extension (3/8" drive)
• 12" extension (3/8" drive)
• Torque wrench (3/8" drive, 10-100 ft-lbs range)
• Flat-blade screwdriver
• Trim clip tool
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator (4.7L specific) - Qty: 1
• Serpentine belt - Qty: 1
• Battery terminal anti-corrosion washers (optional) - Qty: 1
• Dielectric grease (optional) - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove the key from the vehicle.
• If you’re new to belts: take a clear photo of the belt routing sticker (or draw a quick sketch) before removing the belt.
• If you’ll lift the front end for access, place wheel chocks behind the rear wheels first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use an 10mm socket to loosen the negative (-) battery terminal and remove it from the battery post.
• Tuck the cable to the side so it cannot spring back onto the post.
• This prevents accidental short circuits.

Step 2: Remove intake ducting (if it blocks access)

• Use an flat-blade screwdriver (or appropriate 8mm socket if your clamps use bolts) to loosen the hose clamps on the intake tube.
• Use a trim clip tool to pop any plastic push-clips holding the duct or resonator in place.
• Lift the ducting out and set it aside.

Step 3: Release the serpentine belt tension

• Locate the belt tensioner (spring-loaded pulley).
• Use a 15mm socket on the tensioner bolt head and rotate the tensioner to relieve belt tension.
• While holding the tensioner back, slide the belt off the alternator pulley, then slowly release the tensioner.
• Note: The tensioner is spring-loaded (it will snap back if you let go).

Step 4: Disconnect the alternator electrical connections

• Unplug the alternator field connector (the small plug). Use a flat-blade screwdriver gently if the lock tab is stubborn.
• Remove the protective rubber boot over the main power stud (B+).
• Use a 13mm socket to remove the nut from the B+ stud and lift the cable off.
• Don’t lose the nut—your new alternator may not include one.

Step 5: Remove the alternator mounting bolts

• Use a ratchet (3/8" drive) with an extension (6" or 12") and the correct socket set (3/8" drive) size for your alternator bracket bolts (commonly 13mm or 15mm).
• Remove the upper mounting bolt(s) first, then the lower mounting bolt(s).
• Support the alternator with your hand as the last bolt comes out.

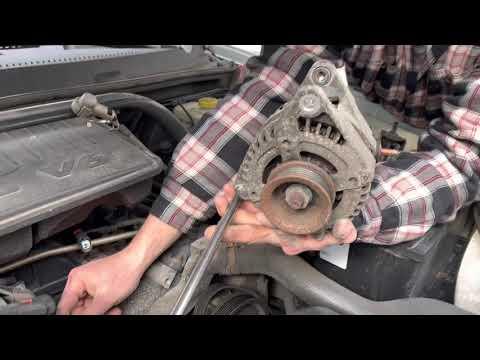

Step 6: Remove the alternator from the engine bay

• Work the alternator up and out of the engine bay.
• If it’s tight, rotate the alternator slightly to clear hoses/wiring—don’t force it.
• Use a flashlight to watch for any wiring that could snag.

Step 7: Install the new alternator

• Set the new alternator into position and start all mounting bolts by hand (this prevents cross-threading).
• Tighten the mounting bolts using a ratchet (3/8" drive), then final-tighten using a torque wrench.
• Torque to 54 Nm (40 ft-lbs) for alternator mounting bolts.

Step 8: Reconnect alternator wiring

• Install the main B+ cable onto the alternator stud and tighten the nut with a 13mm socket.
• Torque to 13 Nm (115 in-lbs) for the B+ terminal nut.
• Reinstall the rubber protective boot over the stud.
• Plug the field connector back in until it clicks. Add a tiny amount of dielectric grease if you’re using it.

Step 9: Reinstall the serpentine belt

• Route the belt according to your photo/routing diagram.
• Use a 15mm socket to rotate the tensioner again, slip the belt onto the alternator pulley, and slowly release the tensioner.
• Visually confirm the belt is centered on every pulley groove.

Step 10: Reinstall intake ducting

• Reinstall the intake tube/ducting.
• Tighten clamps using a flat-blade screwdriver (or 8mm socket, depending on clamp style).
• Reinstall any clips using a trim clip tool.

Step 11: Reconnect the battery

• Reconnect the negative (-) terminal and tighten using a 10mm socket.
• Torque to 11 Nm (97 in-lbs) for the battery terminal nut.

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light stays off.
• With a multimeter, check charging voltage at the battery: engine idling should typically be around 13.5V-14.7V.
• Listen for belt squeal; if you hear it, shut off and re-check belt routing and seating.
• Take a short test drive, then re-check that the belt is still centered and the B+ boot is covering the stud.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
