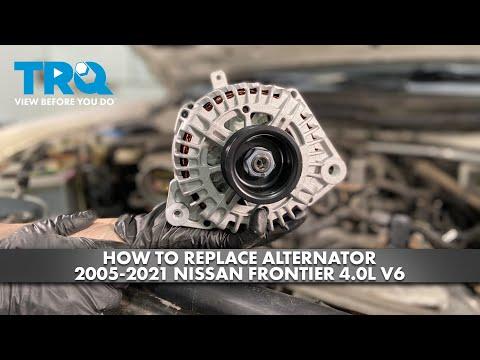

🔧 Frontier - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. On your Frontier, it’s belt-driven at the front of the engine, so the job is mainly removing the intake duct, releasing the belt tension, and swapping the alternator.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short at the alternator “B+” terminal.
• ⚠️ Keep fingers and tools clear of the belt path and radiator fans.
• ⚠️ Let the engine cool; you’ll work near hot components.
• ⚠️ Do not pry on the radiator or A/C lines for clearance.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Torque wrench (10-100 ft-lbs)
• Serpentine belt tool with 14mm socket
• Flathead screwdriver
• Trim clip removal tool
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Battery terminal anti-corrosion spray - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove jewelry (rings/watches) to avoid accidental shorts.
• Take a photo of the belt routing sticker (usually near the radiator support). If it’s missing, sketch the routing before removing the belt.
• Plan to disconnect the battery: negative cable off first, and keep it from touching the post.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal clamp and remove the negative cable.
• Tuck the cable to the side so it can’t spring back onto the post.
• Negative off first prevents accidental shorts.

Step 2: Remove the intake ducting for access

• Use a flathead screwdriver to loosen the hose clamps on the intake tube.
• If any plastic clips are present, remove them with a trim clip removal tool.
• Lift the intake ducting out and set it aside so you can clearly reach the alternator.

Step 3: Release tension and remove the serpentine belt

• Place a serpentine belt tool with 14mm socket on the belt tensioner bolt.
• Rotate the tensioner to relieve belt tension, then slide the belt off the alternator pulley.
• Slowly let the tensioner return to its resting position.
• Don’t let the tensioner snap back.

Step 4: Disconnect alternator wiring

• Unplug the alternator electrical connector by pressing the lock tab and pulling it straight off.
• Remove the rubber boot from the alternator “B+” terminal.
• Use a 10mm socket to remove the nut from the “B+” terminal and lift the cable off.

Step 5: Unbolt and remove the alternator

• Support the alternator with one hand.
• Use a 14mm socket and 3/8" drive ratchet with a 3/8" drive extension to remove the alternator mounting bolts.
• Lift the alternator out of the engine bay.

Step 6: Install the new alternator

• Set the new alternator into place and start the mounting bolts by hand to avoid cross-threading.
• Use a 14mm socket to snug the mounting bolts.
• Use a torque wrench (10-100 ft-lbs) to tighten alternator mounting bolts: Torque to 44 Nm (32 ft-lbs).
• Hand-start bolts first every time.

Step 7: Reconnect alternator wiring

• Reinstall the “B+” cable onto the alternator stud.
• Use a 10mm socket and torque wrench (10-100 ft-lbs) to tighten the “B+” terminal nut: Torque to 9 Nm (80 in-lbs).
• Reinstall the rubber boot over the “B+” terminal.
• Plug the alternator connector back in until it clicks.

Step 8: Reinstall the serpentine belt

• Route the belt according to the belt routing diagram you photographed.
• Use the serpentine belt tool with 14mm socket to rotate the tensioner and slip the belt back onto the alternator pulley.
• Visually confirm the belt ribs are seated in every pulley groove.

Step 9: Reinstall the intake ducting

• Reinstall the intake ducting and any clips you removed.
• Use a flathead screwdriver to tighten the hose clamps.

Step 10: Reconnect the battery

• Reinstall the negative battery cable and tighten with a 10mm socket.
• Apply battery terminal anti-corrosion spray if you have it.

---

✅ After Repair

• Start your Frontier and confirm the battery/charging warning light is off.
• Listen for belt squeal; if you hear it, shut off the engine and re-check belt routing and seating.
• If you have a multimeter, check charging voltage at the battery with engine idling: it should typically be around 13.5–14.8V.
• Recheck the alternator “B+” boot is fully covering the terminal.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$900 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3 hours.

---
