🔧 CR-V - Alternator Replacement

The alternator charges the battery and powers your CR-V’s electrical system while the engine runs. Replacing it involves removing the drive belt, unplugging the alternator wiring, unbolting the alternator, and installing the new one.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative cable first to prevent shorts.
• ⚠️ Keep tools away from the alternator B+ terminal (it’s direct battery power).
• ⚠️ Work on a cool engine; the exhaust and radiator area can burn you.
• ⚠️ Support the vehicle with jack stands if you lift it; never rely on a jack.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive torque wrench (10-80 ft-lbs range)
• 10mm socket
• 12mm socket
• 14mm socket
• 10mm wrench
• 12mm wrench
• Flat-blade screwdriver
• Needle-nose pliers
• Serpentine belt tool (specialty)
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and let the engine cool fully.
• Disconnect the battery: use a 10mm wrench to remove the negative cable first, then position it so it can’t spring back.
• If you don’t have a belt routing sticker under the hood, take a clear photo of the belt path before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Make room to access the alternator

• Use a flat-blade screwdriver and needle-nose pliers to loosen the air intake tube clamps and release any clips.
• Remove the intake tube/ducting from the air box area so you can reach the alternator and belt tensioner more easily.
• Take a quick photo before removing hoses.

Step 2: Remove the serpentine (drive) belt

• Place a serpentine belt tool (specialty) (a long handled wrench made for belt tensioners) or a 14mm socket on the belt tensioner arm bolt head.
• Rotate the tensioner to relieve belt tension, then slide the belt off the alternator pulley.
• Slowly release the tensioner back to its resting position.

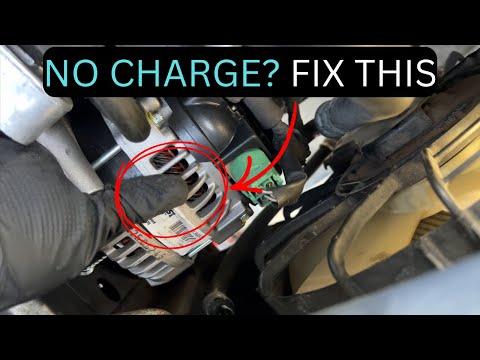

Step 3: Disconnect alternator electrical connections

• Unplug the alternator connector by pressing the lock tab and pulling straight back.
• Remove the rubber boot over the alternator power stud (B+).
• Use a 12mm wrench to remove the B+ terminal nut, then lift the ring terminal off the stud.
• Torque to 9.8 Nm (7.2 ft-lbs) on reassembly.

Step 4: Unbolt and remove the alternator

• Use a 12mm socket and 14mm socket with a 3/8" drive ratchet to remove the alternator mounting bolts.
• Support the alternator with one hand as you remove the last bolt so it doesn’t drop or hit the radiator.
• Lift the alternator out of the engine bay.
• Torque to 44 Nm (33 ft-lbs) for the alternator mounting bolts during installation.

Step 5: Install the new alternator

• Set the new alternator into place and start the mounting bolts by hand to avoid cross-threading.
• Tighten the bolts with a 12mm socket/14mm socket, then use a 3/8" drive torque wrench to finish.
• Torque to 44 Nm (33 ft-lbs).

Step 6: Reconnect wiring

• Install the B+ ring terminal onto the alternator stud and thread the nut on by hand.
• Use a 12mm wrench to tighten the nut.
• Torque to 9.8 Nm (7.2 ft-lbs).
• Reinstall the rubber boot and plug the electrical connector back in until it clicks.

Step 7: Reinstall the drive belt

• Route the belt according to your photo/sticker.
• Use the serpentine belt tool (specialty) or 14mm socket to rotate the tensioner, slip the belt onto the alternator pulley last, then release the tensioner slowly.
• Visually check the belt is centered on every pulley groove.

Step 8: Reinstall the intake ducting

• Reinstall the intake tube and any resonator/duct pieces removed earlier.
• Use a flat-blade screwdriver to tighten hose clamps securely.

Step 9: Reconnect the battery

• Reconnect the negative battery cable using a 10mm wrench.
• Make sure the terminal is snug and doesn’t rotate by hand.

---

✅ After Repair

• Start the engine and confirm the charge warning light turns off after starting.
• Listen for belt squeal or slapping noises; if present, shut off and re-check belt routing and seating.
• With the engine idling, check for stable electrical operation (headlights, blower motor).
• If you have a multimeter: battery voltage should typically be around 13.5–14.8V while running.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,050 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$600 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
