🔧 Civic - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. On your Civic, replacement is mostly about safe battery disconnect, removing the drive belt, unplugging the wiring, and swapping the alternator.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🛑 Disconnect the negative battery cable first to prevent a short at the alternator’s main power terminal.
• 🛑 Let the engine cool; you’ll work near hot exhaust parts.
• 🛑 Support the car with jack stands if you work from underneath; never rely on a jack alone.
• 🛑 Keep fingers clear of the belt path when releasing the tensioner (spring-loaded).

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 3/8" drive torque wrench (10–100 ft-lbs range)
• Socket set: 10mm, 12mm, 14mm
• Wrench set: 10mm, 12mm, 14mm
• 6" extension (3/8" drive)
• Trim clip remover
• Flathead screwdriver
• Flashlight
• Digital multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1 (recommended if belt is worn/cracked)
• Dielectric grease - Qty: 1 (small packet)

---

📋 Before You Begin

• 🅿️ Park on level ground, put the transmission in 1st gear, and set the parking brake.
• 🧱 Place wheel chocks behind the rear wheels.
• 🔋 Open the hood and disconnect the battery: use a 10mm wrench to remove the negative (–) terminal first, then position it so it can’t spring back.
• 📝 Take a quick photo of belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front (if needed for access)

• Use wheel chocks at the rear wheels.
• Lift the front with a floor jack at the front center jacking point.
• Set the car onto jack stands at the pinch welds.

Step 2: Remove the lower splash shield (if equipped)

• Use a trim clip remover and flathead screwdriver to remove the plastic clips.
• Use a 10mm socket and ratchet to remove any 10mm bolts holding the shield.

Step 3: Release belt tension and remove the serpentine belt

• Locate the belt tensioner (spring-loaded arm with a pulley).
• Use a 14mm socket with a breaker bar on the tensioner bolt head and rotate to relieve tension.
• While holding tension released, slide the belt off the alternator pulley, then slowly let the tensioner return.
• A breaker bar is just a long-handled ratchet for leverage.

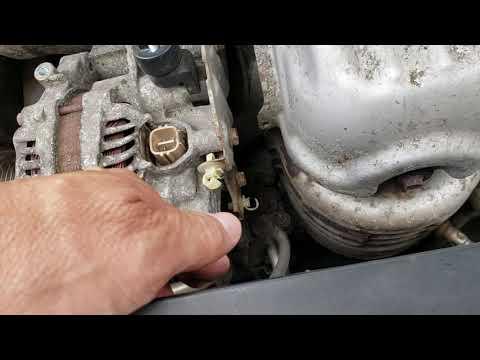

Step 4: Unplug the alternator electrical connector

• Use a flashlight to find the small alternator plug.
• Press the locking tab and pull the connector straight off by hand (do not yank the wires).

Step 5: Remove the alternator main power cable (B+)

• Pull back the rubber protective boot.
• Use a 10mm socket and ratchet (or 10mm wrench) to remove the nut from the B+ stud.
• Move the cable aside so it can’t touch metal.
• On reassembly: Torque to 9.8 Nm (87 in-lbs).

Step 6: Remove the alternator mounting bolts

• Support the alternator with one hand while removing bolts so it doesn’t drop suddenly.
• Use a 12mm socket and ratchet to remove the upper mounting bolt(s) (location varies slightly by bracket).
• Use a 14mm socket and ratchet (or breaker bar if tight) to remove the lower mounting/pivot bolt.
• Wiggle the alternator free from the bracket.

Step 7: Remove the alternator from the engine bay

• Rotate and guide the alternator out through the top or bottom opening (whichever has more room).
• If it feels stuck, re-check that the wiring and all mounting bolts are fully removed before forcing anything.

Step 8: Install the new alternator

• Position the new alternator into the bracket by hand.
• Start all mounting bolts by hand first (this prevents cross-threading).
• Use a 12mm socket and ratchet to snug the upper bolt(s).
• Use a 14mm socket and ratchet to snug the lower bolt.
• Final tighten with a torque wrench: Torque alternator mounting bolts to 44 Nm (33 ft-lbs).

Step 9: Reconnect the alternator wiring

• Apply a tiny amount of dielectric grease to the inside of the electrical connector seal (optional but helpful).
• Push the alternator plug on until it clicks.
• Install the main power cable onto the B+ stud and tighten with a 10mm socket.
• Use a torque wrench: Torque to 9.8 Nm (87 in-lbs), then reinstall the rubber boot.

Step 10: Reinstall the serpentine belt

• Route the belt according to your photo (or the under-hood belt routing label if present).
• Use a 14mm socket with a breaker bar to rotate the tensioner and slip the belt onto the alternator pulley.
• Slowly release the tensioner and visually confirm the belt sits fully in every pulley groove.
• Misalignment will shred the belt fast.

Step 11: Reinstall splash shield and lower the car

• Use a 10mm socket and ratchet for shield bolts and push clips in by hand (use trim clip remover as needed).
• Raise slightly with the floor jack, remove jack stands, and lower the car.

Step 12: Reconnect the battery

• Use a 10mm wrench to reconnect the negative (–) battery terminal.
• Make sure the terminal is snug and cannot rotate by hand.

---

✅ After Repair

• 🔎 Start the engine and listen for belt squeal or slapping sounds; shut off immediately if heard and re-check belt routing.
• ⚡ Use a digital multimeter at the battery terminals: engine running should typically read about 13.8–14.8 volts.
• 🧰 Recheck the alternator plug and B+ boot are fully seated and not rubbing the belt.
• 🕵️ Look for a battery/charging warning light on the dash; if it stays on, stop and re-check connections.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
