🔧 Impala - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. Replacing it involves disconnecting the battery, removing the serpentine belt from the alternator pulley, swapping the alternator, then reinstalling and verifying charging voltage.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short.
• ⚠️ Keep hands/clothes away from the serpentine belt path.
• ⚠️ Support the car with jack stands if you lift it; never rely on a jack.
• ⚠️ Let the engine cool before working near the radiator and exhaust.
• ⚠️ No battery disconnect is required beyond removing the negative cable, but do not reconnect until the alternator wiring is fully secured.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 3/8" drive extension set (3" and 6")
• 10mm socket
• 13mm socket
• 15mm socket
• Torque wrench (10–100 ft-lbs range)
• Flat-blade screwdriver
• Trim clip remover
• Digital multimeter
• Serpentine belt tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator (3.5L) - Qty: 1
• Serpentine belt - Qty: 1 Recommended if belt is cracked.
• Battery terminal anti-corrosion washers - Qty: 1 set

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and take a quick photo of the belt routing (or locate the belt routing sticker).
• If you plan to lift the car for easier access, place it on jack stands at the proper lift points.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative battery terminal clamp.
• Lift the negative cable off and tuck it aside so it can’t spring back to the post.

Step 2: Remove the air intake duct (if it blocks access)

• Use a flat-blade screwdriver to loosen the hose clamps on the intake duct.
• Remove any push clips using a trim clip remover.
• Lift the duct out of the way for clear access to the alternator area.

Step 3: Release serpentine belt tension

• Locate the belt tensioner (spring-loaded pulley).
• Insert a 3/8" drive breaker bar (or serpentine belt tool (specialty)) into the square drive on the tensioner.
• Rotate the tensioner to relieve tension, then slide the belt off the alternator pulley.
• Tip: Only remove the belt from the alternator pulley.

Step 4: Disconnect alternator electrical connections

• Unplug the alternator connector by pressing the tab and pulling straight out (use a flat-blade screwdriver gently if it’s stuck).
• Remove the protective rubber boot from the main power (B+) terminal.
• Use a 13mm socket to remove the B+ terminal nut, then lift the cable off the stud.
• Reinstall the nut a couple turns on the stud so it doesn’t get lost.

Step 5: Remove the alternator mounting bolts

• Use a 15mm socket with a 3/8" drive ratchet and extensions to remove the alternator mounting bolts.
• Support the alternator with one hand as the last bolt comes out.

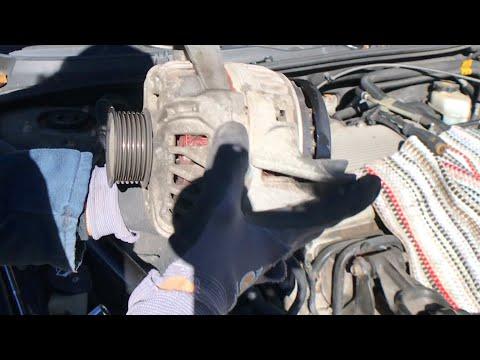

Step 6: Remove the alternator

• Lift the alternator out of the engine bay, rotating it as needed to clear hoses and wiring.
• If it feels stuck in the bracket, wiggle it free—avoid prying on plastic parts.

Step 7: Install the new alternator

• Set the new alternator into position and start all mounting bolts by hand to prevent cross-threading.
• Tighten the mounting bolts with a 15mm socket, then final-tighten with a torque wrench: Torque to 50 Nm (37 ft-lbs).

Step 8: Reconnect alternator wiring

• Install the B+ cable on the alternator stud and tighten with a 13mm socket, then use a torque wrench: Torque to 15 Nm (11 ft-lbs).
• Reinstall the rubber boot over the B+ terminal.
• Plug in the alternator electrical connector until it clicks.

Step 9: Reinstall the serpentine belt

• Route the belt according to the belt diagram (or your photo).
• Use the 3/8" drive breaker bar (or serpentine belt tool (specialty)) on the tensioner again.
• Slip the belt fully onto the alternator pulley, then slowly release the tensioner.
• Visually confirm the belt is seated in every pulley groove.

Step 10: Reinstall intake duct and reconnect the battery

• Reinstall the intake duct and tighten clamps using a flat-blade screwdriver.
• Reconnect the negative battery terminal using a 10mm socket: Torque to 17 Nm (13 ft-lbs).

---

✅ After Repair

• Start the engine and confirm the battery/charging light on the dash turns off.
• Use a digital multimeter across the battery terminals:
  • Engine off: typically ~12.4–12.7V
  • Engine running: typically ~13.8–14.7V
• Listen for belt squeal and recheck belt alignment with the engine off.
• If the battery was weak, charge it fully—new alternators don’t like “recharging” dead batteries.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $160-$380 (parts only)

You Save: $290-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
