🔧 Tundra - Alternator Replacement

The alternator keeps your battery charged and powers the electrical system while the engine runs. Replacing it involves removing the serpentine belt, unplugging the alternator wiring, unbolting the alternator, and installing the new unit.

Assumption: Stock 5.7L accessory drive layout (no aftermarket brackets/winch wiring).

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short at the alternator B+ terminal.
• ⚠️ Work on a cool engine; the radiator, fan area, and exhaust components can burn you.
• ⚠️ Keep fingers/tools clear of the belt path and fan area.
• ⚠️ Support the truck safely if you go underneath; never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 1/2" drive breaker bar
• 3/8" drive extension set (3", 6")
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 10mm combination wrench
• 12mm combination wrench
• 14mm combination wrench
• Serpentine belt tool (specialty)
• Trim clip removal tool
• Flat-blade screwdriver
• Torque wrench (10–100 ft-lb range)
• Digital multimeter
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (recommended if belt is cracked/glazed)
• Battery terminal anti-corrosion spray - Qty: 1

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 🧱 Chock the rear wheels with wheel chocks.
• 🔋 Open the hood and plan to disconnect the battery: negative cable first.
• 📝 Take a quick photo or draw the belt routing before removing the belt (helps a lot on reassembly).
• 🧰 If you’ll use a serpentine belt tool: it’s a long, thin ratchet made to reach the belt tensioner in tight spaces.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket to loosen the negative (-) battery terminal clamp.
• Lift the cable off the battery post and tuck it aside so it can’t spring back.
• Torque to 5 Nm (44 in-lb) when reinstalling the terminal clamp later.

Step 2: Remove any upper intake ducting (if it blocks access)

• Use a flat-blade screwdriver or 10mm socket to loosen hose clamps on the intake tube.
• Release any push clips with a trim clip removal tool.
• Lift the duct out and set it aside.

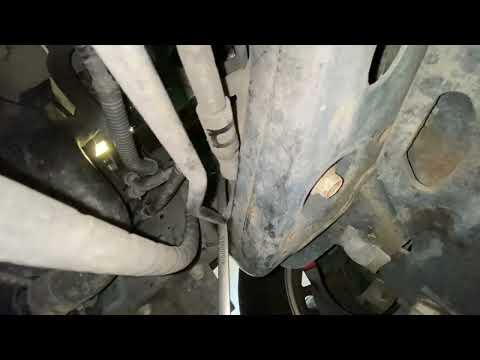

Step 3: Create room from below (if needed)

• Raise the front safely using a floor jack (rated 3-ton minimum) and support with jack stands (rated 3-ton minimum).
• If equipped with a front skid plate, remove it using a 12mm socket and 14mm socket.
• More room makes the job much easier.

Step 4: Release belt tension and remove the serpentine belt

• Locate the belt tensioner (spring-loaded arm with a pulley).
• Use a 14mm socket on a 1/2" drive breaker bar (or a serpentine belt tool (specialty)) to rotate the tensioner and relieve belt tension.
• Slide the belt off the alternator pulley first, then carefully release the tensioner back to its rest position.
• Remove the belt if you’re replacing it; otherwise lay it aside out of the work area.

Step 5: Disconnect alternator electrical connections

• Unplug the alternator connector by pressing the lock tab (use a flat-blade screwdriver gently if it’s stubborn).
• Remove the rubber boot over the B+ terminal.
• Use a 10mm socket (or 10mm wrench) to remove the B+ terminal nut and take the cable off.
• Torque to 9 Nm (80 in-lb) for the B+ terminal nut during reassembly.

Step 6: Remove the alternator mounting bolts

• Support the alternator with one hand as you remove bolts so it doesn’t drop.
• Use a 14mm socket with a 3/8" drive ratchet and extension to remove the alternator mounting bolts.
• Remove the alternator from the bracket (you may need to angle it out).
• Torque to 47 Nm (35 ft-lb) for alternator mounting bolts during installation.

Step 7: Install the new alternator

• Position the new alternator in the bracket by hand.
• Start all mounting bolts by hand first to avoid cross-threading.
• Tighten with a 14mm socket, then final-tighten with a torque wrench: Torque to 47 Nm (35 ft-lb).

Step 8: Reconnect alternator wiring

• Install the B+ cable onto the stud and tighten using a 10mm socket: Torque to 9 Nm (80 in-lb).
• Reinstall the rubber protective boot over the B+ terminal.
• Plug in the alternator electrical connector until it clicks.

Step 9: Reinstall the serpentine belt

• Route the belt using your photo/diagram.
• Use a 14mm socket on a breaker bar (or serpentine belt tool (specialty)) to rotate the tensioner and slip the belt onto the alternator pulley.
• Slowly release the tensioner.
• Visually confirm the belt is fully seated in every pulley groove.

Step 10: Reinstall intake ducting and any skid plates

• Reinstall the intake duct and clamps using a flat-blade screwdriver or 10mm socket.
• If removed, reinstall the skid plate using a 12mm socket and 14mm socket.

Step 11: Reconnect the battery

• Reconnect the negative (-) terminal using a 10mm socket.
• Torque to 5 Nm (44 in-lb).
• Apply battery terminal anti-corrosion spray if you have it.

---

✅ After Repair

• 🔎 Start the engine and confirm the battery/charging light is OFF.
• 📏 Use a digital multimeter at the battery terminals: you should typically see about 13.8–14.5V with the engine idling and accessories off.
• 👂 Listen for belt squeal or slapping; re-check belt seating if you hear noise.
• 🧪 Check for any burning smell or smoke (sign of a misrouted belt or poor connection).

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $220-$550 (parts only)

You Save: $430-$650 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
