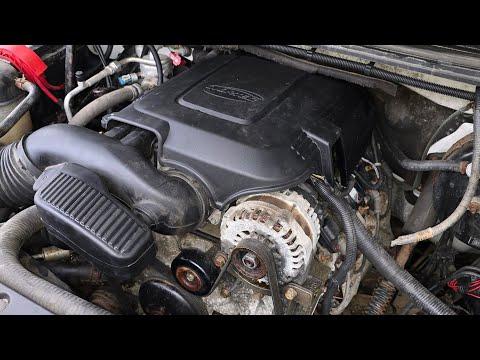

🔧 Sierra 1500 - Alternator Replacement

You’ll remove the serpentine belt from the alternator, disconnect the alternator wiring, unbolt the alternator, and install the new one. This is a straightforward job on your Sierra 1500, but the wiring must be handled carefully to avoid shorts.

Difficulty Level: Intermediate | Estimated Time: 1.0-2.0 hours

---

⚠️ Safety & Precautions

• 🛑 Disconnect the negative battery cable before touching the alternator wiring (the alternator power wire is always “hot” if the battery is connected).
• 🧤 Let the engine cool; the belt area and engine components can be hot.
• 🧱 If you raise the truck for access, support it with jack stands on the frame—never rely on a jack.
• ⚡ Avoid metal tools touching the alternator power stud and metal engine parts at the same time.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 3/8" drive ratchet
• 3/8" drive breaker bar
• 3/8" drive extension set (3" and 6")
• 15mm socket
• 13mm socket
• 10mm socket
• Flathead screwdriver
• Torque wrench (10-100 ft-lbs range)
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (recommended if belt is cracked/noisy)

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove any loose jewelry (rings/watches can short electrical power).
• Disconnect the battery: use a 10mm socket to remove the negative (-) cable and move it aside so it can’t spring back.
• Tip: Take a quick photo of the belt routing under the hood.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Locate the belt routing diagram

• Look for the belt routing sticker on the radiator support/fan shroud.
• If the sticker is missing, use a flashlight and take a clear photo of the current routing.

Step 2: Release tension from the serpentine belt

• Install a 15mm socket on the belt tensioner bolt (the spring-loaded pulley arm).
• Use a 3/8" drive breaker bar to rotate the tensioner and relieve belt tension.
• Slip the belt off the alternator pulley, then slowly release the tensioner.
• Tip: Control the tensioner—don’t let it snap back.

Step 3: Disconnect the alternator electrical connections

• On the back of the alternator, remove the plastic cap from the main power stud using a flathead screwdriver.
• Use a 13mm socket to remove the nut from the main power (B+) cable and lift the cable off the stud.
• Unplug the alternator electrical connector by pressing the lock tab (use a flathead screwdriver gently if it’s stubborn).
• Torque to 15 N·m (11 ft-lbs) for the B+ terminal nut during reassembly.

Step 4: Remove the alternator mounting bolts

• Use a 15mm socket with a 3/8" drive ratchet and extension set (3" and 6") as needed to remove the alternator mounting bolts.
• If equipped with a rear alternator support brace, remove its bolt(s) using a 13mm socket.
• Lift the alternator out of the bracket.
• Torque to 50 N·m (37 ft-lbs) for alternator mounting bolts during reassembly.
• Torque to 25 N·m (18 ft-lbs) for rear support brace bolt(s) during reassembly (if equipped).

Step 5: Install the new alternator

• Set the new alternator into place and start all mounting bolts by hand to prevent cross-threading.
• Use a 15mm socket and 3/8" drive ratchet to snug the mounting bolts evenly.
• If equipped, reinstall the rear support brace using a 13mm socket.
• Final tighten: Torque to 50 N·m (37 ft-lbs) for alternator mounting bolts.
• If equipped: Torque to 25 N·m (18 ft-lbs) for rear support brace bolt(s).

Step 6: Reconnect the alternator wiring

• Push the alternator electrical connector in until it clicks.
• Install the B+ cable onto the power stud, then install the nut using a 13mm socket.
• Torque to 15 N·m (11 ft-lbs) for the B+ terminal nut.
• Reinstall the protective cap over the power stud.

Step 7: Reinstall the serpentine belt

• Route the belt according to the diagram/photo, leaving the alternator pulley for last if it’s easiest.
• Use a 15mm socket and 3/8" drive breaker bar to rotate the tensioner again.
• Slip the belt onto the alternator pulley and slowly release the tensioner.
• Visually confirm the belt is seated in every pulley groove.

Step 8: Reconnect the battery

• Reconnect the negative battery cable using a 10mm socket.
• Tighten securely: Torque to 15 N·m (11 ft-lbs).

---

✅ After Repair

• Start the engine and watch the belt for 10–15 seconds to confirm it runs smooth (no wobble, no chirping).
• Verify the battery/charging light on the dash goes out.
• If you have a multimeter: with engine running, check battery voltage—typically ~13.5–14.8V.
• Recheck the B+ nut and mounting bolts after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.0-2.0 hours.

---
