🔧 Alternator - Replacement

On your Sierra, the alternator sits on the front of the engine and is driven by the serpentine belt. You’ll remove the belt, disconnect the wiring, swap the alternator, then reinstall everything and verify charging voltage.

Difficulty Level: Intermediate | Estimated Time: 1.5-2.5 hours

---

⚠️ Safety & Precautions

• Disconnect the negative battery cable before touching the alternator wiring.
• The serpentine belt is under tension; keep fingers clear of the belt path.
• Let the engine cool before starting if it was recently running.
• Use jack stands if you need access from below; never rely on a jack alone.

---

🔧 Required Tools

You'll need the following tools for this repair:

• 8mm socket
• 10mm socket
• 13mm socket
• 15mm wrench or socket
• Serpentine belt tool or 15mm breaker bar (specialty)
• Ratchet
• Extension set
• Torque wrench
• Flat-blade trim tool or small pry tool
• Gloves
• Safety glasses
• Battery terminal wrench

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Alternator mounting bolts - Qty: 2
• Alternator electrical connector pigtail - Qty: 1
• Battery terminal corrosion protectant - Qty: 1

---

📋 Before You Begin

• Park on level ground and set the parking brake.
• Make sure the ignition is OFF and the key is out.
• Disconnect the negative battery cable first using a 10mm wrench.
• If the belt is cracked, glazed, or noisy, replace it now.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm wrench to loosen the negative battery terminal.
• Remove the cable and keep it away from the battery post.
• Prevents short circuits.

Step 2: Remove the engine cover and intake ducting if equipped

• Use an 8mm socket to remove any intake tube clamps or cover fasteners that block access.
• Lift off the cover or ducting and set it aside.

Step 3: Release the serpentine belt

• Use a serpentine belt tool or 15mm breaker bar (specialty) on the belt tensioner.
• Rotate the tensioner to unload the belt, then slip the belt off the alternator pulley.
• Slowly release the tensioner.
• Take a photo of the belt routing first.

Step 4: Disconnect the alternator wiring

• Use a 10mm socket to remove the main battery cable nut from the alternator.
• Unplug the electrical connector by pressing the lock tab and pulling it straight out.
• Torque to 15 Nm (11 ft-lbs) on reassembly for the battery cable nut.

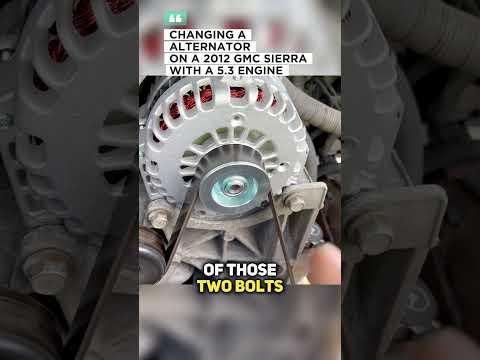

Step 5: Remove the alternator

• Use a 13mm socket to remove the alternator mounting bolts.
• Support the alternator with one hand as you remove the last bolt.
• Lift the alternator out of the engine bay.
• Torque to 50 Nm (37 ft-lbs) on reassembly for the mounting bolts.

Step 6: Install the new alternator

• Position the new alternator in place.
• Start both mounting bolts by hand using a 13mm socket.
• Tighten them evenly with a torque wrench.
• Reinstall the electrical connector and main cable.

Step 7: Reinstall the serpentine belt

• Use the serpentine belt tool or 15mm breaker bar (specialty) to rotate the tensioner again.
• Route the belt back over the alternator pulley.
• Check that the belt is seated in every pulley groove.
• One misrouted pulley causes squeal.

Step 8: Reinstall intake parts and reconnect the battery

• Reinstall any intake ducting or cover pieces with the 8mm socket.
• Reconnect the negative battery terminal with the 10mm wrench.
• Make sure the terminal is snug and clean.

---

✅ After Repair

• Start the engine and listen for belt noise.
• Check that the battery warning light goes out.
• Measure charging voltage at the battery; you should typically see about 13.5-14.8 volts with the engine running.
• Check the alternator connector and cable for heat or looseness after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$380 (parts only)

You Save: $270-$470 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
