🔧 Grand Cherokee - Alternator Replacement

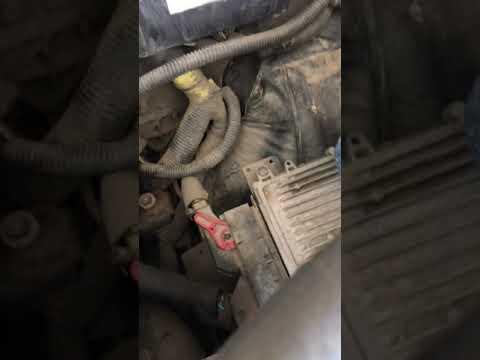

On your Grand Cherokee’s 3.0L diesel, the alternator is driven by the serpentine belt and sits tight in the front of the engine bay. Replacement is straightforward, but clearance can vary depending on whether the mechanical cooling fan is in the way.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before touching the alternator wiring (the B+ cable is always “live” otherwise).
• ⚠️ Let the engine cool fully; you’ll be working near the belt drive and fan area.
• ⚠️ Keep fingers/tools clear of the belt path while releasing belt tension.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 13mm socket
• 15mm socket
• 16mm socket
• Ratchet (3/8")
• Ratchet (1/2")
• 3/8" torque wrench
• 1/2" torque wrench
• 3/8" breaker bar
• Serpentine belt tool (specialty)
• Trim clip remover
• Flat blade screwdriver
• Needle-nose pliers
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Open the hood and remove jewelry (rings/watches can short electrical power).
• Disconnect the battery negative cable using a 10mm socket.
• Quick check: take a photo of the serpentine belt routing sticker (or draw a simple sketch).
• Two quick questions so I give you the exact removal path and torque specs:
• ❓ Does your Grand Cherokee have a mechanical engine fan (fan with blades on the front) or only electric fans?
• ❓ Is the alternator accessible from the top after removing the intake duct, or is it blocked by the fan/shroud (tight clearance)?

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the engine cover and intake ducting

• Remove the top engine cover by lifting it straight up (it’s held by rubber grommets).
• Loosen intake hose clamps using a flat blade screwdriver and remove the intake tube as needed for working room.
• Bag bolts/clips so nothing gets lost.

Step 2: Release serpentine belt tension and remove the belt

• Install the serpentine belt tool (specialty) on the belt tensioner and rotate the tensioner to relieve belt tension.
• Slip the belt off the alternator pulley first, then remove the belt from the other pulleys.
• Set the belt aside and inspect it for cracks/glazing; replace if worn.

Step 3: Disconnect alternator electrical connections

• Unplug the alternator electrical connector by pressing the lock tab and pulling it straight off (use needle-nose pliers only if needed, gently).
• Remove the protective cap from the alternator B+ terminal (main power stud).
• Remove the B+ cable nut using a 13mm socket, then move the cable aside so it can’t spring back.

Step 4: Remove alternator mounting bolts

• Support the alternator by hand.
• Remove the alternator mounting bolts using a 15mm socket and/or 16mm socket (bolt heads can vary by replacement bracket/alternator style).
• Lift the alternator out. If it’s tight, rotate it slightly to clear hoses and wiring.

Step 5: Install the new alternator

• Set the new alternator into place and start all mounting bolts by hand to prevent cross-threading.
• Tighten mounting bolts evenly using a ratchet (1/2"), then final-tighten with a 1/2" torque wrench.
• Torque to: I’ll give you the exact factory torque values once you answer the 2 questions above (fan/shroud clearance changes which bolts are used/accessed).

Step 6: Reconnect alternator wiring

• Install the B+ cable and tighten the nut using a 13mm socket, then reinstall the protective cap.
• Reconnect the alternator plug until it clicks.
• Torque to: I’ll include the exact terminal torque with the final torque list after your answers.

Step 7: Reinstall the serpentine belt

• Route the belt according to the under-hood routing diagram (or your photo).
• Use the serpentine belt tool (specialty) to rotate the tensioner and slip the belt onto the last pulley.
• Visually confirm the belt is centered on every pulley groove.

Step 8: Reinstall intake ducting and engine cover

• Reinstall intake tubes and tighten clamps with a flat blade screwdriver.
• Press the engine cover back onto its grommets.

Step 9: Reconnect the battery

• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light stays off.
• With the engine idling, listen for belt squeal or chirping (misrouting or belt not seated).
• If you have a multimeter: check charging voltage at the battery with engine running (typically mid-13V to mid-14V range).
• Recheck the belt tracking after a short 5-minute drive.

---

💰 DIY vs Shop Cost

Shop Cost: $650-$1,200 (parts + labor)

DIY Cost: $220-$650 (parts only)

You Save: $430-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-4 hours.

---
