🔧 Wrangler - Alternator Replacement

The alternator charges the battery and powers the electrical system while your Wrangler is running. Replacement involves removing the serpentine belt (the single long belt that drives multiple accessories), unplugging the alternator wiring, and swapping the unit.

Difficulty Level: Intermediate | Estimated Time: 1-2 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short at the alternator power terminal.
• ⚠️ Keep hands and tools clear of the belt path; the tensioner is spring-loaded.
• ⚠️ Work on a cool engine to avoid burns from hot metal parts.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 3/8" drive torque wrench
• 3/8" drive extension set
• Serpentine belt tool (specialty)
• Trim clip remover
• Flat-blade screwdriver
• Flashlight

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to 1st gear, and set the parking brake.
• Pop the hood and let the engine cool fully.
• Have a phone ready to take a quick picture of the belt routing before removal.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Disconnect the battery

• Use a 10mm socket and 3/8" drive ratchet to loosen the negative battery terminal clamp.
• Lift the negative cable off the battery post and tuck it aside so it can’t spring back.

Step 2: Remove the air intake duct (for access)

• Use a flat-blade screwdriver to loosen the hose clamp(s) on the intake duct.
• If any plastic clips are used, remove them with a trim clip remover.
• Lift the duct out and set it aside.

Step 3: Release the serpentine belt tension

• Use a 15mm socket on the belt tensioner bolt, with a serpentine belt tool (specialty) or a 3/8" drive ratchet.
• Rotate the tensioner to relieve belt tension, then slide the belt off the alternator pulley.
• Tip: Keep fingers out of pulley gaps.

Step 4: Disconnect alternator electrical connectors

• Unplug the alternator field connector by pressing the tab and pulling straight off.
• Remove the protective cap from the main power stud (B+).
• Use a 13mm socket to remove the nut on the B+ cable and set the cable aside.
• During reassembly, Torque the B+ terminal nut to 11 N·m (97 in-lbs).

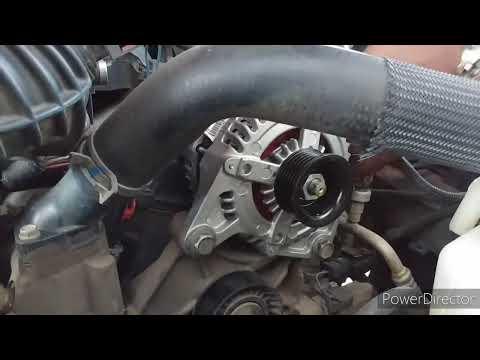

Step 5: Remove the alternator mounting bolts

• Support the alternator with one hand.
• Use a 13mm socket, 3/8" drive ratchet, and 3/8" drive extension set to remove the alternator mounting bolts.
• Lift the alternator out of the engine bay.

Step 6: Install the new alternator

• Set the new alternator into position and start the mounting bolts by hand to avoid cross-threading.
• Use a 13mm socket and 3/8" drive ratchet to snug the bolts evenly.
• Use a 3/8" drive torque wrench and 13mm socket to finish tightening: Torque the alternator mounting bolts to 41 N·m (30 ft-lbs).

Step 7: Reconnect alternator wiring

• Reinstall the B+ cable on the alternator power stud and tighten with a 13mm socket.
• Torque the B+ terminal nut to 11 N·m (97 in-lbs), then reinstall the protective cap.
• Plug the field connector back in until it clicks.

Step 8: Reinstall the serpentine belt

• Route the belt according to the under-hood belt routing diagram (or your photo).
• Use a 15mm socket with the serpentine belt tool (specialty) to rotate the tensioner, then slip the belt onto the alternator pulley.
• Release the tensioner slowly and check the belt is fully seated in every pulley groove using a flashlight.

Step 9: Reinstall the intake duct

• Reinstall the duct and any clips using the trim clip remover as needed.
• Tighten hose clamps with a flat-blade screwdriver.

Step 10: Reconnect the battery

• Install the negative battery cable and tighten with a 10mm socket.

---

✅ After Repair

• Start the engine and confirm the battery/charging warning light is off.
• Listen for belt squeal or chirping; if present, shut off and re-check belt alignment on all pulleys.
• If you have a voltmeter, check charging voltage at the battery with the engine running (typically around 13.5–14.7V on a healthy system).

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1-2 hours.

---
