🔧 Camry - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. On your Camry, replacing it involves disconnecting the battery, removing the serpentine belt, unplugging the wiring, and swapping the alternator out of its bracket.

Difficulty Level: Intermediate | Estimated Time: 2-4 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short at the alternator power stud.
• ⚠️ Let the engine cool; you’ll work near hot engine parts.
• ⚠️ Support the car with jack stands if you go through the wheel well; never rely on a jack alone.
• ⚠️ Keep fingers clear of the belt path when releasing the tensioner.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 2-ton minimum)
• Jack stands (rated 2-ton minimum)
• Wheel chocks
• 10mm socket
• 12mm socket
• 14mm socket
• 17mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Serpentine belt tool 14mm (specialty)
• Torque wrench (10–150 ft-lb range)
• Flathead screwdriver
• Trim clip removal tool
• Needle-nose pliers
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Electrical terminal protective boot (if damaged) - Qty: 1
• Engine splash shield clips (as needed) - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and keep your keys out of the ignition.
• Disconnect the battery: use a 10mm socket to remove the negative (-) terminal and move it aside so it can’t spring back.
• Tip: Take a quick photo of belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the intake duct for room

• Use a flathead screwdriver to loosen the hose clamps on the intake duct.
• Use a 10mm socket to remove any small brackets/bolts holding the duct or resonator.
• Lift the intake duct out and set it aside.

Step 2: Raise the right-front corner (recommended access)

• Use a 17mm socket to slightly loosen the right-front wheel lug nuts.
• Use a floor jack (rated 2-ton minimum) to lift the right-front jacking point.
• Set the car onto jack stands (rated 2-ton minimum).
• Remove the wheel using a 17mm socket.
• Reinstall later: Torque to 103 Nm (76 ft-lb).

Step 3: Remove the right-front splash shield

• Use a trim clip removal tool and 10mm socket to remove the plastic clips/bolts in the inner fender/splash area.
• Pull the splash shield back to expose the belt and alternator area.

Step 4: Release belt tension and remove the serpentine belt

• Find the automatic belt tensioner.
• Use a serpentine belt tool 14mm (specialty) or 14mm socket on the tensioner bolt head and rotate it to relieve tension.
• Slip the belt off the alternator pulley first, then slowly release the tensioner.
• Remove the belt from the other pulleys if you’re replacing it.
• Tip: Slow-release prevents hand injuries.

Step 5: Disconnect alternator electrical connections

• On the back of the alternator, remove the protective rubber boot from the main power terminal (B+).
• Use a 10mm socket to remove the B+ terminal nut, then lift the cable off.
• Torque on install: 9 Nm (80 in-lb).
• Press the tab and unplug the alternator electrical connector (use needle-nose pliers only if needed—don’t crush it).

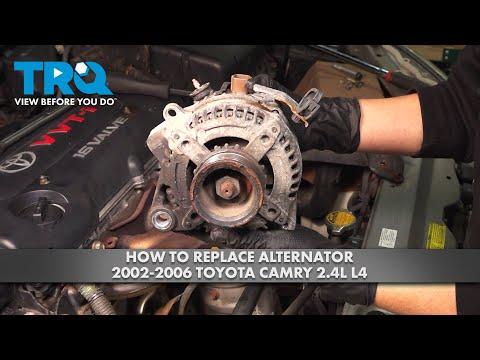

Step 6: Unbolt and remove the alternator

• Use a 14mm socket and 3/8" drive ratchet with extensions to remove the alternator mounting bolts.
• Support the alternator with one hand as the last bolt comes out.
• Work the alternator out through the wheel well opening (usually the easiest path).
• Tip: Wiggle, don’t pry on aluminum.

Step 7: Install the new alternator

• Position the alternator into place and start the mounting bolts by hand to avoid cross-threading.
• Tighten mounting bolts using a 14mm socket.
• Torque alternator mounting bolts: 37 Nm (27 ft-lb).

Step 8: Reconnect wiring

• Plug in the alternator connector until it clicks.
• Install the B+ cable and nut using a 10mm socket.
• Torque to 9 Nm (80 in-lb).
• Reinstall the rubber protective boot over the B+ terminal.

Step 9: Reinstall the serpentine belt

• Route the belt correctly around all pulleys (use your photo as reference).
• Rotate the tensioner using the serpentine belt tool 14mm (specialty) or 14mm socket.
• Slip the belt onto the alternator pulley last, then slowly release the tensioner.
• Visually confirm the belt is seated in every pulley groove.

Step 10: Reinstall splash shield, wheel, and intake duct

• Reinstall the splash shield using a 10mm socket and trim clip removal tool.
• Reinstall the wheel using a 17mm socket.
• Lower the car off the jack stands using the floor jack.
• Torque wheel lug nuts to 103 Nm (76 ft-lb) using a torque wrench.
• Reinstall the intake duct and tighten clamps with a flathead screwdriver.

Step 11: Reconnect the battery

• Reconnect the negative (-) battery terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and confirm the charging/battery warning light turns off.
• Listen for belt squeal; if present, shut off and re-check belt seating on all pulleys.
• If you have a multimeter, check charging voltage at the battery with the engine running: typically ~13.5–14.7V.
• Take a short test drive and recheck for any loose clamps, clips, or abnormal noises.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,000 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$550 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2-3 hours.

---
