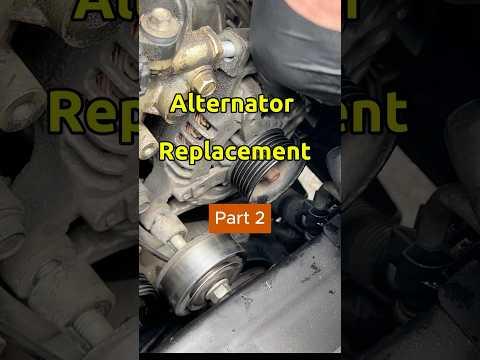

🔧 Malibu - Alternator Replacement

The alternator charges your battery and powers the electrical system while the engine runs. If it’s failing, you may see a battery light, dim lights, or a no-start after driving because the battery isn’t being recharged.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• 🔋 Disconnect the negative battery cable before touching the alternator wiring (prevents short circuits).
• 🔥 Let the engine cool; the exhaust and radiator area can burn you.
• 🧰 Support the car securely if you lift it—never rely on a jack alone.
• 👓 Wear safety glasses; belt tension and debris can snap/fall unexpectedly.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• 3/8" drive ratchet
• 3/8" drive breaker bar
• Serpentine belt tool, 3/8" drive (specialty)
• Socket set: 8mm, 10mm, 13mm, 15mm
• Wrench set: 10mm, 13mm
• Torque wrench (10–100 ft-lbs range)
• Flat trim tool
• Flashlight
• Multimeter (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (recommended if belt is cracked/glazed)
• Battery terminal anti-corrosion spray - Qty: 1 (optional)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Open the hood and make sure you have the radio code (if applicable) before disconnecting the battery.
• Disconnect the battery: use a 10mm wrench to remove the negative (-) cable and tuck it aside so it can’t spring back.
• Tip: Take a photo of belt routing first.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Make access (top side)

• Remove any intake duct/engine cover blocking access using an 8mm socket or flat trim tool (depending on what’s fitted).
• Use a flashlight to locate the alternator, belt, and electrical connections.

Step 2: Relieve serpentine belt tension

• Install a serpentine belt tool, 3/8" drive (specialty) into the belt tensioner. (A serpentine belt tool is a long handle made to rotate the spring-loaded tensioner safely.)
• Rotate the tensioner to release tension, then slide the belt off the alternator pulley.
• Slowly let the tensioner return—don’t let it snap back.

Step 3: Disconnect alternator electrical connectors

• Unplug the small regulator connector by pressing the tab and pulling it off by hand (do not pull on wires).
• Remove the rubber boot on the main power stud (B+).
• Use a 13mm socket to remove the B+ nut and lift the cable off the stud.
• Torque to 15 Nm (11 ft-lbs) when reinstalling the B+ nut.

Step 4: Remove alternator mounting bolts

• Support the alternator with one hand.
• Use a 15mm socket (or 15mm wrench if tight) to remove the alternator mounting bolts.
• Lift the alternator out from the top. If it’s tight, gently wiggle it free—don’t pry on plastic parts.

Step 5: Install the new alternator

• Compare the old and new alternator: same pulley grooves, same plug, same mounting ears.
• Set the alternator into place and hand-thread the mounting bolts to avoid cross-threading.
• Use a torque wrench with a 15mm socket to tighten mounting bolts: Torque to 50 Nm (37 ft-lbs).

Step 6: Reconnect alternator wiring

• Reinstall the main B+ cable and nut using a 13mm socket: Torque to 15 Nm (11 ft-lbs).
• Reinstall the rubber boot fully over the stud (important to prevent a short).
• Reconnect the small regulator plug until it clicks.

Step 7: Reinstall the serpentine belt

• Route the belt exactly like your photo/under-hood diagram.
• Use the serpentine belt tool, 3/8" drive (specialty) to rotate the tensioner and slip the belt back onto the alternator pulley.
• Double-check the belt is seated in every pulley groove (very important).

Step 8: Reassemble and reconnect the battery

• Reinstall any intake duct/cover using an 8mm socket or flat trim tool.
• Reconnect the negative battery cable using a 10mm wrench.

---

✅ After Repair

• Start the engine and confirm the battery/charging light is off.
• Use a multimeter (specialty) at the battery terminals: engine running should typically show about 13.8–14.7 volts.
• Listen for belt squeal and watch the belt for wobble (misrouting can cause this).
• Recheck the B+ boot is fully covering the power stud.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
