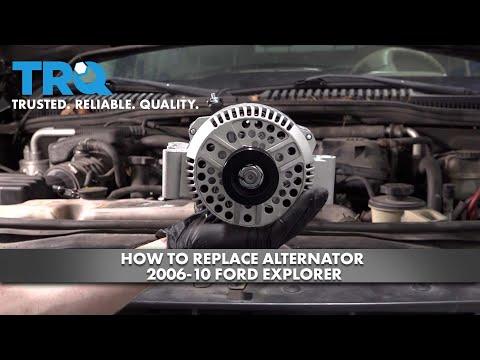

🔧 Explorer - Alternator Replacement

The alternator charges the battery and powers your Explorer’s electrical system while the engine is running. Replacing it involves disconnecting the battery, removing the serpentine belt, swapping the alternator, then verifying charging voltage.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent a short.
• ⚠️ Keep hands/tools away from the belt path; it can pinch hard.
• ⚠️ Work on a cool engine; the front of the engine gets very hot.
• ⚠️ Never allow the alternator main power wire to touch ground.
• ⚠️ Support the hood securely and keep loose clothing/hair back.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 13mm socket
• 15mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• Serpentine belt tool, 3/8" drive (specialty)
• Torque wrench (10–150 ft-lbs range)
• Flat trim tool
• Digital multimeter
• Shop light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1 (recommended if old/cracked)
• Battery terminal corrosion pads - Qty: 2

---

📋 Before You Begin

• 🅿️ Park on level ground, shift to Park, and set the parking brake.
• 📸 Take a quick photo of the serpentine belt routing (or find the routing sticker under the hood).
• 🔋 Open the hood and disconnect the battery: use a 10mm socket to remove the negative (-) terminal first, then move it aside so it can’t spring back.
• 🧠 If your radio has an anti-theft code (rare), make sure you have it before disconnecting the battery.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove intake ducting for access (if equipped)

• Use a flat trim tool to release any plastic clips holding the air inlet duct/resonator.
• Use a 10mm socket to loosen any hose clamps, then lift the ducting out of the way.

Step 2: Relieve serpentine belt tension

• Install the serpentine belt tool, 3/8" drive into the belt tensioner.
• Rotate the tensioner to relieve belt tension, then slide the belt off the alternator pulley.
• Tip: Only remove the belt from the alternator pulley first.

Step 3: Disconnect alternator electrical connections

• Unplug the alternator electrical connector by pressing the tab and pulling straight back (use your fingers; don’t yank the wires).
• Remove the rubber boot covering the main power stud.
• Use a 13mm socket to remove the nut on the B+ (main power) cable and move the cable aside.
• Torque to 15 Nm (11 ft-lbs) when reinstalling the B+ nut.

Step 4: Remove the alternator mounting bolts

• Use a 15mm socket with a 3/8" drive ratchet and extensions as needed to remove the alternator mounting bolts.
• Support the alternator with one hand as the last bolt comes out so it doesn’t drop or hit the radiator area.

Step 5: Remove the alternator

• Lift the alternator out of the engine bay carefully.
• If it feels stuck, gently wiggle it while pulling up—avoid prying on plastic parts.

Step 6: Install the new alternator

• Set the new alternator into position and hand-start all mounting bolts to avoid cross-threading.
• Use a 15mm socket to tighten the alternator mounting bolts.
• Torque to 41 Nm (30 ft-lbs) for alternator mounting bolts.

Step 7: Reconnect alternator wiring

• Reinstall the main power cable on the B+ stud and tighten using a 13mm socket.
• Torque to 15 Nm (11 ft-lbs) for the B+ nut, then reinstall the rubber boot.
• Plug in the alternator connector until it clicks.

Step 8: Reinstall the serpentine belt

• Route the belt according to the under-hood routing diagram.
• Use the serpentine belt tool, 3/8" drive to rotate the tensioner, then slip the belt onto the alternator pulley.
• Visually confirm the belt ribs are fully seated in every pulley groove.

Step 9: Reinstall intake ducting

• Reinstall any intake ducting/resonator you removed.
• Use a 10mm socket to tighten clamps and secure clips.

Step 10: Reconnect the battery

• Reconnect the negative (-) battery terminal using a 10mm socket.
• Torque to 7 Nm (62 in-lbs) for the battery terminal clamp.

---

✅ After Repair

• 🔎 Start the engine and confirm the battery warning light turns off.
• 📏 Use a digital multimeter at the battery terminals: engine running should read about 13.5–14.7V.
• 🎧 Listen for belt squeal; if present, re-check belt routing and seating.
• 🧼 If you saw corrosion on the battery terminals, clean and install battery terminal corrosion pads.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $160-$420 (parts only)

You Save: $290-$430 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
