🔧 Tacoma - Alternator Replacement

Your alternator charges the battery and powers the electrical system while the engine runs. Replacing it on your Tacoma is mainly about safely disconnecting the battery, removing the drive belt from the alternator pulley, then swapping the alternator and reconnecting the wiring.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent an electrical short.
• ⚠️ Let the engine cool; you’ll be working near hot metal parts.
• ⚠️ Keep fingers clear of the belt and pulleys while releasing belt tension.
• ⚠️ Never allow the alternator’s main power wire to touch ground/metal.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" drive ratchet
• 3/8" drive extension set
• 14mm combination wrench
• Torque wrench (10–80 ft-lbs range)
• Trim clip removal tool
• Serpentine belt tool (specialty)
• Digital multimeter
• Fender cover

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Battery terminal anti-corrosion pads - Qty: 2

---

📋 Before You Begin

• 🧰 Park on level ground, shift to Park, and set the parking brake.
• 🧰 Open the hood and install a fender cover to protect paint.
• 🧰 Take a quick photo of the belt routing (or look for the belt routing sticker under the hood).
• 🧰 Disconnect the battery: use a 10mm socket to remove the negative (–) terminal first, then position it so it can’t spring back to the post.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the air intake duct (for access)

• Use a 10mm socket to loosen the hose clamps on the intake duct.
• Use a trim clip removal tool to pop any plastic clips holding the duct/resonator in place.
• Lift the duct out and set it aside so you can clearly reach the alternator.

Step 2: Relieve belt tension and slip the belt off the alternator pulley

• Locate the belt tensioner. The tensioner is a spring-loaded arm that keeps the belt tight automatically.
• Use a serpentine belt tool (specialty) (or a 14mm combination wrench if it fits) on the tensioner drive hex and rotate it to release belt tension.
• While holding tension off, slip the belt off the alternator pulley only, then slowly let the tensioner return. Move slowly to avoid pinched fingers.

Step 3: Disconnect alternator electrical connections

• Unplug the alternator electrical connector by pressing the tab and pulling straight back.
• Remove the rubber protective boot from the alternator main power stud.
• Use a 12mm socket to remove the B+ terminal nut and lift the cable off the stud.
• Reinstall the nut a few turns on the stud so it doesn’t get lost.

Step 4: Remove the alternator mounting bolts

• Support the alternator with one hand so it doesn’t drop when bolts come out.
• Use a 14mm socket with a 3/8" drive ratchet and extension set to remove the alternator mounting bolts.
• Lift the alternator out of the engine bay. If it feels stuck, gently wiggle it free—don’t pry on plastic parts.

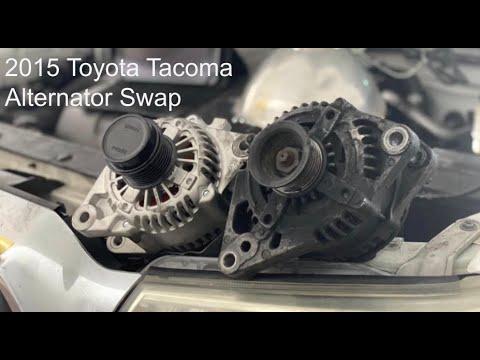

Step 5: Install the new alternator

• Set the new alternator into place and hand-start the mounting bolts to avoid cross-threading.
• Use a 14mm socket to snug the bolts evenly.
• Use a torque wrench (10–80 ft-lbs range) to tighten alternator mounting bolts: Torque to 44 Nm (32 ft-lbs).

Step 6: Reconnect alternator wiring

• Install the main power cable onto the B+ stud.
• Use a 12mm socket and torque wrench to tighten the B+ terminal nut: Torque to 9 Nm (80 in-lbs).
• Reinstall the rubber protective boot fully over the stud.
• Plug the alternator connector in until it clicks.

Step 7: Reinstall the belt and set tension

• Route the belt correctly on all pulleys (use your photo/routing sticker).
• Use the serpentine belt tool (specialty) to rotate the tensioner again and slip the belt fully onto the alternator pulley.
• Release the tensioner slowly and visually confirm the belt is seated in every pulley groove. One rib off can shred the belt.

Step 8: Reinstall the air intake duct and reconnect the battery

• Reinstall the intake duct and tighten clamps using a 10mm socket.
• Install battery anti-corrosion pads if you’re using them.
• Reconnect the battery negative terminal using a 10mm socket: Torque to 5 Nm (44 in-lbs).

---

✅ After Repair

• ✅ Start the engine and confirm the battery/charging warning light is off.
• ✅ Use a digital multimeter at the battery terminals: engine running should typically read about 13.5–14.8 volts.
• ✅ Listen for belt squeal and watch the belt for wobble; shut off immediately if it walks off a pulley.
• ✅ Recheck the B+ nut and mounting bolts for tightness after a short test drive.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$1,000 (parts + labor)

DIY Cost: $200-$550 (parts only)

You Save: $350-$450 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
