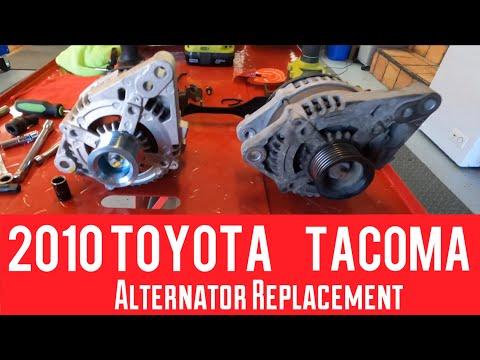

🔧 Tacoma - Alternator Replacement

The alternator charges your battery and powers electrical systems while the engine runs. Replacing it on your Tacoma is mostly about gaining access, releasing the serpentine belt, swapping the alternator, and verifying charging voltage afterward.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable first to prevent short circuits.
• ⚠️ Keep hands/tools away from the belt path and fan area.
• ⚠️ Let the engine cool before working near the radiator and exhaust.
• ⚠️ If you raise the truck, support it with jack stands on solid, level ground.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 10mm socket
• 12mm socket
• 14mm socket
• 3/8" ratchet
• 3/8" extension set
• Breaker bar 3/8"
• Torque wrench (10-80 ft-lbs)
• Flathead screwdriver
• Needle-nose pliers
• Digital multimeter
• Magnetic pickup tool
• Serpentine belt tool (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine belt - Qty: 1
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, shift to Park, and set the parking brake.
• Place wheel chocks behind the rear wheels.
• Open the hood and remove any loose jewelry/metal items.
• Disconnect the battery: use a 10mm socket to remove the negative (-) cable and tuck it aside so it can’t spring back.
• Take a quick photo of the belt routing.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Remove the intake ducting (for access)

• Use a flathead screwdriver or 10mm socket to loosen the hose clamps on the intake duct.
• Unclip/unplug anything attached to the duct (use needle-nose pliers for spring clamps if equipped).
• Lift the duct out and set it aside.

Step 2: Release the serpentine belt tension

• Locate the belt tensioner (spring-loaded pulley assembly at the front of the engine).
• Use a 14mm socket with a breaker bar 3/8" (or serpentine belt tool (specialty)) on the tensioner hex.
• Rotate the tensioner to relieve belt tension, then slide the belt off the alternator pulley.
• Slowly let the tensioner return to its rest position (don’t let it snap back).

Step 3: Disconnect alternator electrical connections

• On the back of the alternator, unplug the small electrical connector by pressing the tab (use a flathead screwdriver gently if the tab is stubborn).
• Remove the rubber boot over the main power stud (B+).
• Use a 10mm socket to remove the B+ nut and lift the cable off the stud.
• Keep the nut somewhere safe; it’s easy to lose.

Step 4: Remove the alternator mounting bolts

• Support the alternator with one hand.
• Use a 14mm socket with a 3/8" ratchet and extensions to remove the upper mounting bolt.
• Use a 14mm socket to remove the lower mounting bolt (this one may be tighter; use the breaker bar 3/8" if needed).
• Lift the alternator up and out of the engine bay.

Step 5: Install the new alternator

• Position the new alternator in place and start the mounting bolts by hand to avoid cross-threading.
• Tighten the alternator mounting bolts using a 14mm socket, then use a torque wrench (10-80 ft-lbs) to finish.
• Torque to 37 N·m (27 ft-lbs) for the alternator mounting bolts.

Step 6: Reconnect alternator wiring

• Install the main power cable onto the B+ stud and thread the nut on by hand.
• Use a 10mm socket and then a torque wrench (10-80 ft-lbs) to tighten the B+ nut.
• Torque to 9 N·m (80 in-lbs) for the B+ terminal nut.
• Apply a small amount of dielectric grease to the connector seal (not the metal pins), then plug the connector in until it clicks.
• Reinstall the rubber boot over the B+ terminal.

Step 7: Reinstall the serpentine belt

• Route the belt according to the under-hood diagram (or your photo).
• Use a 14mm socket with a breaker bar 3/8" (or serpentine belt tool (specialty)) to rotate the tensioner again.
• Slip the belt fully onto the alternator pulley, then slowly release the tensioner.
• Visually confirm the belt ribs are seated in every grooved pulley.

Step 8: Reinstall the intake ducting

• Reinstall the intake duct and any hoses/clips you removed.
• Use a 10mm socket or flathead screwdriver to tighten the hose clamps snug.

Step 9: Reconnect the battery

• Reconnect the negative (-) battery cable using a 10mm socket.
• Torque to 5 N·m (44 in-lbs) for the battery terminal clamp nut.

---

✅ After Repair

• Start the engine and listen for belt squeal or slapping (misrouting can cause this).
• Use a digital multimeter at the battery posts:
  • Engine off: about 12.4–12.7V is normal for a healthy battery.
  • Engine idling: typically 13.5–14.8V indicates the alternator is charging.
• Turn on headlights and blower motor; charging voltage should stay roughly in the 13.5–14.8V range.
• Recheck that the B+ boot is on and the belt is centered on every pulley.

---

💰 DIY vs Shop Cost

Shop Cost: $550-$950 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $370-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
