🔧 Accord - Alternator Replacement

Your alternator charges the battery and powers the electrical system while the engine runs. If it’s failing, you may get a battery light, dim lights, or a no-start after driving. On your Accord, access is easiest from the passenger-side wheel well.

Difficulty Level: Intermediate | Estimated Time: 1.5-3 hours

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the battery negative terminal first to prevent a short.
• ⚠️ Let the engine cool; the exhaust and radiator area can burn you.
• ⚠️ Support the car on jack stands; never rely on a jack alone.
• ⚠️ Keep fingers clear of the belt and pulleys when releasing tension.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• 19mm socket
• 3/8" drive ratchet
• 1/2" drive breaker bar
• 10mm socket
• 12mm socket
• 14mm socket
• 6" socket extension
• 12" socket extension
• Torque wrench (10-100 ft-lbs range)
• Flat trim clip tool
• Small flathead screwdriver
• Multimeter

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Alternator - Qty: 1
• Serpentine drive belt - Qty: 1
• Fender liner / splash shield clips - Qty: 1 set
• Dielectric grease - Qty: 1

---

📋 Before You Begin

• Park on level ground, put the transmission in 1st gear, and set the parking brake.
• Chock the rear wheels using wheel chocks.
• If your Accord has an anti-theft radio, make sure you have the radio code before disconnecting the battery.
• Disconnect the battery using a 10mm socket: remove negative (-) first, then positive (+) if you need more room.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise the front passenger side and remove the wheel

• Use a 19mm socket to loosen the lug nuts 1 turn while the car is on the ground.
• Lift the front passenger side using a floor jack (rated 3-ton minimum), then support it with jack stands (rated 3-ton minimum).
• Remove the lug nuts with a 19mm socket and take the wheel off.

Step 2: Remove the passenger-side splash shield (inner fender liner)

• Use a flat trim clip tool to pop out the plastic clips.
• Use a 10mm socket to remove any small bolts holding the liner.
• Pull the liner back to expose the belt, alternator area, and crank pulley. Keep clips in a small cup.

Step 3: Relieve belt tension and slip the belt off the alternator

• Use a 14mm socket on the belt tensioner bolt and rotate the tensioner to release tension.
• While holding tension off, slide the belt off the alternator pulley by hand.
• Slowly release the tensioner back to its resting position.
• Take a quick photo of belt routing.

Step 4: Disconnect the alternator wiring

• Unplug the alternator electrical connector by pressing the tab using a small flathead screwdriver gently (don’t break the lock tab).
• Remove the rubber boot from the alternator B+ terminal.
• Use a 10mm socket to remove the B+ terminal nut, then lift the cable off and tuck it aside.

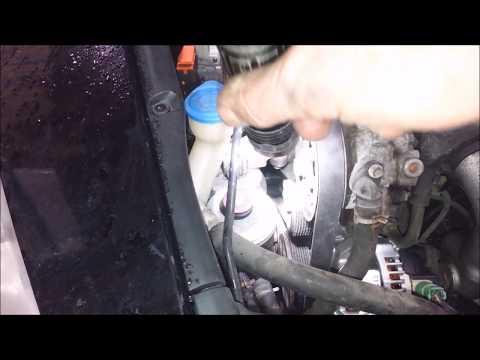

Step 5: Remove the alternator mounting bolts

• Use a 12mm socket and 3/8" drive ratchet (plus a 6" socket extension as needed) to remove the upper mounting bolt.
• Use a 14mm socket and breaker bar to loosen the lower mounting bolt, then remove it with a 3/8" drive ratchet.
• Work the alternator out through the wheel well opening (you may need to rotate it to clear the bracket).

Step 6: Install the new alternator

• Position the new alternator in place through the wheel well.
• Start the lower bolt by hand first (this prevents cross-threading), then start the upper bolt by hand.
• Tighten the alternator bolts using a torque wrench:
• Torque the alternator upper mounting bolt to 44 N·m (33 ft-lbs)
• Torque the alternator lower mounting bolt to 44 N·m (33 ft-lbs)

Step 7: Reconnect the alternator wiring

• Apply a thin wipe of dielectric grease to the connector seal (not the metal pins).
• Reconnect the alternator plug until it clicks.
• Reinstall the B+ cable and nut using a 10mm socket.
• Torque the B+ terminal nut to 9 N·m (80 in-lbs)
• Reinstall the rubber boot over the B+ terminal.

Step 8: Reinstall the serpentine belt

• Route the belt correctly around all pulleys (use your photo).
• Use a 14mm socket to rotate the tensioner and slip the belt onto the alternator pulley.
• Release the tensioner slowly and confirm the belt is seated fully in every pulley groove.

Step 9: Reinstall the splash shield and wheel

• Reposition the liner and install fasteners using a 10mm socket and flat trim clip tool.
• Reinstall the wheel and hand-thread the lug nuts.
• Lower the car off the jack stands using the floor jack (rated 3-ton minimum).
• Tighten lug nuts in a star pattern using a torque wrench.
• Torque the wheel lug nuts to 108 N·m (80 ft-lbs)

Step 10: Reconnect the battery

• Reconnect the battery terminals using a 10mm socket: positive (+) first, then negative (-).
• Torque the battery terminal nuts to 5 N·m (44 in-lbs)

---

✅ After Repair

• Start the engine and confirm the battery warning light goes out.
• Use a multimeter at the battery with the engine idling: you should typically see about 13.8V–14.7V.
• Turn on headlights and rear defrost; voltage should stay above roughly 13.3V.
• Listen for belt squeal; if it squeals, re-check belt routing and that it’s seated in all grooves.
• Reset the clock/radio presets if needed.

---

💰 DIY vs Shop Cost

Shop Cost: $450-$850 (parts + labor)

DIY Cost: $180-$450 (parts only)

You Save: $270-$400 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-2.5 hours.

---
